Removing and installing the processor air duct
To remove and install the processor air duct, do the following:
Important: Always operate your storage system with the processor air duct in
place. The air duct is required to maintain proper cooling of the processors.:
Removing the processor air duct
To remove the processor air duct, do the following:
Attention: Before performing any maintenance on the system, back up the data.
Follow the instructions in the Secure Managed Client - Storage Array User Guide for
turning off the system.
1.
Observe all safety and ESD precautions in the Safety and Warranty Guide.
2.
Turn off all peripheral devices connected to the storage system. Turn off the
storage system.
3.
Disconnect the AC power cord(s).
4.
Remove the enclosure cover. For instructions, see “Removing the enclosure
cover” on page 6.
5.
Lift the processor air duct from its location over the processor sockets.

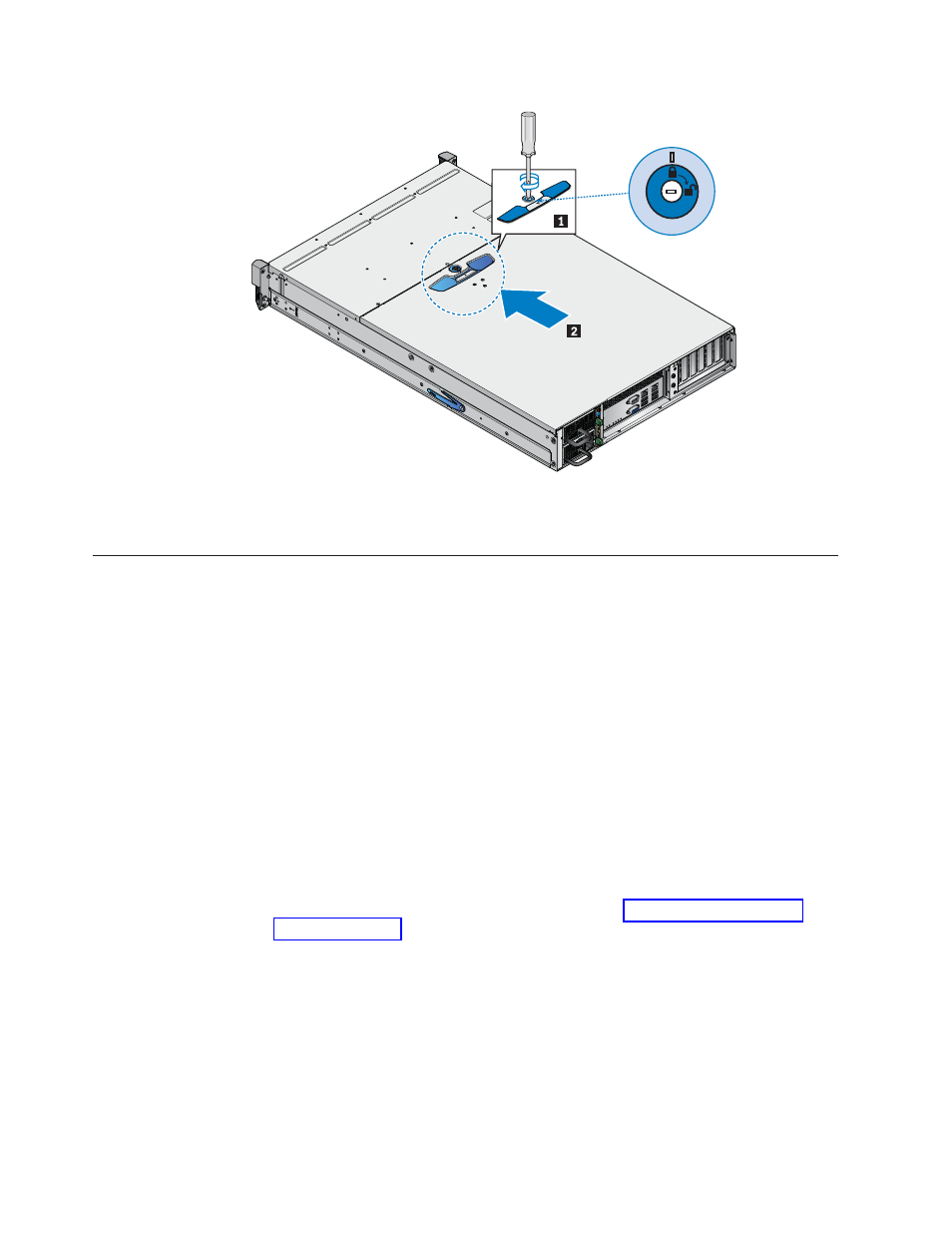

Figure 3. Installing enclosure cover
8 Secure Managed Client (SMC) - Storage Array Hardware Installation and Replacement Guide
