4.

Inspect

the

new

fan

for

any

damage.

Do

not

install

it

if

there

are

any

visible

signs

of

damage.

5.

Install

the

fan

by

pushing

it

down

into

the

empty

fan

slot

until

it

is

even

with

the

other

fans.

Be

sure

that

the

fan

LED

turns

off

within

10

seconds

of

installation.

When

properly

installed,

the

fan

will

plug

into

the

enclosure

management

PCB.

Ensure

that

the

fan

LED

extinguishes

within

10

seconds

of

installation.

6.

Slide

the

enclosure

cover

(see

2

in

the

following

figure)

until

it

is

closed,

and

then

turn

the

lock

mechanism

to

the

“locked”

position

(see

1 ).

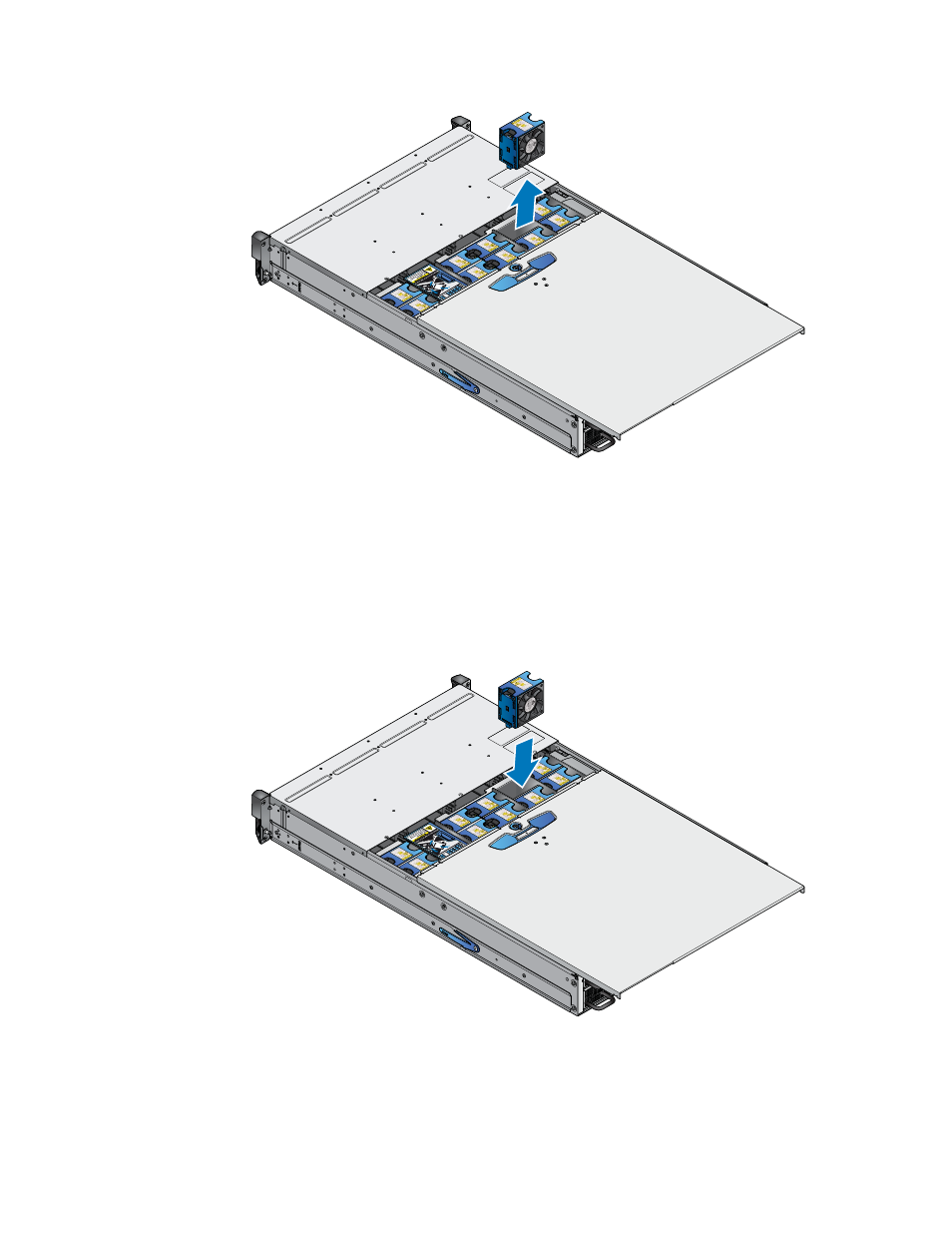

Figure

12.

Removing

the

cooling

fan

Figure

13.

Installing

a

cooling

fan

16

Secure

Managed

Client

(SMC)

-

Storage

Array

Hardware

Installation

and

Replacement

Guide
