Norgren U.L. Listed Beverage Regulators - Manual (Page 8)

R81, C81 Beverage Regulators
Littleton, CO USA Phone 303-794-2611 Fax 303-795-9487 ALE-12-8

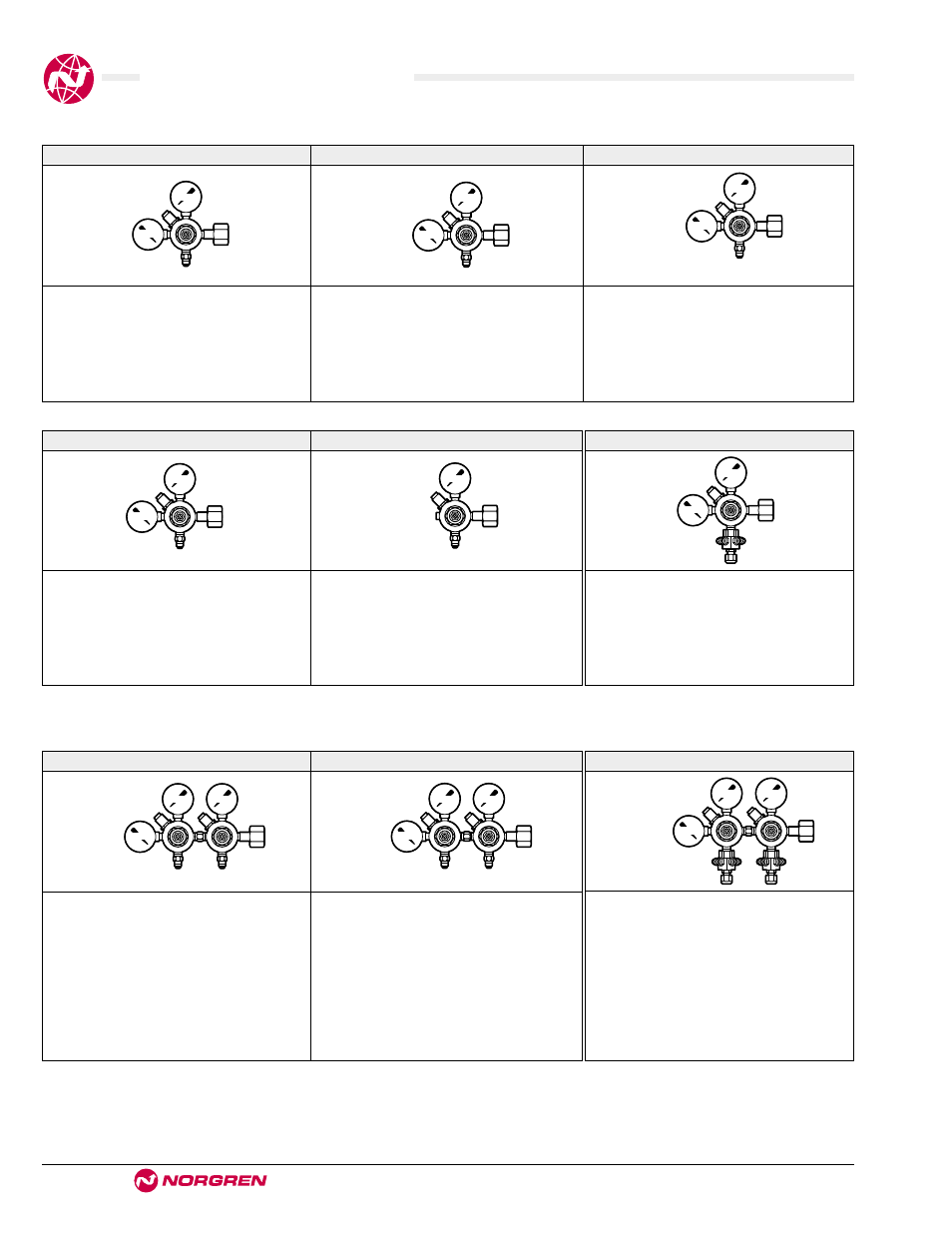

Model C81-700 (One Outlet) Model C81-702 (One Outlet) Model C81-651 (One Outlet)
Model C81-700 Includes: Model C81-702 Includes: Model C81-651 Includes:
● R81-200-LNKA regulator (1) ● R81-200-LNKA regulator (1) ● R81-200-LNKA regulator (1)
● 18-013-244 (2000 psi) inlet pressure gauge (1)) ● 18-013-244 (2000 psi) inlet pressure gauge (1) ● 18-013-244 (2000 psi) inlet pressure gauge (1)
● 18-013-085 (160 psi) outlet pressure gauge (1) ● 18-013-084 (100 psi) outlet pressure gauge (1) ● 18-013-084 (100 psi) outlet pressure gauge (1)
● 18-008-002 cylinder connector (1) ● 18-008-002 cylinder connector (1) ● 18-008-002 cylinder connector (1)
● 16-009-001 check valve (1) ● 16-009-001 check valve (1) ● 16-009-002 check valve (1)
160
2000
Model C81-269 (One Outlet) Model C81-684 (One Outlet)
Model C81-269 Includes: Model C81-684 Includes:
● R81-200-LNEA regulator (1) ● R81-200-LNKA regulator (1)
● 18-013-244 (2000 psi) inlet pressure gauge (1) ● 2891-97 pipe plug (1)
● 18-013-083 (60 psi) outlet pressure gauge (1) ● 18-013-085 (160 psi) outlet pressure gauge (1)
● 18-008-002 cylinder connector (1) ● 18-008-002 cylinder connector (1)
● 16-009-001 check valve (1) ● 16-009-001 check valve (1)
Model C81-685 (Two or Three Outlets)
Model C81-685 Includes:
● R81-200-LNKA regulator (1)
● 18-013-244 (2000 psi) inlet pressure gauge (1)
● 18-013-085 (160 psi) outlet pressure gauge (1)
● 18-008-002 cylinder connector (1)
● 3228-54 manifold (1)
100
2000
100
2000
160 60
2000
160
2000
Cylinder Connected, Two Regulator Configurations
Cylinder Connected, One Regulator Configurations
Model C81-254 (Two Outlets) Model C81-652 (Two Outlets)
Model C81-254 Includes: Model C81-652 Includes:
● R81-200-LNEA regulator (1) ● R81-200-LNKA regulator (2)
● R81-200-LNKA regulator (1) ● 18-013-244 (2000 psi) inlet pressure gauge (1)
● 18-013-244 (2000 psi) inlet pressure gauge (1) ● 18-013-084 (100 psi) outlet pressure gauge (2)
● 18-013-083 (60 psi) outlet pressure gauge (1) ● 18-006-067 hex nipple (1)
● 18-013-085 (160 psi) outlet pressure gauge (1) ● 18-008-002 cylinder connector (1)
● 18-006-067 hex nipple (1) ● 16-009-002 check valve (2)
● 18-008-002 cylinder connector (1)
● 16-009-001 check valve (2)
Model C81-573 (Four to Six Outlets)
Model C81-573 Includes:
● R81-200-LNKA regulator (2)
● 18-013-244 (2000 psi) inlet pressure gauge (1)
● 18-013-085 (160 psi) outlet pressure gauge (2)
● 18-006-067 hex nipple (1)
● 18-008-002 cylinder connector (1)
● 3228-55 manifold (2)
100 100
2000
160 60
2000
160
2000
160
2 to 50 psig range†
5 to 100 psig range† 5 to 100 psig range† 5 to 100 psig range†
2 to 50 psig range† 5 to 100 psig range† 5 to 100 psig range†
5 to 100 psig range† 5 to 100 psig range† 5 to 100 psig range†
