MH3E-E-A2 - 31 -

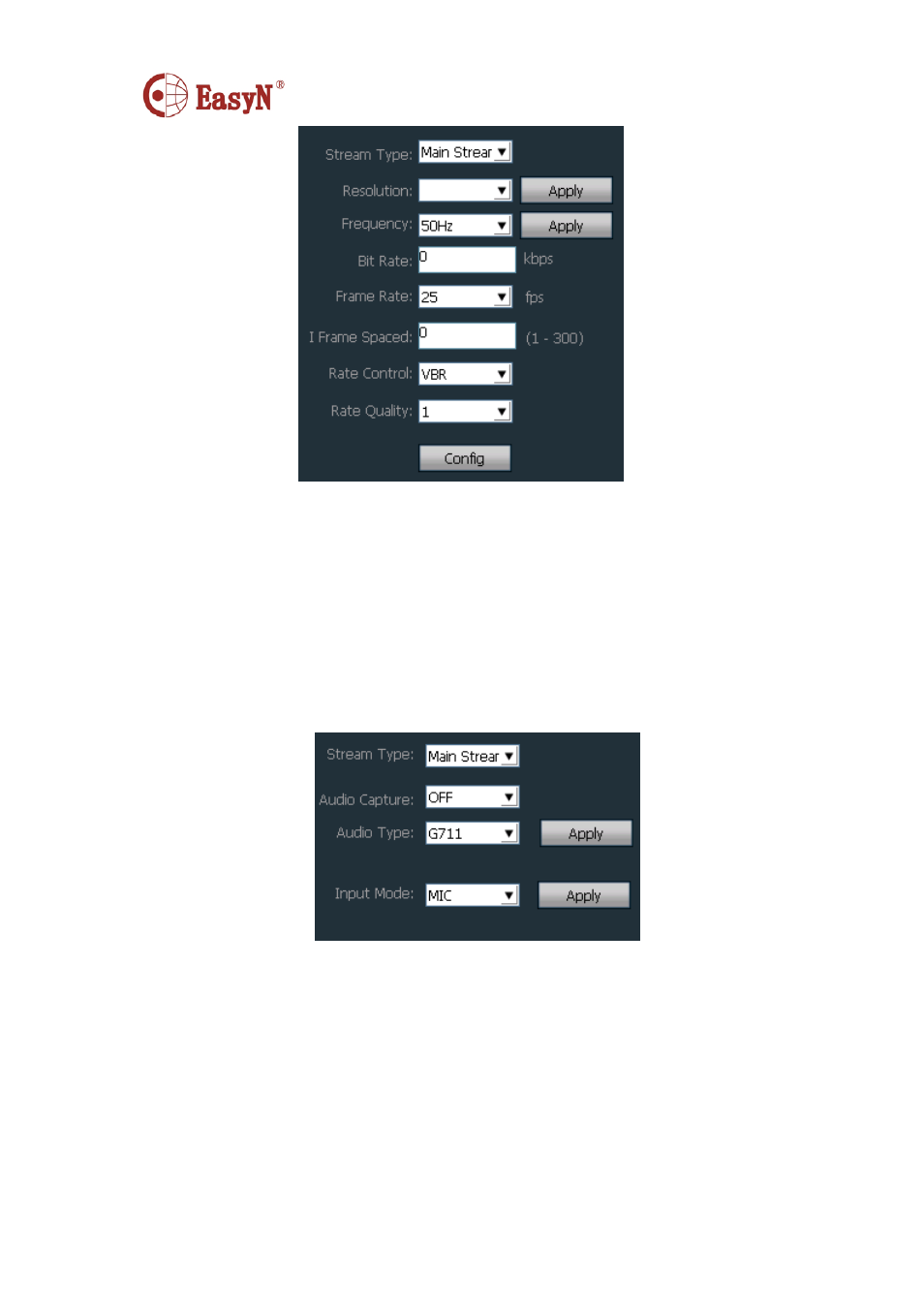

【 Stream Type 】 support main stream and second stream
【 Resolution 】 different resolution for different model
【 Frequency 】 support 50Hz and 60Hz, default is 50Hz
【 Bit Rate 】 different bit rate for different model
【 Frame Spaced 】 N standard or 60Hz device has range 1-30fps, P standard or
50Hz device has range 1-25fps
【 I Frame Spaced 】 the interval of two I frame of image
【 Rate Control 】 support VBR and CBR
【 Rate Quality 】 support 6 levels, lower level with better quality
i. Audio
【 Stream Type 】 support main stream and second stream
【 Audio Capture 】 ON or OFF
【 Audio Type 】 G727, G711 and AMR
【 Input Mode 】 MIC or Line In
ii. OSD
