2.5.1 Setup Window
The evaluation software provides access to the common CS5484's internal registers through the Setup
Window (see Figure 19). The user can access the Setup Window by selecting the Setup CS5484 item
from the System menu.

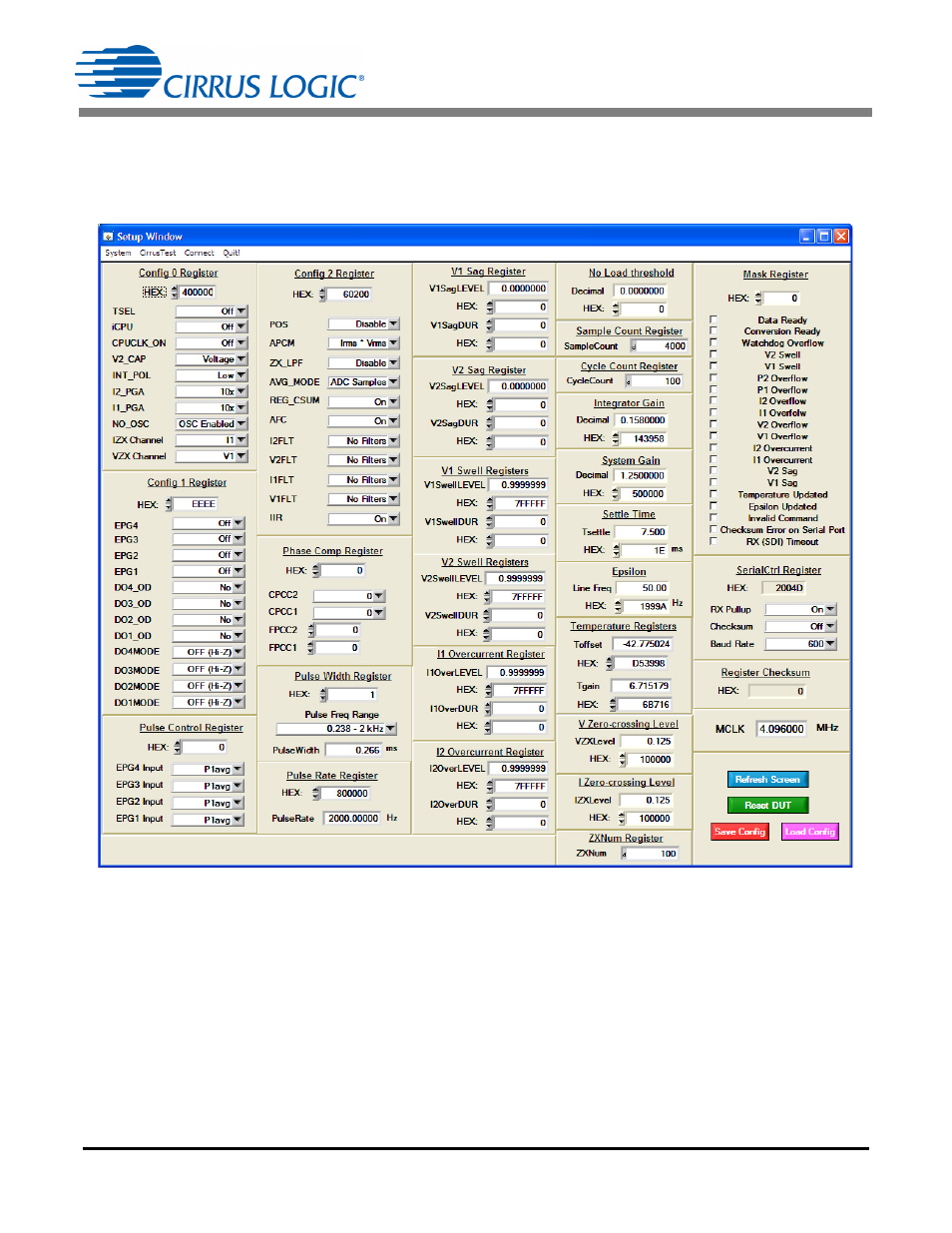

Figure 19. Setup Window
The Setup Window displays all of the common CS5484 registers in hexadecimal notation and are decod-
ed to provide easier readability. Refer to the CS5484 data sheet for information on register functionality
and definitions. The Setup Window is segmented by function. Each subsection may contain more than
one CS5484 register in order to configure a particular function. Updating the hexadecimal value of a reg-
ister will change the definitions display according to the new hexadecimal value of the register(s). Like-
wise, updating the definitions displayed from the list boxes will update the hexadecimal value(s) of the
associated register(s).
