1.6.2 Current Transformer Power Meter Example
A slightly more expensive option is to use a current transformer (CT) to connect the AC current to the
CDB5484U evaluation board. Figure 7 depicts the voltage and current connections for a CT sensor and
its associated filter configurations.
NEVER “open circuit” a CT. Make sure that all signals are well connected before the power source is
turned on. Extreme care should be taken when connecting high-voltage signals to the CDB5484U evalu-
ation board.
The burden resistor (R11/R22) is necessary in a CT application to convert the secondary current into volt-
age. Knowledge of the current transformers turns ratio (N) is key to determining the proper CS5484 input
voltage (V
burden
) that the meter places on the system. The optimum secondary voltage (V
burden
) at the
maximum current input should be 10% less than the maximum channel voltage of 250mVp with I-channel
PGA = 10x. The secondary voltage (V
burden
) is determined by converting the primary current to the sec-
ondary current. Then the secondary current (I
burden
) can be converted into a voltage by Ohm's Law.
The secondary voltage (V
burden
) is sourced to the CS5484 through a simple low-pass, anti-alias filter, and
this voltage should not exceed the 250mVp.

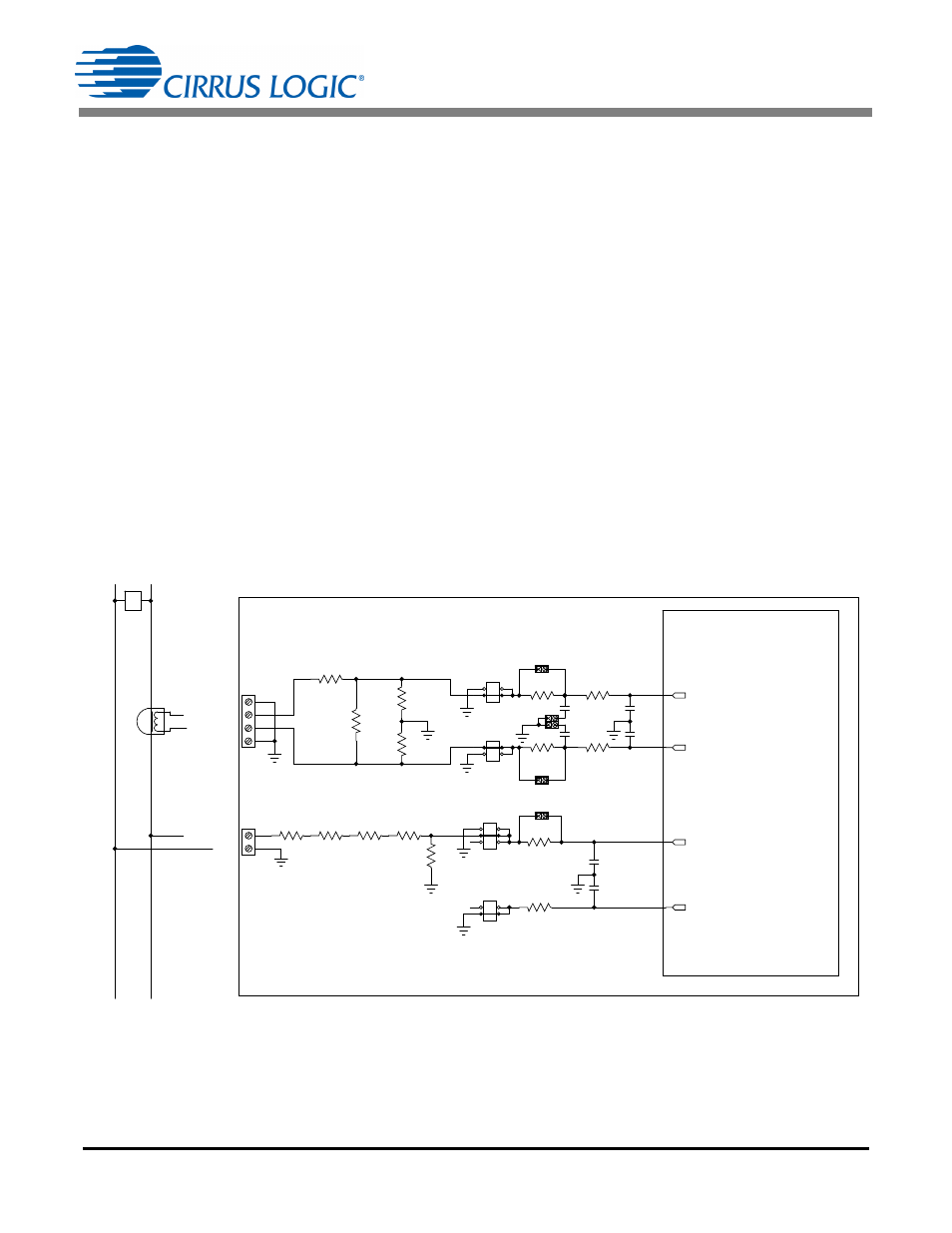

Figure 7. Current Transformer Power Meter
