CDB5484U
DS919DB5 19
2.4.2 CS5484 Serial Port Config Item
In the Connect menu, the CS5484 Serial Port Config item allows the user to select different types of serial
communication — UART or SPI (see Figure 14).

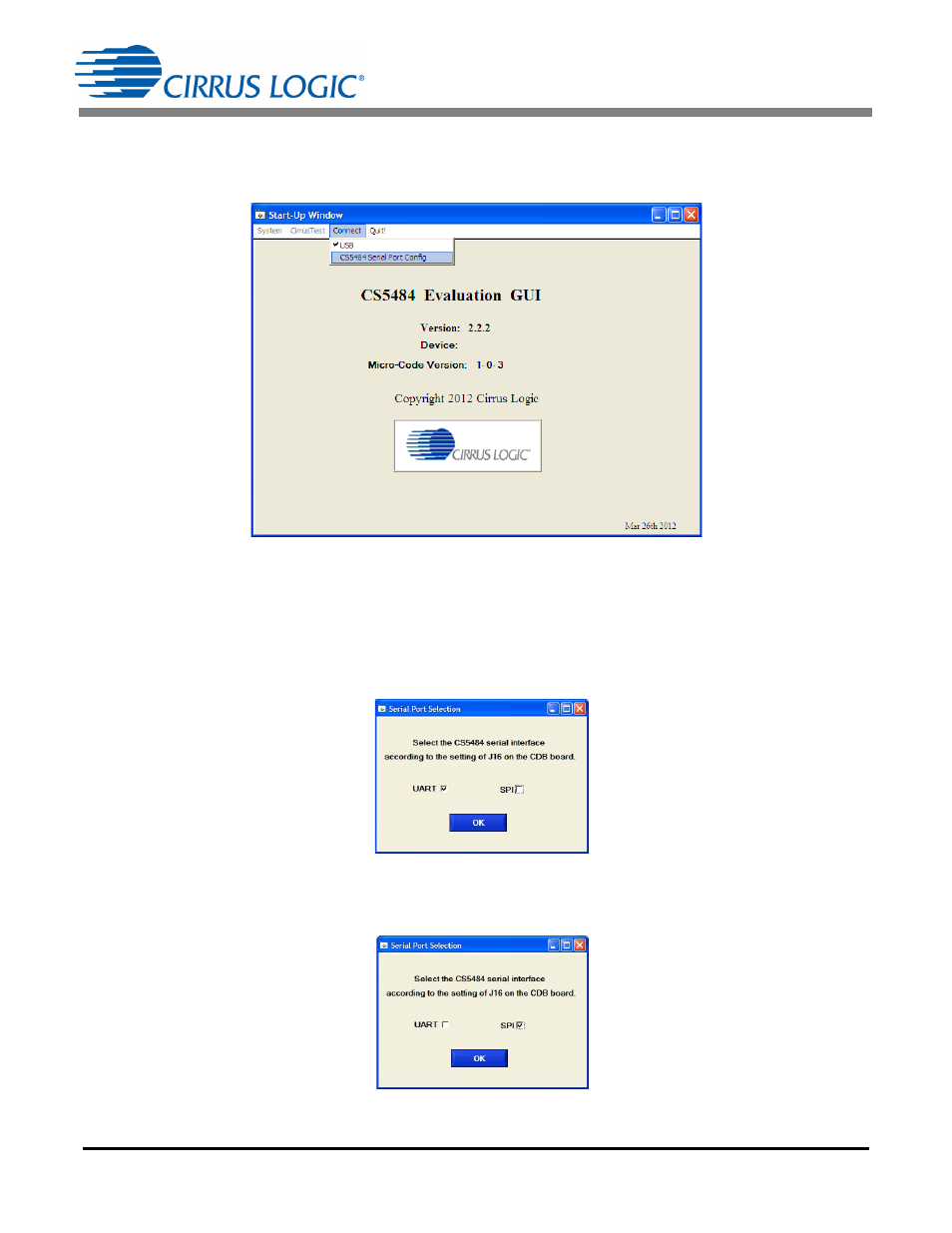

Figure 14. Connect Menu Showing Serial Connection Options
Before the software is configured, it is necessary to set jumper J16 on the CDB5464U board to either the
UART or SPI communication. To select UART communication, install jumper J16 in the SSEL to UART
position. To select SPI communication install jumper J16 in the SSEL to SPI position.
To select UART communications, position jumper J16 to the SSEL to UART position, and select UART in
the Serial Port Selection window (see Figure 15).
Figure 15. UART Serial Port Selection Window, UART Selected
To select SPI communications, position jumper J16 to the SSEL to SPI position, and select SPI in the Se-
rial Port Selection window (see Figure 16).
Figure 16. SPI Serial Port Selection Window, SPI Selected
