Programming the DSP on the CK49x Evaluation Board
CK49x User’s Manual
DS898CK7
Copyright 2012 Cirrus Logic, Inc
4-2

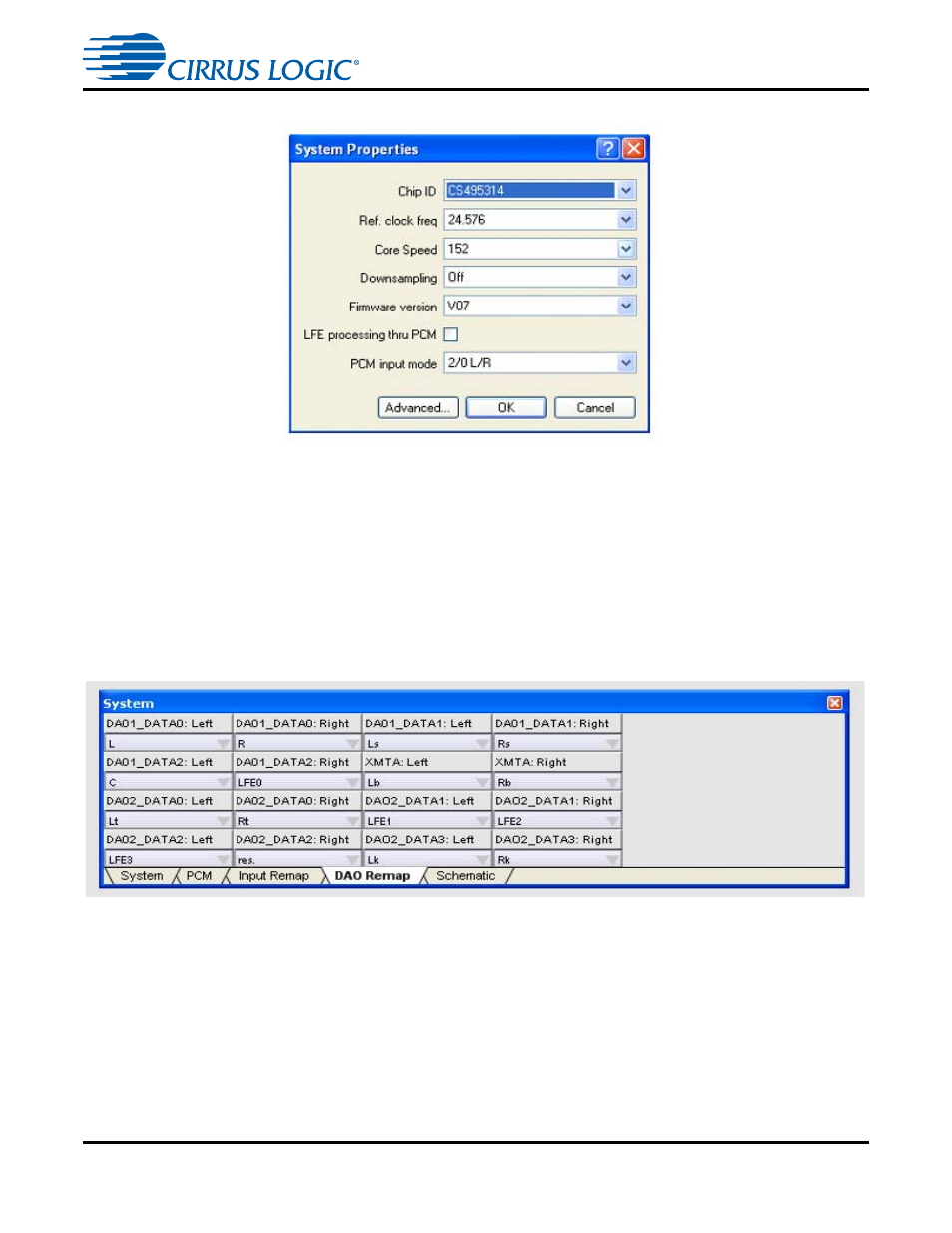

Figure 4-2. System Properties Showing CS495314 as the Chip ID
4.2.2 Channel Remap of the DSP
The audio output channels of the DSP can be mapped by double-clicking on the System block in DSP
Composer
In DSP Composer, select the DAO remap tab as illustrated in
and click on the DAO1 Combo
Box to select the internal channel to route to DA01 channel.
Figure 4-3. CK49x DAO Channel Remap
