Audio Clocking
CDB47xxx User’s Manual
DS886DB11 Copyright 2014 Cirrus Logic, Inc 1-16
1.5.3 Clock and Data Flow for DAI Input with Fixed Output Fs

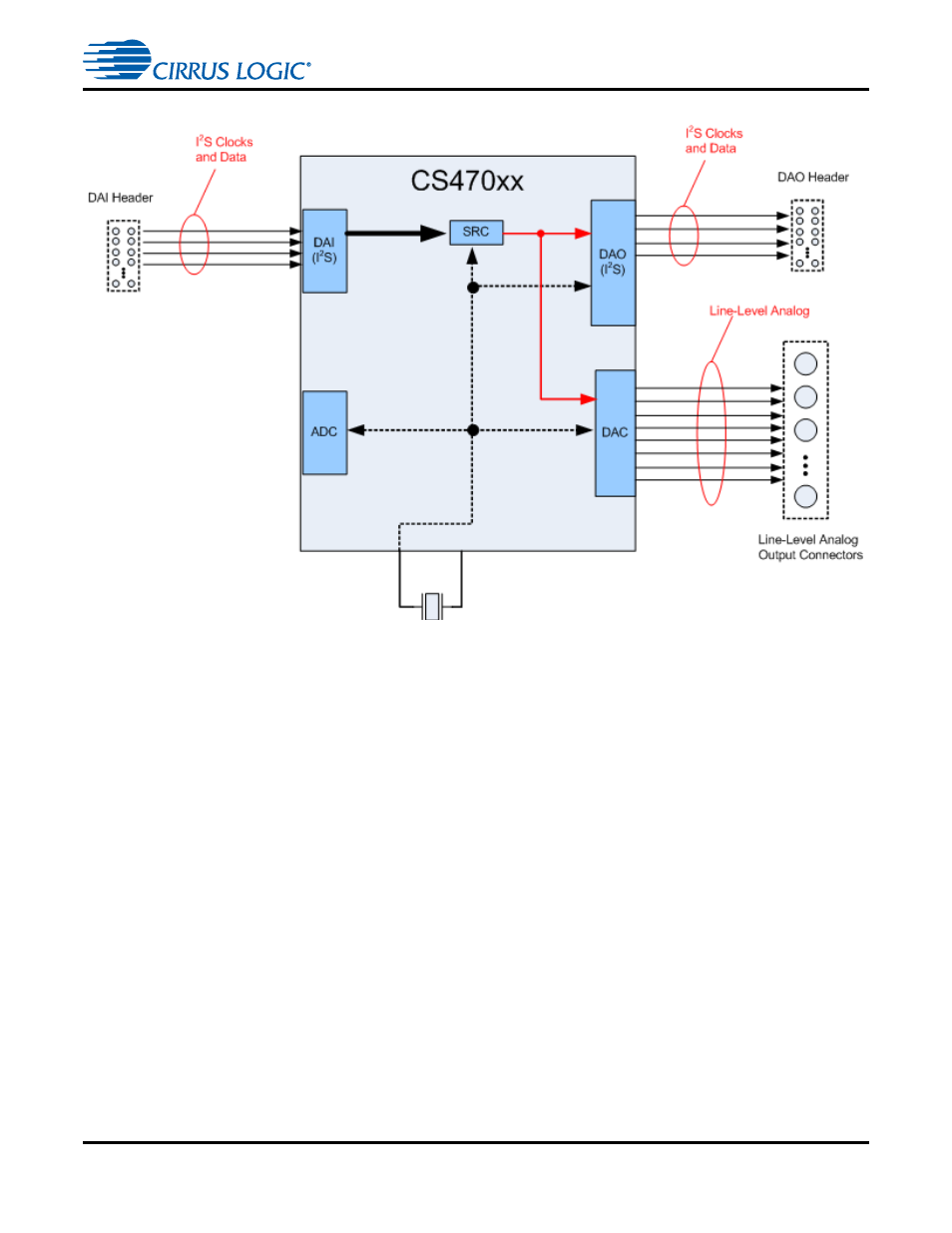

Figure 1-10. DAI Clocking with Variable Input Fs and Fixed Output Fs
The DAI clocking architecture is used when any serial audio data source is connected to the DAI header.
Figure 1-10 illustrates this clocking configuration. Note that the incoming DAI data is passed out of the
CS470xx at the Fs of the crystal connected to the ASOC.
Like the S/PDIF clocking configuration, this allows the DAI to be rate matched to another MCLK in the
system through an SRC. This means that the DAO can be run at a constant Fs that is independent of the
incoming DAI Fs. This is useful in systems with a digital amplifier that requires a fixed Fs.
The CS470xx can masters its output clocks, or slave to clocks from another source.
