CDB47xxx Main Board System Description
CDB47xxx User’s Manual
DS886DB11 Copyright 2014 Cirrus Logic, Inc 1-4
1.3 CDB47xxx Main Board System Description
A detailed block diagram of the CDB47xxxS Development Board is shown in
Figure 1-3 . The block diagram of the CDB47xxxD Development Board is shown in
Figure 1-4 The sections that follow provide a detailed description of each block.

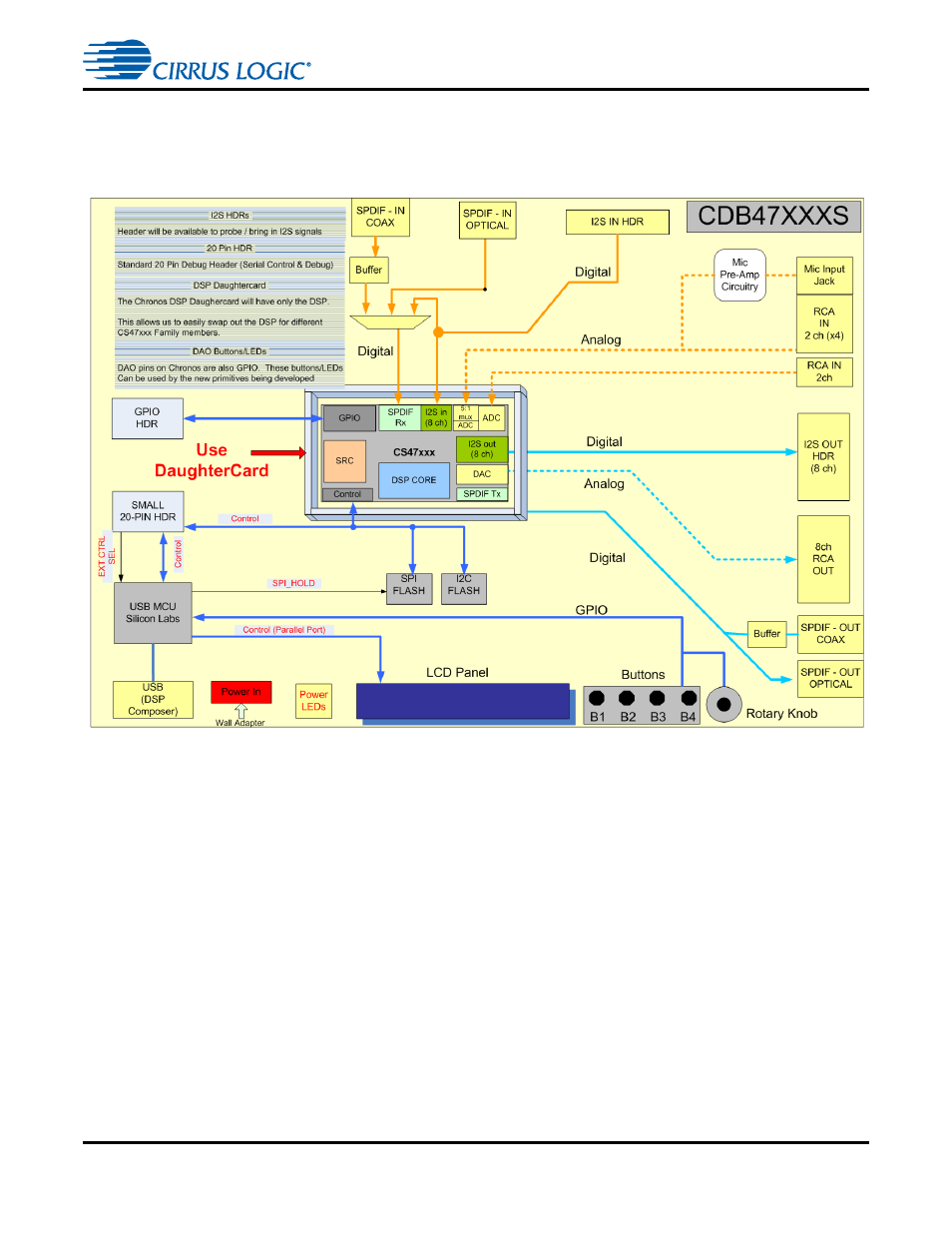

Figure 1-3. CDB47xxxS Main Board Block Diagram
