Cirrus Logic CS4224 - Manual (Page 22)

CS4223 CS4224
22 DS290F1

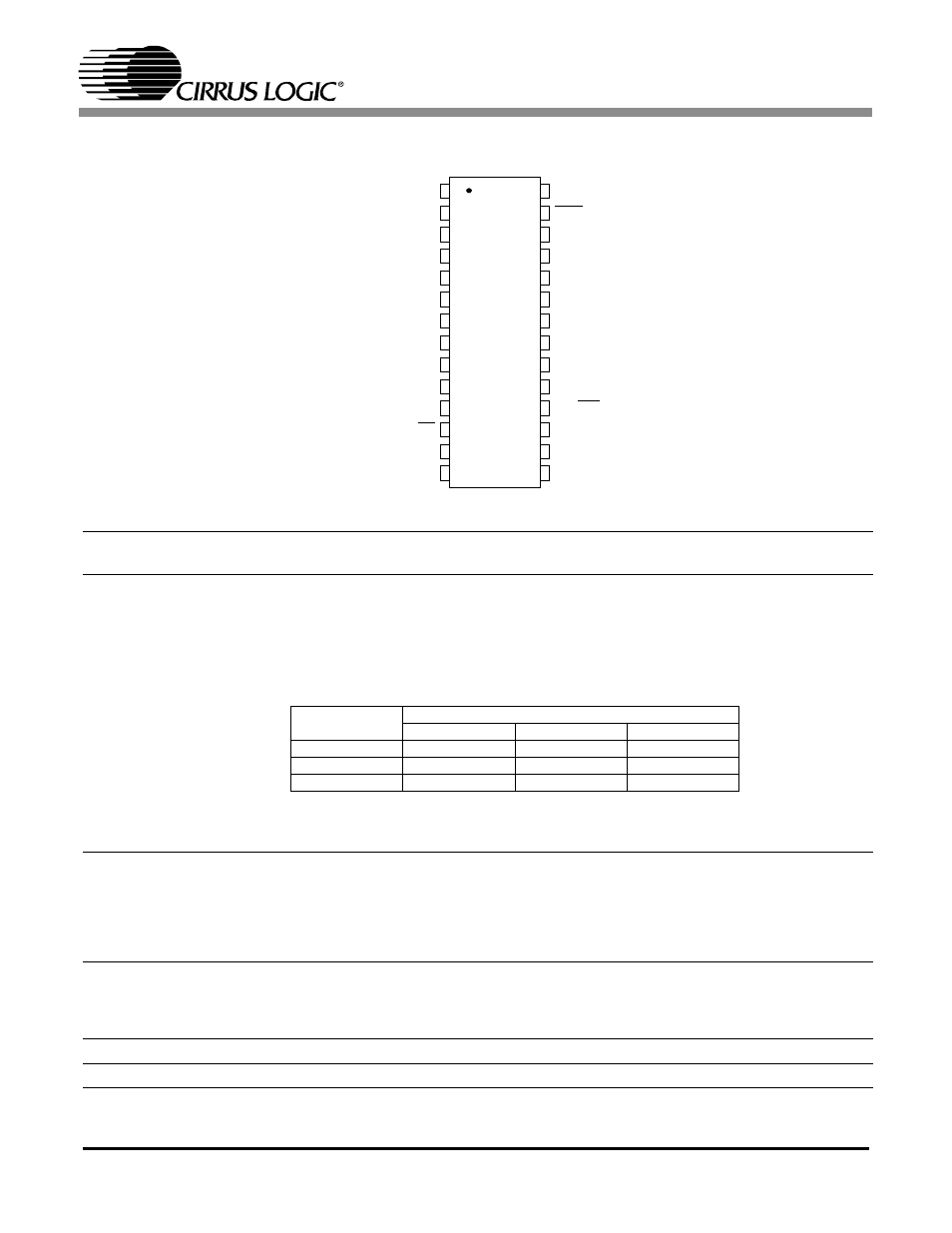

7. PIN DESCRIPTIONS — CS4224
1
2
3
4
5
6
7
8 21
22
23
24
25
26
27
28 NC
RST
AOUTL-
AOUTL+
AOUTR+
AOUTR-
AGND
VA SDOUT
DGND
VD
SCLK
LRCK
XTI
XTO
NC
9
10
11
12 17
18
19
20 AINL+
AINL-
I2C/SPI
AINR+ AD0/CS
SDA/CDIN
SCL/CCLK
SDIN
13
14 15
16 AINR-
NC NC
VL
CS4224
NC 1,14,15, 28 No Connect - These pins are not connected internally and should be tied to DGND to mini-
mize noise coupling.
XTI, XTO 2,3 Crystal Connections (Input/Output) - Input and output connections for the crystal used to
clock the CS4224. Alternatively a clock may be input into XTI. This is the clock source for the
delta-sigma modulator and digital filters. The frequency of this clock must be either 256x, 384x,
or 512x Fs. The default XTI setting in Master Mode is 256x, but this may be changed to 384x
or 512x through the Control Port.
LRCK 4 Left/Right Clock (Input) - Determines which channel is currently being input/output of the
serial audio data pins SDIN/SDOUT. The frequency of the Left/Right clock must be equal to the
input sample rate. Although the outputs for each ADC channel are transmitted at different
times, Left/Right pairs represent simultaneously sampled analog inputs. The required relation-
ship between the left/right clock, serial clock and serial data is defined by the DSP Port Mode
(05h) register. The options are detailed in Figures 8 - 11.
SCLK 5 Serial Data Clock (Input) - Clocks the individual bits of the serial data into the SDIN pin and
out of the SDOUT pin. The required relationship between the left/right clock, serial clock and
serial data is defined by the DSP Port Mode (05h) register. The options are detailed in Figures
8 - 11.
VD 6 Digital Power (Input) - Positive power supply for the digital section. Typically 5.0 VDC.
DGND 7 Digital Ground (Input) - Digital ground for the digital section.
Fs (kHz) XTI (MHz)
256x 384x 512x
32 8.1920 12.2880 16.3840
44.1 11.2896 16.9344 22.5792
48 12.2880 18.4320 24.5760
Table 5. Common Clock Frequencies
