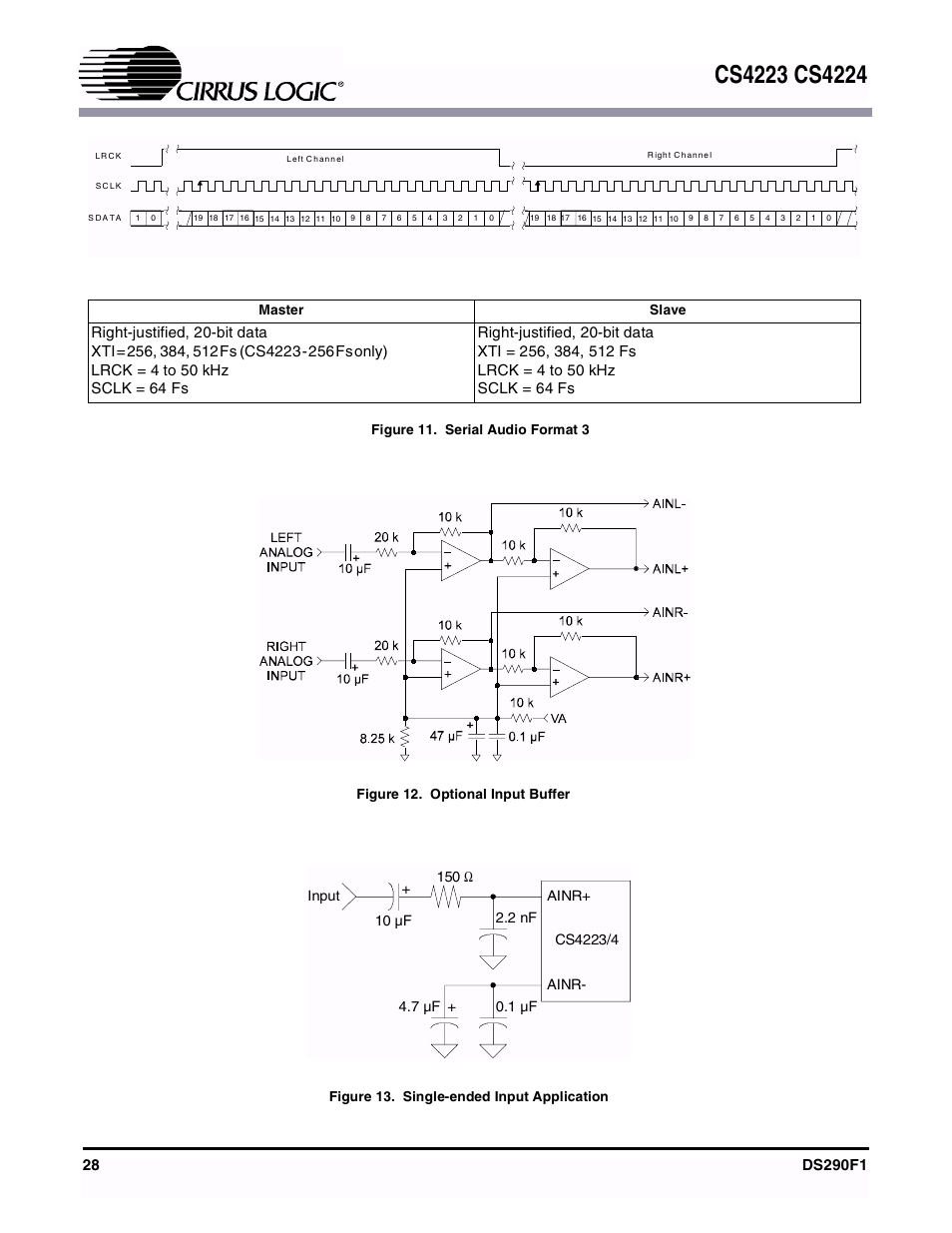

Figure 11. serial audio format 3, Figure 12. optional input buffer, Figure 13. single-ended input application – Cirrus Logic CS4224 User Manual

Page 28: Figure 11, Serial audio format 3, Figure 12, Optional input buffer, Figure 13, Single-ended input application

Figure 11. serial audio format 3, Figure 12. optional input buffer, Figure 13. single-ended input application | Figure 11, Serial audio format 3, Figure 12, Optional input buffer, Figure 13, Single-ended input application | Cirrus Logic CS4224 User Manual | Page 28 / 34 Figure 11. serial audio format 3, Figure 12. optional input buffer, Figure 13. single-ended input application | Figure 11, Serial audio format 3, Figure 12, Optional input buffer, Figure 13, Single-ended input application | Cirrus Logic CS4224 User Manual | Page 28 / 34
