6 Commissoning, operation
WIKA operating instructions digital indicator model DI10
27

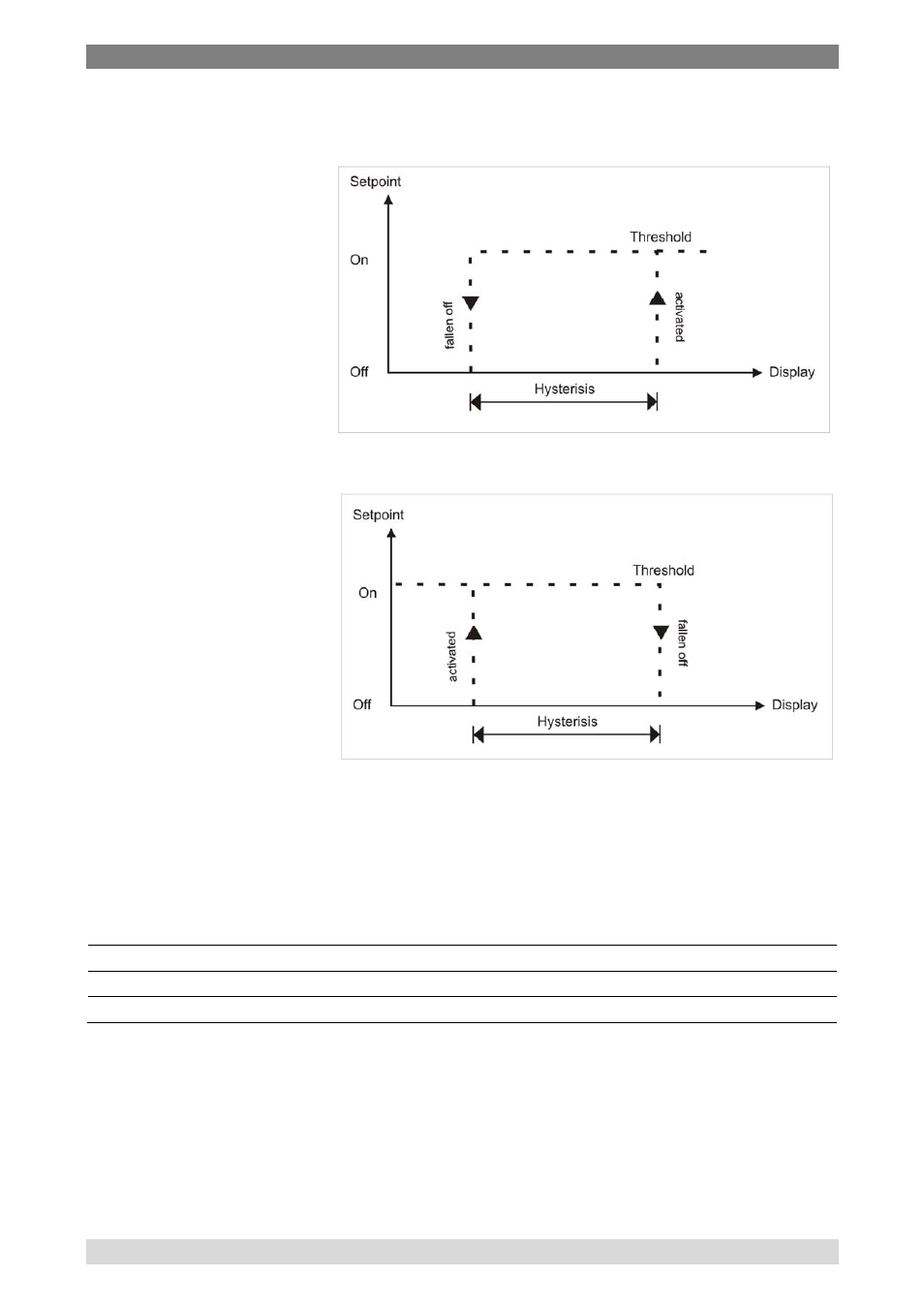

6.6 Functional principle of the setpoints
Operating current
The setpoint S1-S2 is
off below the threshold
and on reaching the
threshold.
Quiescent current
The setpoint S1-S2 is on
below the threshold and
switched off on reaching
the threshold.
Alarms / optical setpoint display
An activated setpoint can be optically indicated by flashing of the 7-segment
display.
Functional principle of the alarms
Threshold
Threshold/limit value for switch over
Hysteresis
Width of the window between the thresholds
Operating principle
Operating current / quiescent current
