Operating Instructions Temperature Indicating Controller CS4S
V1.1
•
10/2006 - 9 -

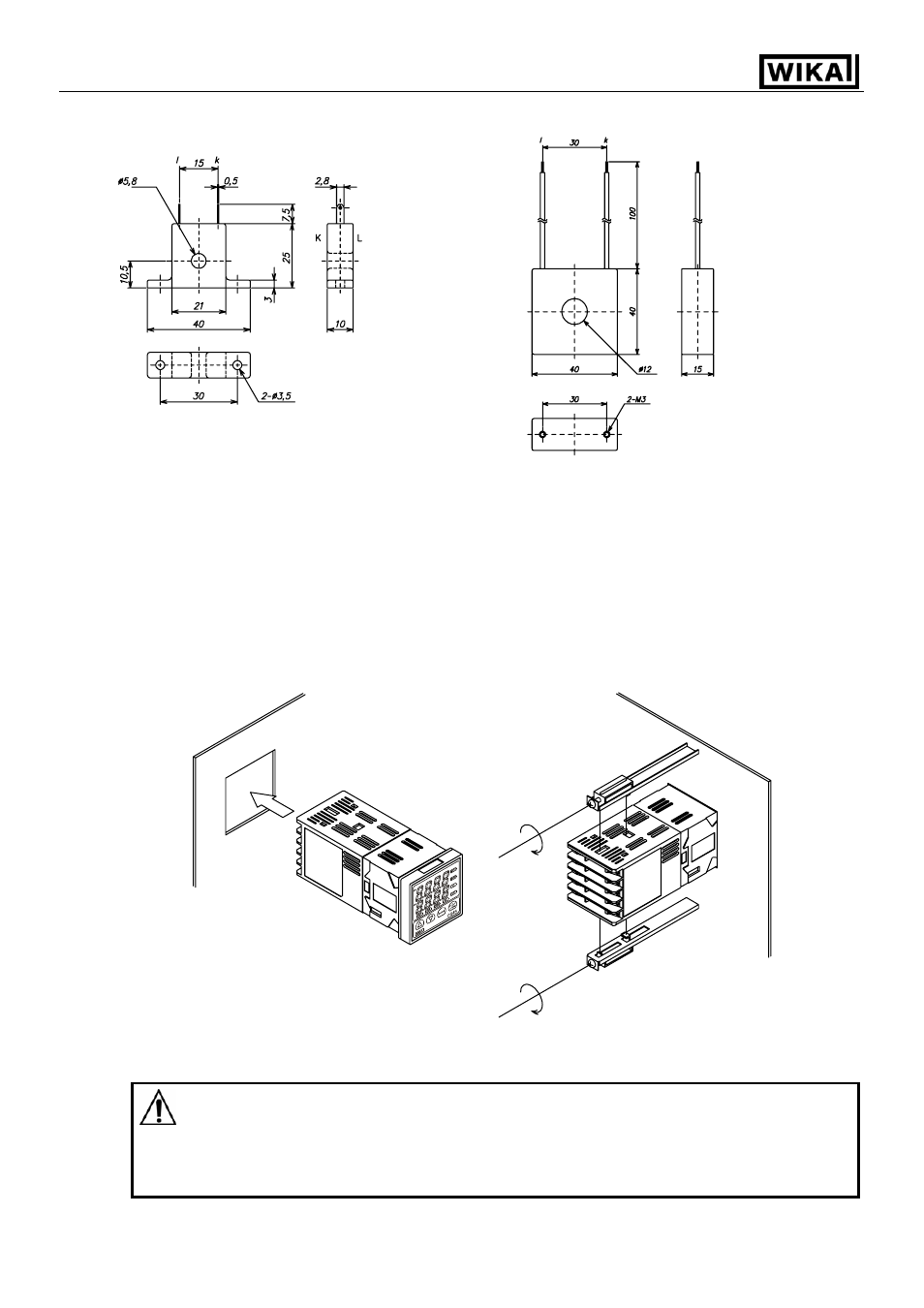

3.4 CT (Current transformer) external dimension
CTL-6S (for 5A, 10A, 20A)
CTL-12-S36-10L1 (for 50A)
(Fig.
3.4-1)
3.5 Mounting
Mount the controller vertically to fulfill the Dust-proof/Drip-proof specification (IP66).
Mountable panel thickness: Within 1 to 15 mm
Insert the controller from the front side of the panel.
Attach the mounting brackets by the holes at the top and bottom of the case and secure the controller in
place with the screws.
(Fig.3.5-1)
Warning
As the case is made of resin, do not use excessive force while screwing in the mounting
bracket, or the case or screw type mounting bracket could be damaged.
The torque is approximately 0.12 Nm.
