6.3 Tightening torques

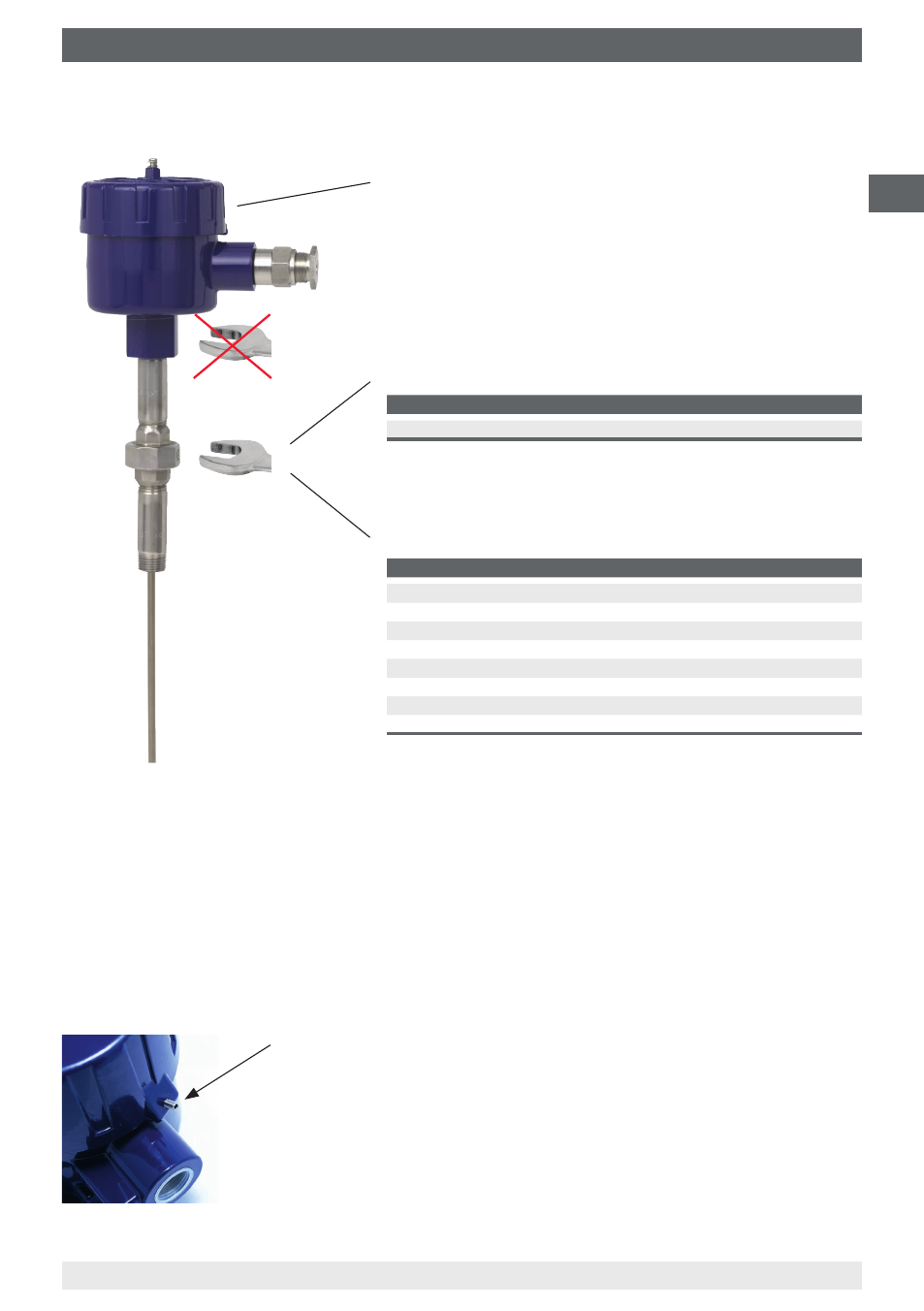

Connection head, selectable (example)
Tightening torques for connection to thermowell
Tightening torques for connection to neck tube
Thread Tightening torques in Nm
R 1/2 1) 50 ... 60
1) only for versions with “nipple-union-nipple” neck tube
Thread Tightening torques in Nm
1/2 NPT 35
3/4 NPT 40
G 1/2 B 35
G 3/4 B 40
M14 x 1.5 25 ... 30
M18 x 1.5 35
M20 x 1.5 35 ... 40
M27 x 2 40 ... 45
■ Only ever screw in, or unscrew, the instrument via the spanner-flats and to the prescribed
torque using an appropriate tool.
■ The correct torque depends on the dimensions of the connection thread and the gasket
used (form/material).
■ Screwing or unscrewing the connection head is not permitted.
■ When screwing in the instrument, please observe that the threads are not skewed.
6. Commissioning, operation
6.4 Locking screw
Always tighten the locking screw to prevent unintended opening of
the head with flameproof enclosure.
Before opening the head, always loosen the locking screw
sufficiently.
