12 TP-121/3/5EDID, PT-110EDID - Your TP-123EDID

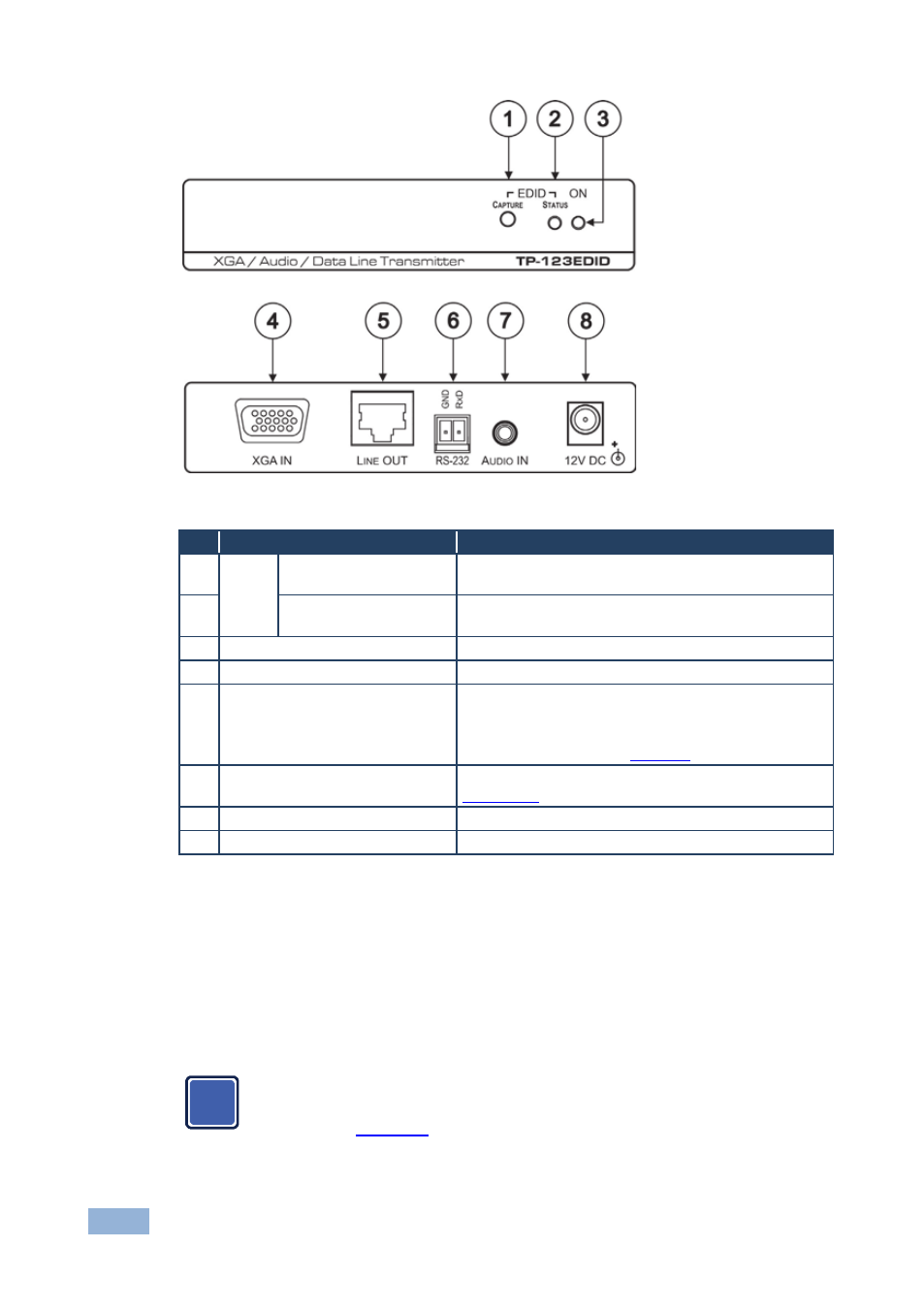

Figure 3: TP-123EDID XGA/Audio/Data Line Transmitter
# Feature Function
1 EDID CAPTURE Button Press to acquire the EDID information from the
display
2 STATUS LED Illuminates during normal operation; flashes when
acquiring the EDID
3 ON LED Illuminates when receiving power
4 XGA IN 15-pin HD (F) connector Connect to the XGA source
5 LINE OUT RJ-45 connector Connects to the LINE IN RJ-45 connector on the
TP-124 XGA/Audio Line Receiver
Use a CAT 5 cable with RJ-45 connectors at both ends
(the PINOUT is defined in
Section 8 )
6 RS-232 terminal block connector Connects to the PC or the Remote Controller (see
Section 5.3 )
7 AUDIO IN 3.5mm mini jack Connects to the audio source
8 12V DC +12V DC connector for powering the unit
5.2 Connecting the TP-123EDID XGA/Audio/Data Line
Transmitter
You can use the TP-123EDID together with the TP-124 XGA/Audio/Data Line
Receiver to configure a twisted pair transmitter and receiver system, to transmit
the video, audio and RS-232 control signals via CAT 5 cable.
Before connecting the transmitter and receiver system you can
acquire the EDID from the display or set the system to the default
EDID, see Section 9 .
i
