18 SL-14RC/N - Installing and Using RC-3TBU Configurator Software

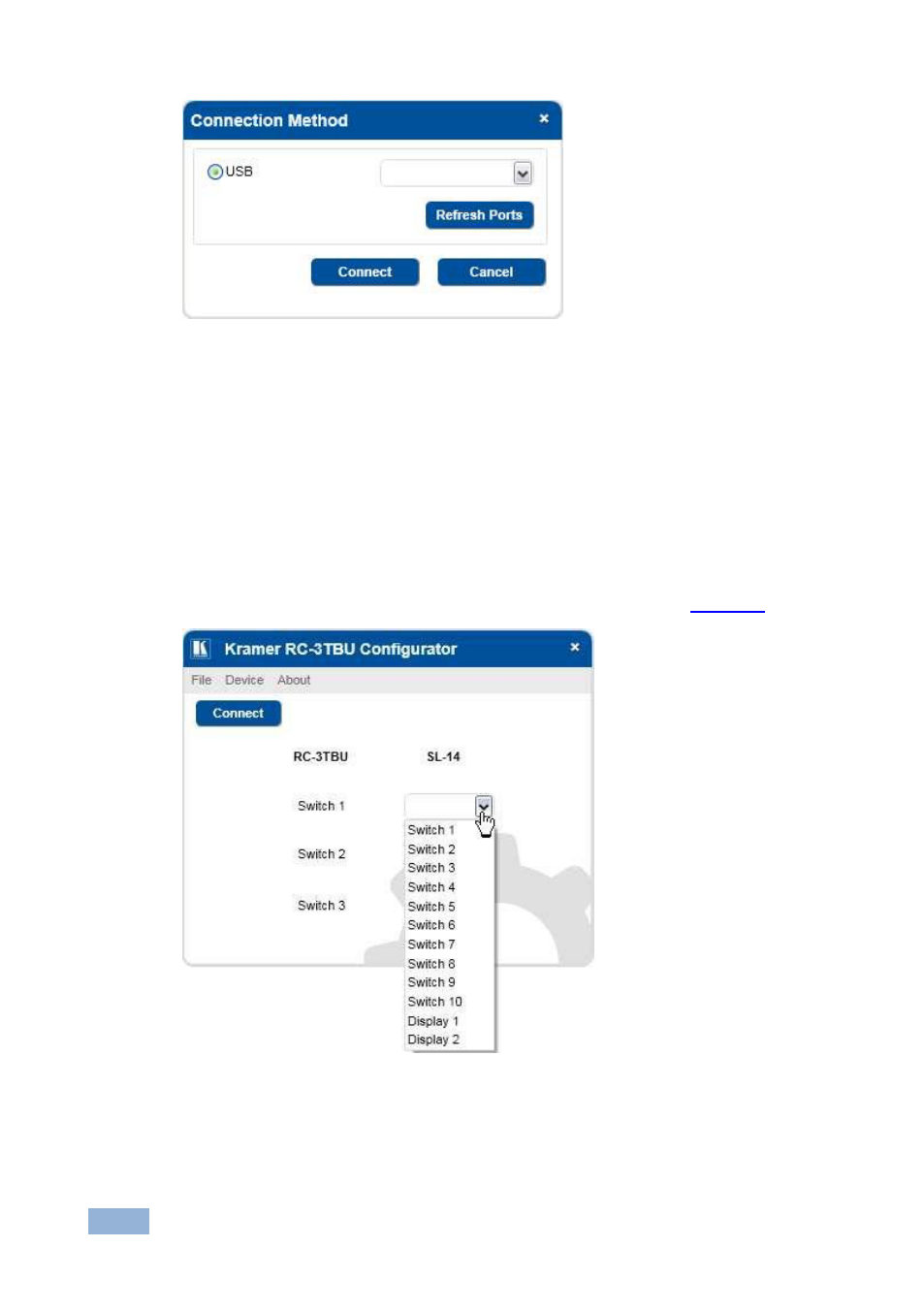

Figure 9: RC-3TBU Connection Method Window
3. Click the Refresh Ports button.
4. Click to open the USB ports drop-down list.
5. Select the required port.
6. Click Connect.
7. Click to open one of the switch drop-down lists as shown in Figure 10 .
Figure 10: RC-3TBU Configurator Software Switch Drop-down List
8. Select one of the switches or displays to emulate on the SL-14RC/N.
The selection is implemented immediately and stored on RC-3TBU.
