SL-14RC/N - Connecting the SL-14RC/N
15
7.3.2
Daisy-Chaining Multiple RC-3TB/U Remote Control Panels
The wiring of two RC-3TB/U panels to the K-NET port on the SL-14RC/N is shown
in
. Connection of more than two RC-3TB/U panels follows the same
principle.

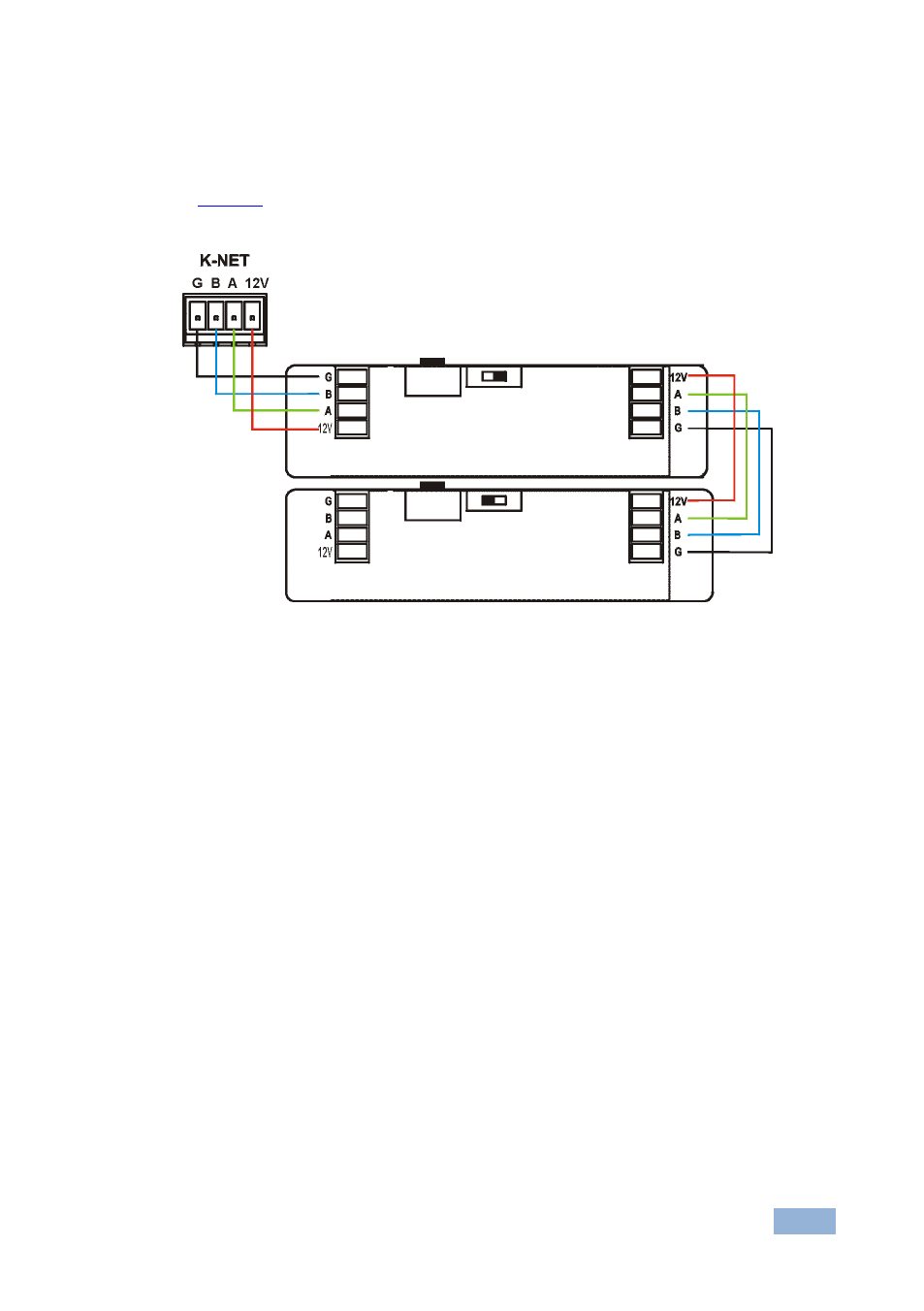

Figure 8: Daisy-chaining Multiple RC-3TB/U Panels
Note the position of the termination switch on the first RC-3TB (open, to the right),
and that of the second RC-3TB (closed, to the left). When using the RC-3TBU, the
same termination scheme must be used.
Connections to an SL-14RC/N or to another RC-3TB/U can be made to either
connector block as the connector blocks are functionally identical.
