12 SL-14RC/N - Connecting the SL-14RC/N
7 Connecting the SL-14RC/N
Always switch off the power to each device before connecting it to your
SL-14RC/N. After connecting your SL-14RC/N, connect its power and
then switch on the power to each device.

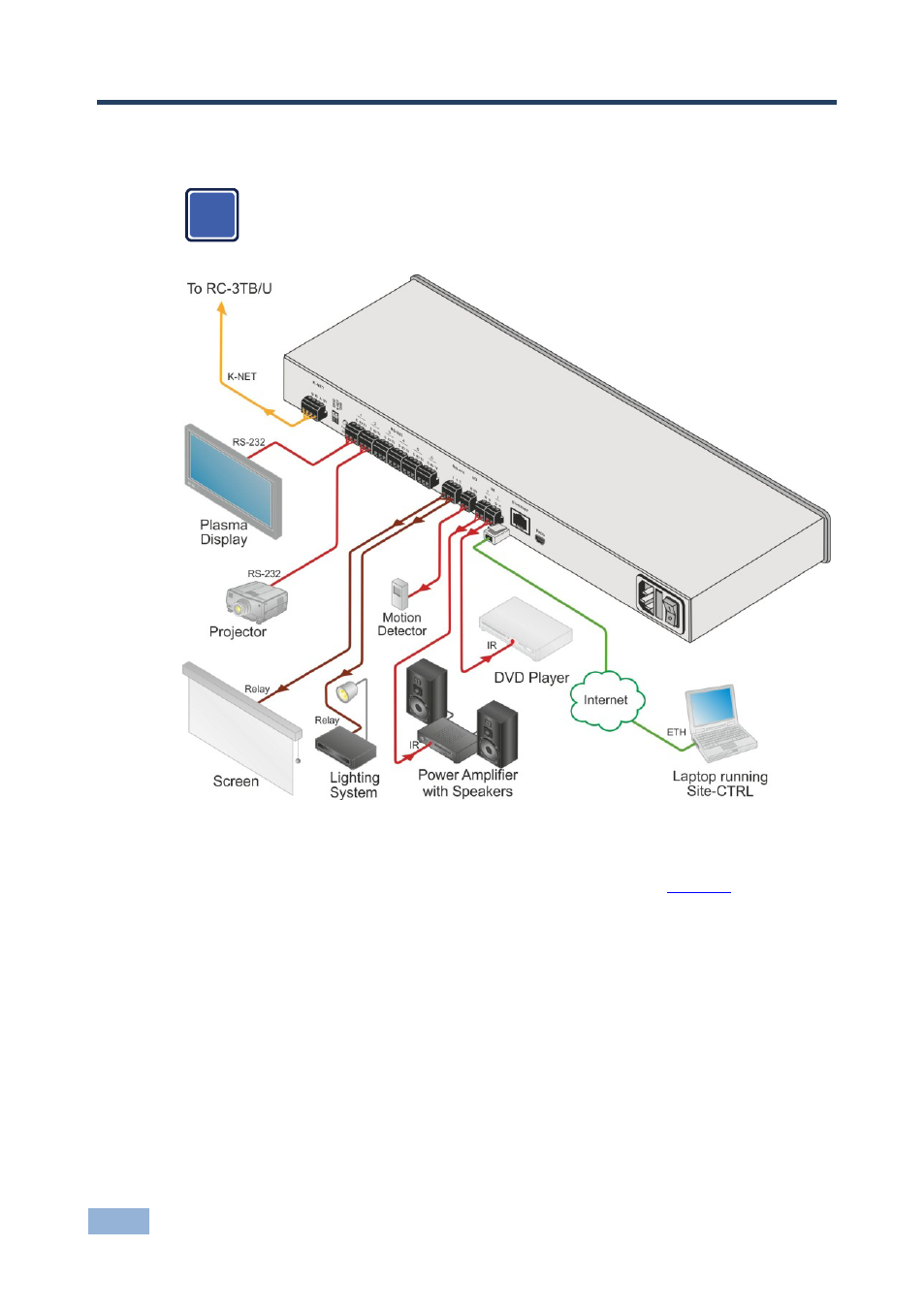

Figure 5: Connecting the SL-14RC/N Master Controller
To connect the SL-14RC/N as illustrated in the example in Figure 5 :
1. Connect the RELAY terminal block connectors as follows:

Connect RELAY 1 to the lighting system

Connect RELAY 2 to the screen
2. Connect the I/O port to a motion detector.
3. Connect the IR outputs as follows:
 Connect an IR emitter to IR OUTPUT 1 and attach the emitter to the
DVD player
i
