14 SL-14RC/N - Connecting the SL-14RC/N
To connect the SL-14RC/N to a network:
1. Connect the Ethernet port of the SL-14RC/N to the Ethernet port on a
network hub or network router, via a straight cable with RJ-45 connectors.
2. At the other end, connect the Internet to a PC running Site-CTRL.
3. After connecting the Ethernet port, you have to install and configure it. For
detailed instructions on how to install and configure your Ethernet port, see
the K-Config Software Guide available from our Web site at
www.kramerelectronics.com .
7.3 Connecting RC-3TB/U Remote Control Panels
(Optional)
One or more RC-3TB/U panels may be connected to the K-NET port on the
SL-14RC/N in a daisy-chain configuration.

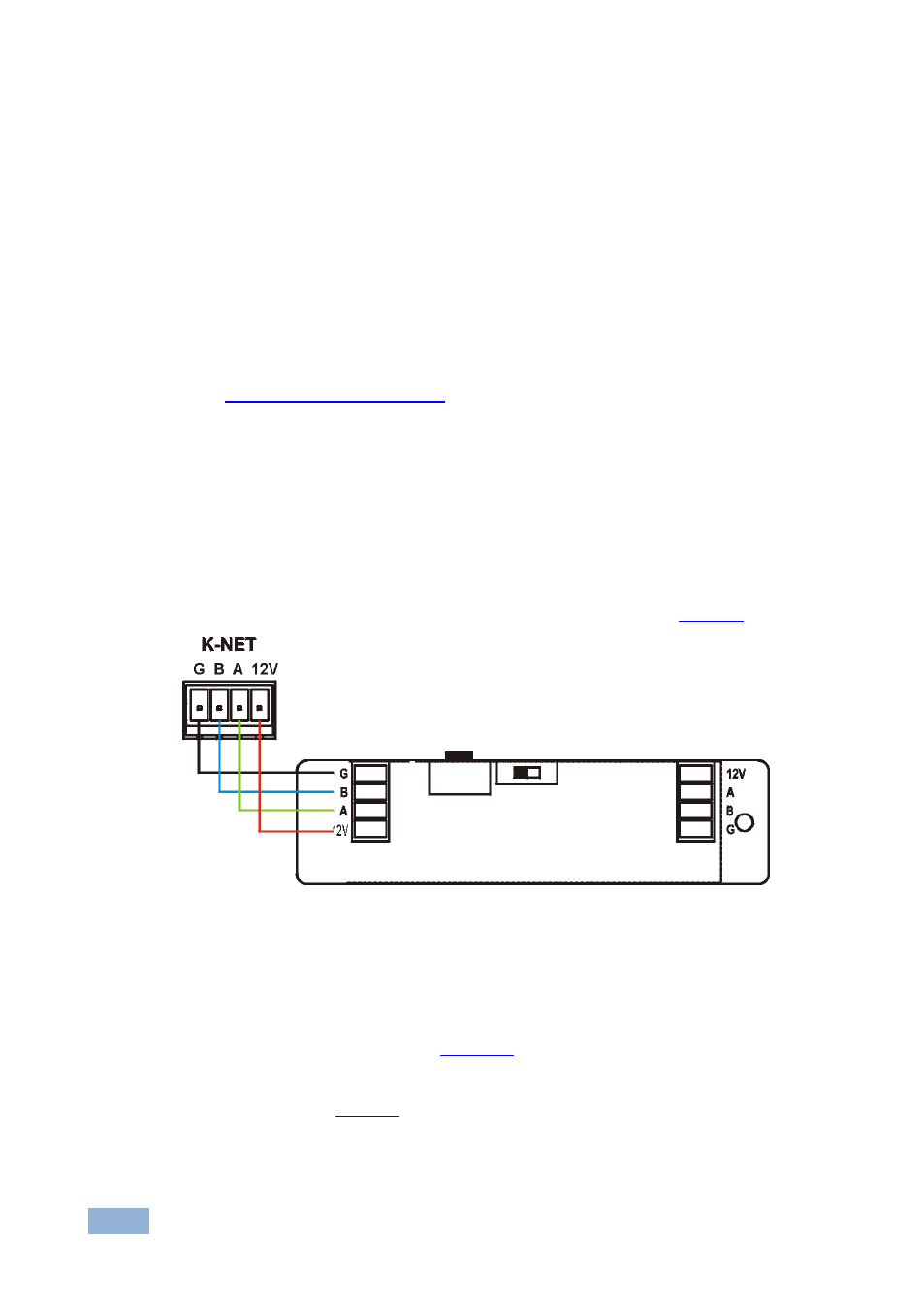

The wiring from a K-NET port to a single RC-3TB/U is shown in Figure 7 .
Figure 7: K-NET to RC-3TB/U Connection
7.3.1 Terminating RC-3TB/U Remote Control Panels
If only one RC-3TB/U is connected, it must be terminated and the termination on
the SL-14RC/N is turned off (see Section 5 ). When viewed from above and the
rotary switch is to the left of the termination switch, slide the termination switch to
the left as shown in Figure 7 .
Only the last RC-3TB/U in the chain should be terminated.
