VP-790 - Controlling the VP-790

The Menu

Description

Setup
(see

Section

6.7

)

Set the: Current Profile, Load Profile, Save Profile, Switching Transition,
Frame Lock, Operation Mode, Processing Mode or Language
Access the Network Setup and Controls Setup submenus
Perform Factory Reset

File Upload

Lets you upload up to 5 custom test patterns

Backup / Restore Lets you back up settings to a file and restore settings from a file

The File Upload and Backup/Restore menus appear only on the Web pages

7.4

Controlling via the Infrared Remote Control Transmitter

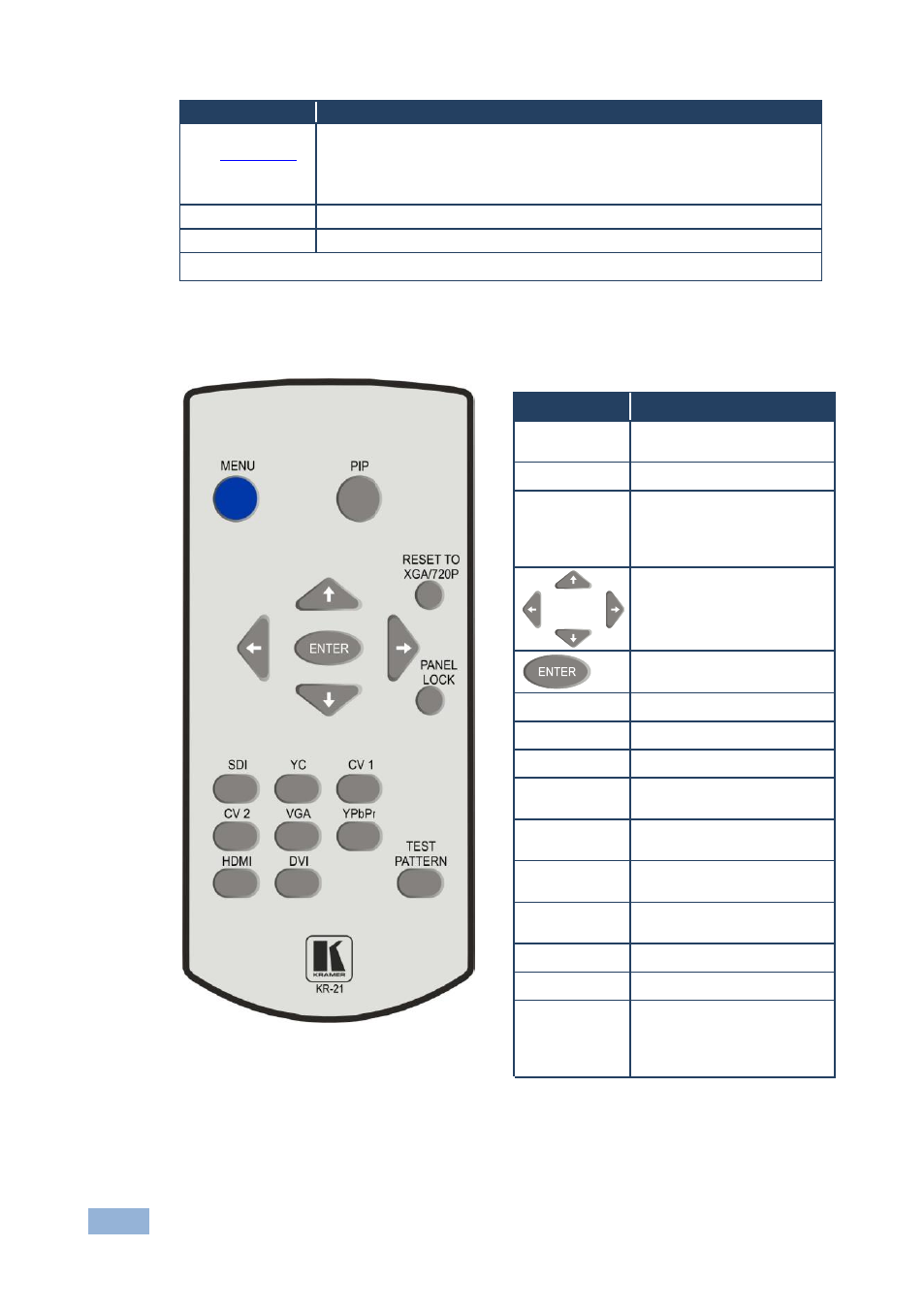

Figure 17: Infrared Remote Control Transmitter

Keys

Function

Enter the OSD menu. Press
again to exit the menu

PIP

Toggle the PIP on or off

RESET TO
XGA/720P

Press and hold to reset to
the default resolution
(toggles between RESET
TO XGA and 720p)

Four navigation keys

Press to accept changes

PANEL LOCK

Lock the front panel lock

SDI

Select the SDI input

Select the S-VIDEO input

CV1

Select the composite video
1 input

CV2

Select the composite video
2 input

VGA

Select the computer
graphics input

YPbPr

Select the component video
input

HDMI

Select the HDMI input

DVI

Select the DVI input

TEST
PATTERN

Select the test pattern
inputs. Cycles between
different patterns with each
press of the button
