VP-790 - Connecting the VP-790 11
11
10. Connect the SDI OUT BNC connector to an SDI acceptor (for example, a
projector).
11. Connect the DVD-D/HDMI VIDEO OUT connector to an HDMI acceptor (for
example, an LCD display).
12. Connect the PC OUT 15-pin HD connector to a VGA acceptor (for example,
a display).
13. Connect the audio output signal to the S/PDIF OUT digital audio acceptor,
as required (not shown in Figure 3 ).
14. Connect the power cord (not shown in Figure 3 ).

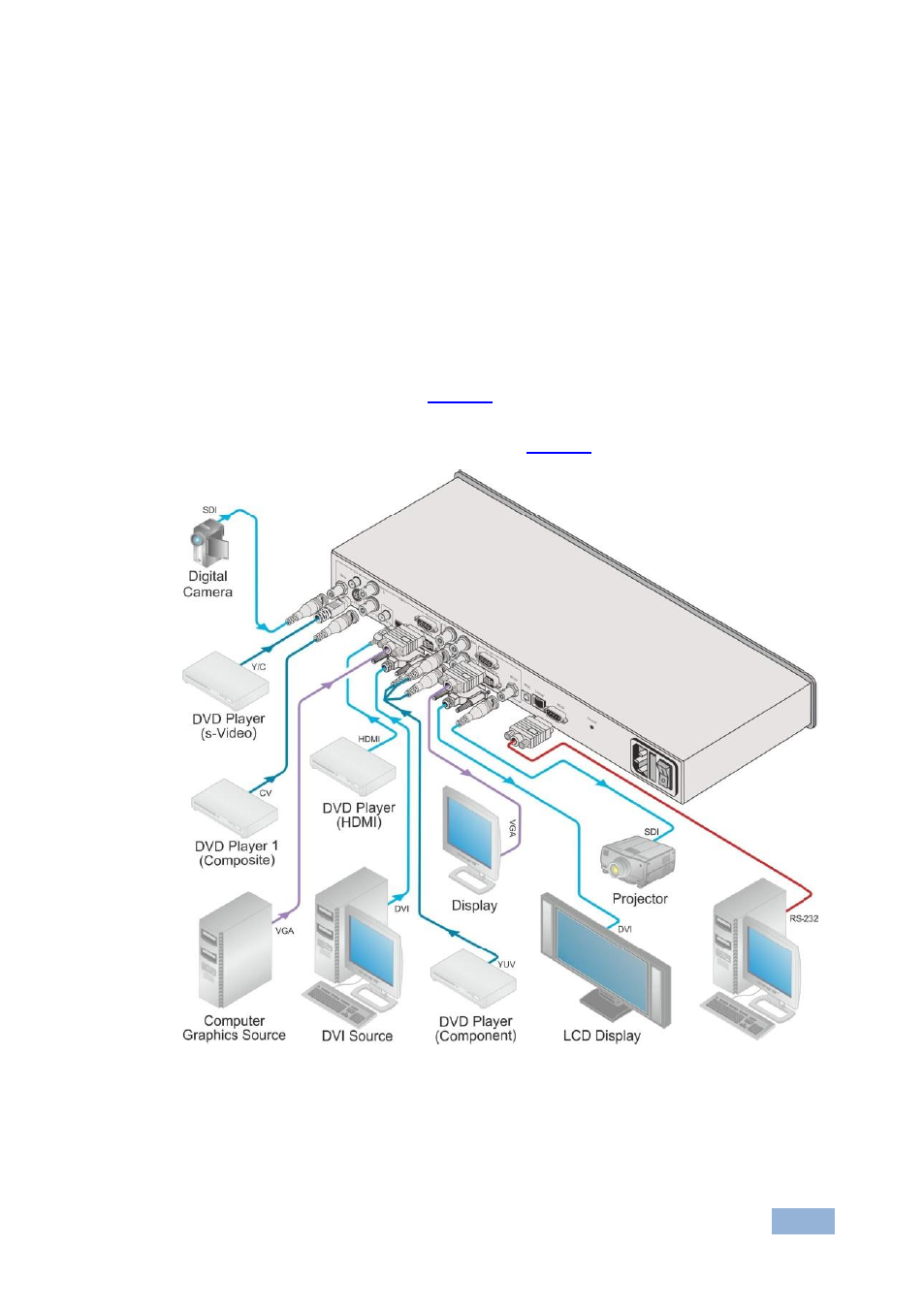

Figure 3: Connecting the VP-790 Genlock Presentation Switcher/Scaler
