Connecting and Controlling the VS-81ETH
11
5.4 Setting the Dipswitches
By default, all dipswitches are set to OFF. Figure 7 illustrates the
VS-81ETH
dipswitches:
ON
1 2 3 4
SETUP

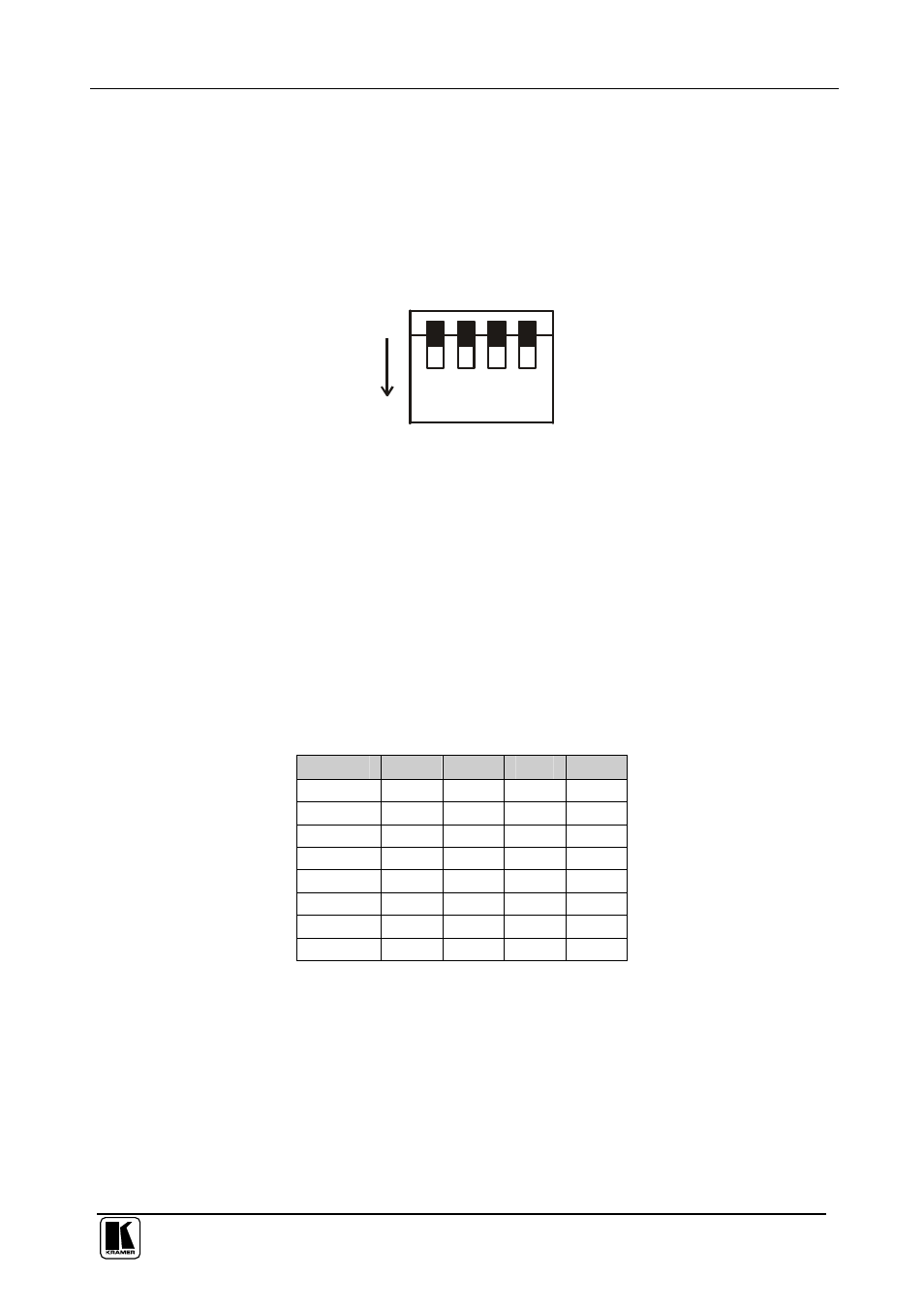

Figure 7: VS-81ETH SETUP Dipswitches
5.4.1 Setting the Machine # Dipswitches
The Machine # (dipswitches 1 to 4) determines the position of a
VS-81ETH
unit, specifying which
VS-81ETH unit is being controlled when several
VS-81ETH units connect to a PC or serial controller. Set the Machine # on a
VS-81ETH unit via SETUP DIPS 1, 2, 3 and 4, according to Table 4.
When using a standalone
VS-81ETH unit, set the Machine # to 1. When
connecting more than one
VS-81ETH unit, set the first machine (the Master)
that is closest to the PC, as Machine # 1 (dipswitches are set to OFF).
Table 4: Machine # Dipswitch Settings
Mach. #
DIP 1 DIP 2 DIP 3 DIP 4
1
OFF
OFF
OFF
OFF
2
OFF
OFF
OFF
ON
3
OFF
OFF
ON
OFF
4
OFF
OFF
ON
ON
5
OFF
ON
OFF
OFF
6
OFF
ON
OFF
ON
7
OFF
ON
ON
OFF
8
OFF
ON
ON
ON
