Connecting and Controlling the VS-81ETH
7
2. On the VS-81ETH, connect 3 the IN/OUT connector to the LINE IN
RJ-45 connector on a TP-120 1 XGA Line Receiver unit, and connect the
XGA OUT connector on that TP-120 unit to the acceptor (for example,
a projector). You can connect up to 8 outputs 2 .
3. Set the dipswitches (see section 5.5).
4. Connect a PC and/or controller (if required) to the RS-232 port (see
section 5.2) and/or RS-485 port (see section 5.3).
5. Connect the power cord 3 .
To transmit the signal from the OUT/IN connector to a device connected to
the IN/OUT connector, press the appropriate IN/OUT button.
RS-232
Computer
Graphics Source
PT-110
TP-120
Plasma
Display
TP-120
Projector

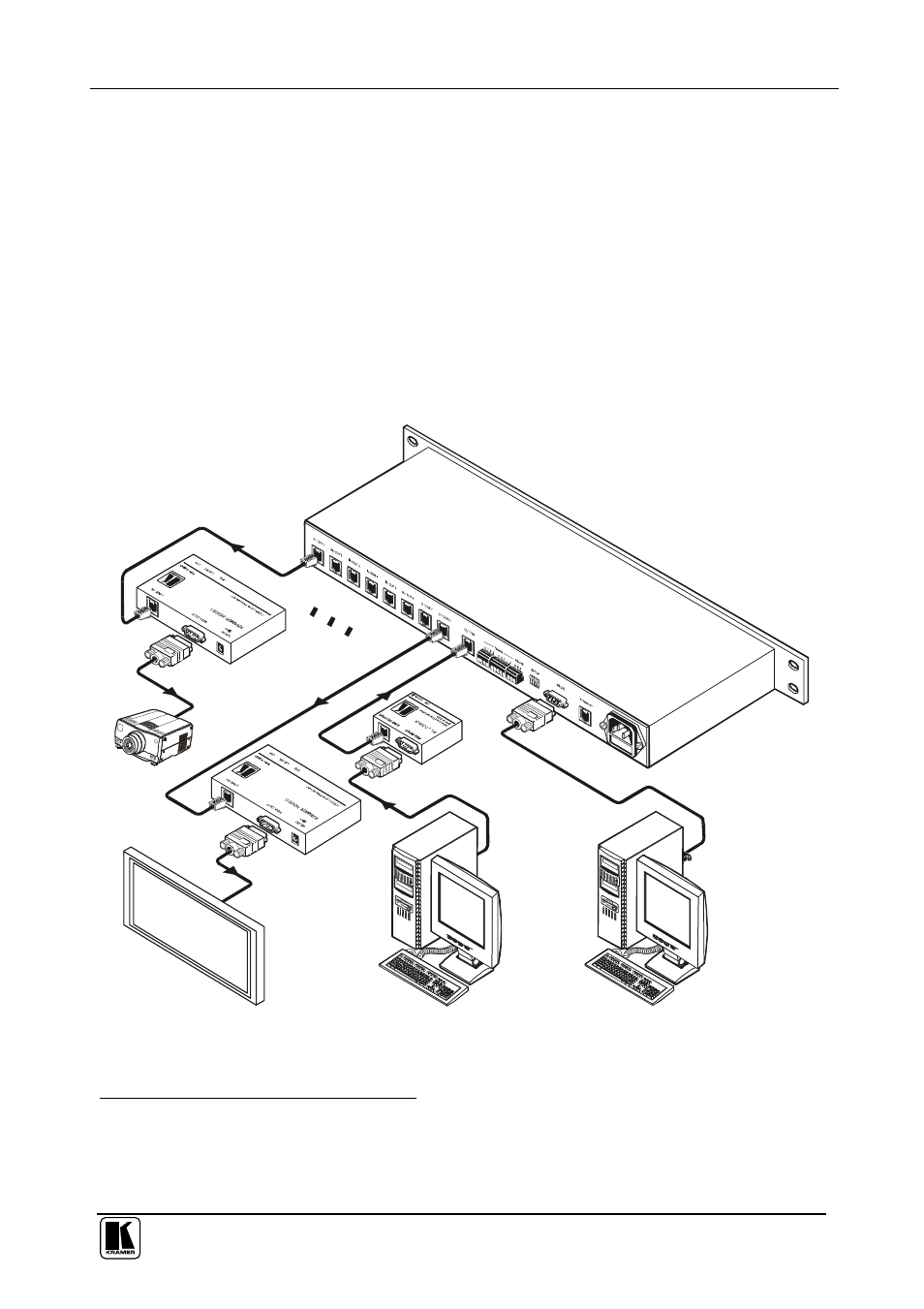

Figure 3: Connecting the VS-81ETH in the Reverse Direction
1 Refer to the separate user manual PT-110, WP-110, TP-120, which can be downloaded from the Internet at this URL:
http://www.kramerelectronics.com
2 You do not have to connect all 8 inputs, connect only those that are required
3 We recommend that you use only the power cord that is supplied with this machine
