Connecting and Controlling the VS-81ETH
27
5.7 Connecting the REMOTE Connector
You can connect contact-closure switches to the REMOTE terminal block
connector, as Figure 27 describes. A remote unit can consist of mechanical
switches 1 with a common wire for ground 2 . When you connect 3 the
appropriate REMOTE terminal block connector PIN to the REMOTE terminal
block connector Ground PIN, the VS-81ETH will route the appropriate
IN/OUT signal to the OUT/IN acceptor 4 .

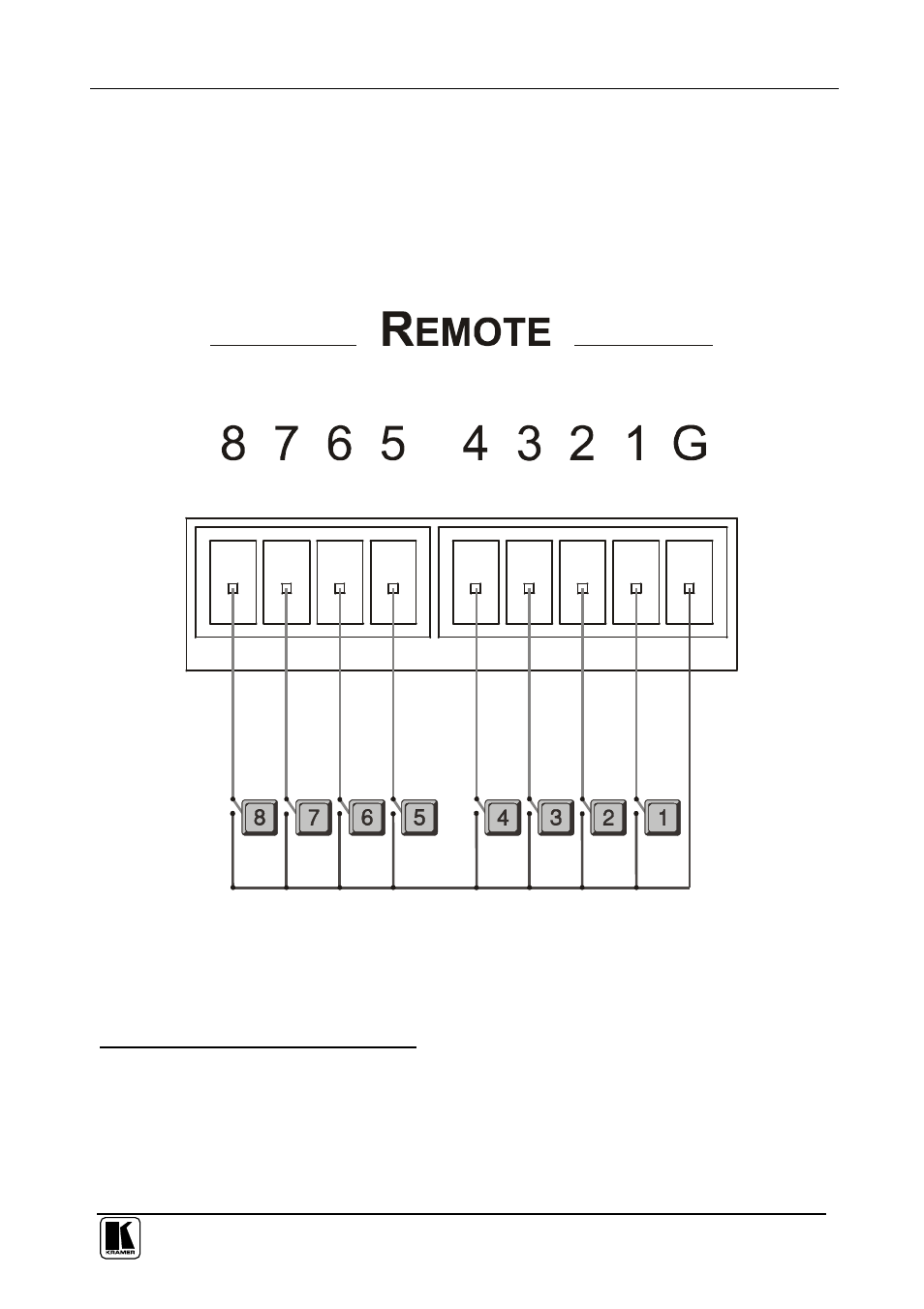

Figure 27: Connecting a Remote Mechanical Switcher Unit to the VS-81ETH
1 The remote unit can have up to 8 push-buttons corresponding to the front panel IN/OUT buttons
2 Providing control over a distance up to hundreds of meters
3
Momentary connection. After the connection has been made, the new status is selected – as in the case when a front panel
switch is pressed
4 To route IN/OUT 1, connect PIN 1 to the Ground PIN. To route IN/OUT 2, connect PIN 2 to the Ground PIN. To route
IN/OUT 3, connect PIN 3 to the Ground PIN, and so on
