KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting and Controlling the VS-81ETH
6
RS-232
Projector
TP-120
Computer
Graphics Source
PT-110
Computer
Graphics
Source
PT-110

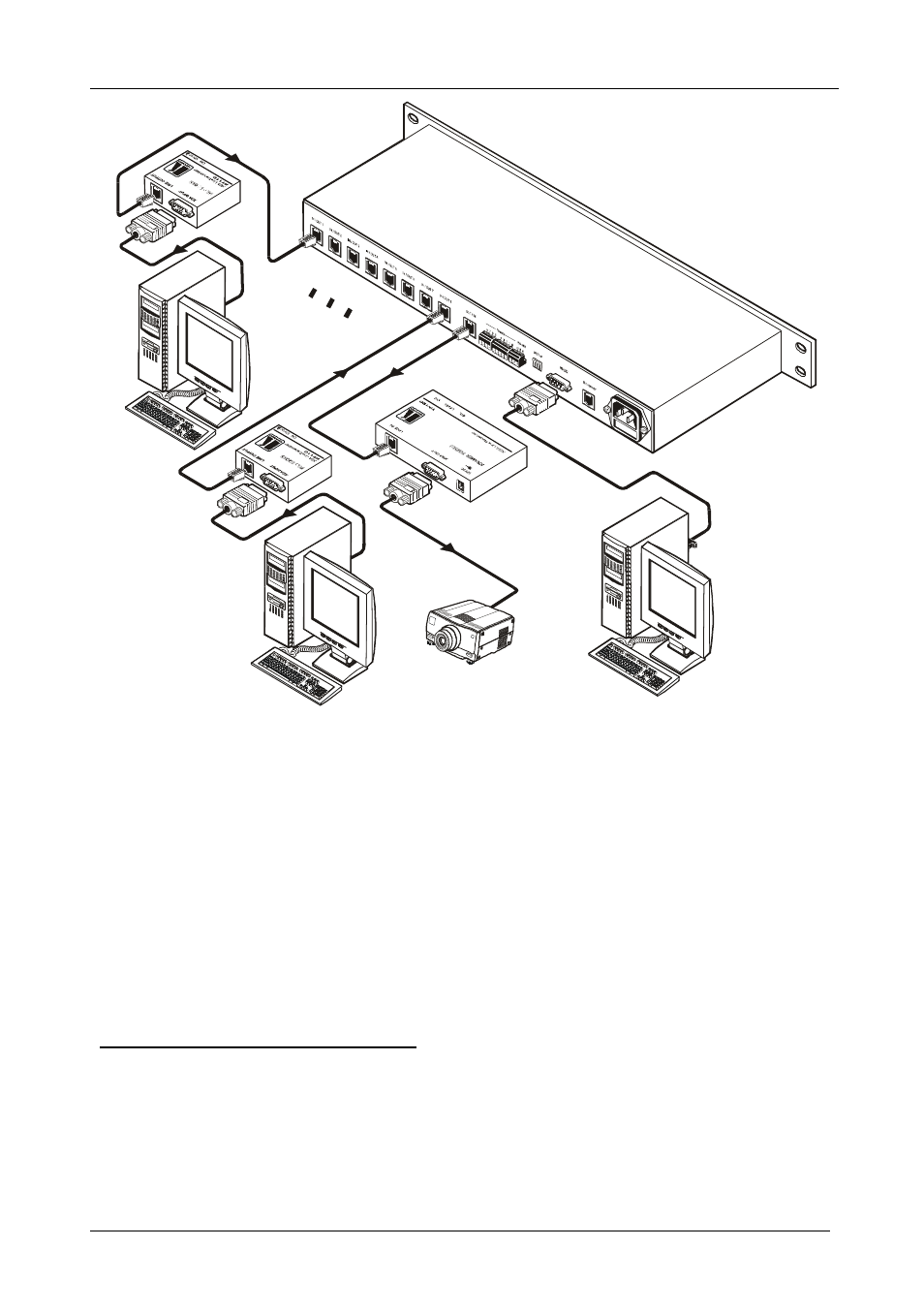

Figure 2: Connecting the VS-81ETH Universal CAT 5 Switcher
5.1.2 Connecting the VS-81ETH in the Reverse Direction
You may connect the VS-81ETH in the reverse direction so that the input
signal from the OUT/IN connector is transmitted to any of the IN/OUT
connectors. You can only route this source to one IN/OUT channel at a time 1 .
To connect the VS-81ETH, in the reverse direction, do the following 2 :
1. Connect the VGA/UXGA computer graphics source to the XGA INPUT
of a PT-110 3 XGA Line Transmitter and connect 4 the LINE OUTPUT on
that PT-110 to the OUT/IN RJ-45 connector on the VS-81ETH.
1 Select by pressing the desired IN/OUT button
2 Switch OFF the power on each device before connecting it to your VS-81ETH. After connecting your VS-81ETH, switch
on its power and then switch on the power on each device
3
Refer to the separate user manual PT-110, WP-110, TP-120, which can be downloaded from the Internet at this URL:
http://www.kramerelectronics.com
4 Using an STP cable with CAT5 connectors at both ends, with a range of more than 300ft (>100m), see section 5.1.3
