Getting to Know Your VP-32xl Switcher
The KRAMER VP-32xl is a full bandwidth, 3x1 VGA/Audio Stereo Switcher designed for computer,
workstation and presentation applications. The VP-32xl switches one of three sets of VGA/Super-VGA/XGA
graphics/Audio stereo sources into up to two monitors or wide screen projectors, with no discernible signal
degradation. Output of the VP-32xl is divided into two, thus it functions as a VGA/Audio DA as well. The
VP-32xl uses a 12Volt DC power source and is therefore perfectly suitable for fieldwork. VGA bandwidth of
300 MHz allows the VP-32xl to be used with the highest resolution graphics workstations.
Front/Rear panel features of the VP-32xl are described in Figure 2 and Table 2.
NOTE
For operation instructions refer to section 9.

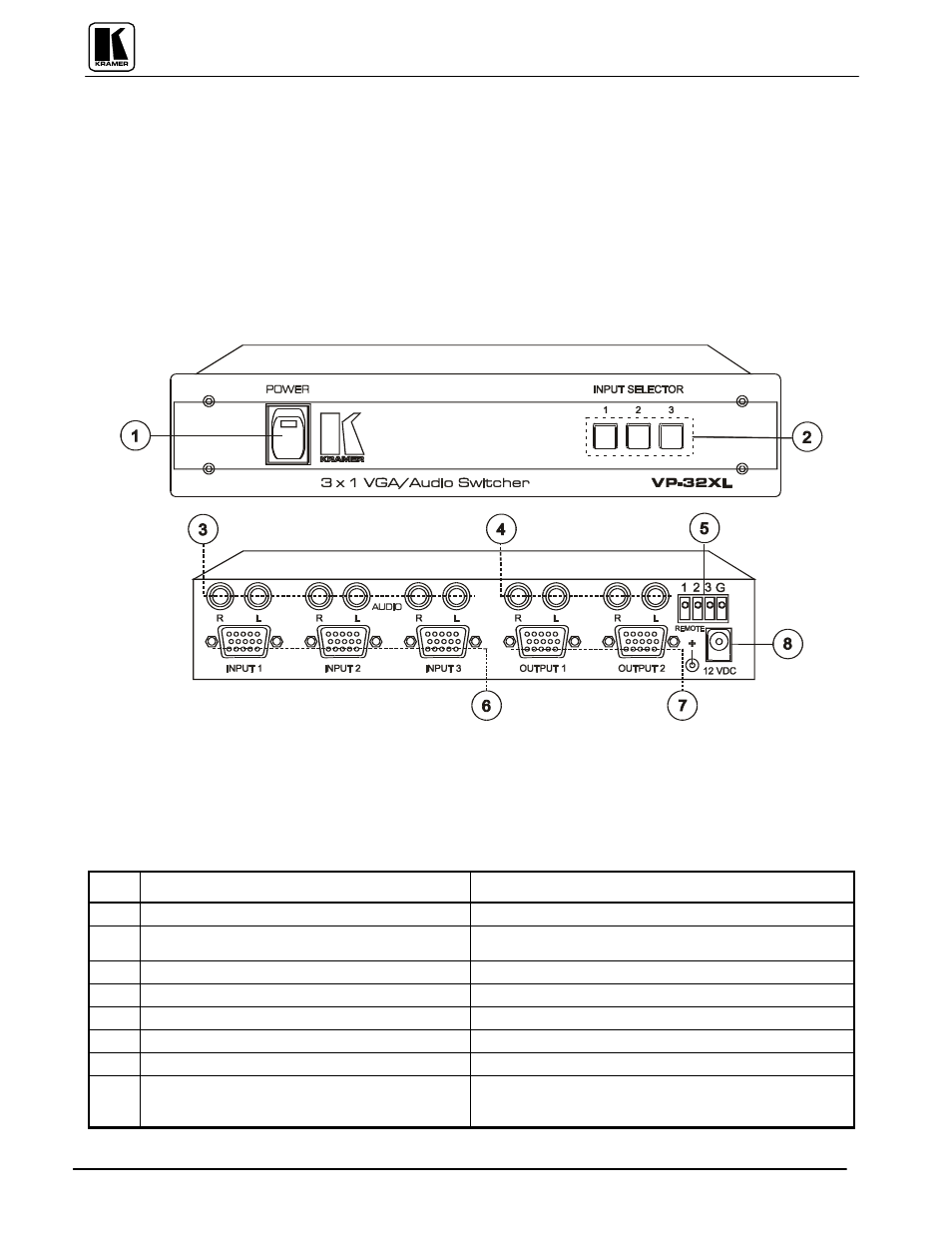

Figure 2: VP-32xl Front/Rear Panel Features
Table 2: VP-32xl Front/Rear Panel Features
No. Feature Function
1. Illuminated power switch Supplies power to the unit.
2. INPUT SELECTOR switches (A, B, C) Select the desired input to be switched to the output.
3. R, L RCA connectors (1-3) Audio input.
4. R, L RCA connectors (1-2) Amplified and buffered audio outputs.
5. Terminal block REMOTE connector Used for manual remote control
6. INPUT (1-3) HD 15F Connectors VGA/XGA video input
7. OUTPUT HD 15F Connector Amplified and buffered video output.
8. 12VDC Power Connector A DC connector that allows power to be supplied to
the unit.
