Kramer Electronics VP-31 User Manual
Page 15

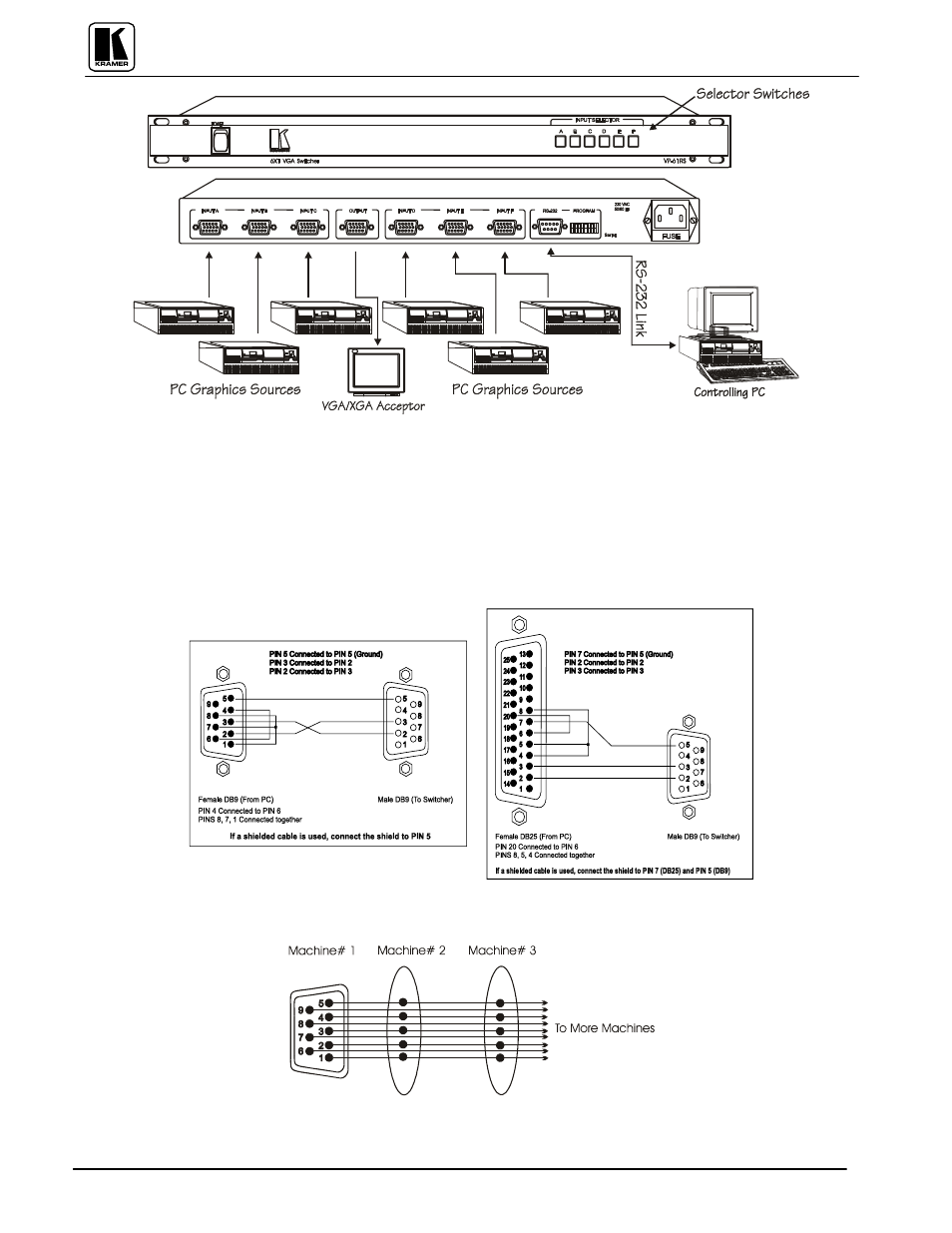

Figure 6: Typical VGA/XGA Switching
CONNECTING TO A PC (VP-61RS only)
To connect directly to a PC without using the KRAMER Null-Modem Adapter, make connections as in Figure
7. To use the KRAMER Adapter instead (recommended), plug one end into the PC's serial port, then connect
from the other end to the switcher using a 9-pin flat-cable. When multi-machines are to be connected together,
make the connections as in Figure 8, or extend pins "5" and "9" only.
Figure 7: RS-232 Control Connector Wiring
Figure 8: Connecting Multi-Machines
