Getting to Know Your VP-61RS Switcher
The KRAMER VP-61RS is a full bandwidth, 6x1 VGA/XGA Switcher designed for computer and
workstation applications. The VP-61RS switches one of six VGA/Super-VGA/XGA graphics card outputs to
one monitor or vice versa, with no discernible signal degradation. The VP-61RS also has RS-232 control.
Input and output are directly coupled and conform to the highest standards. Signal bandwidth of over 180MHz
allows the VP-61RS to be used with the highest resolution graphics workstations.
Front/Rear panel features of the VP-61RS are described in Figure 3 and Table 3.
NOTE
For operation instructions refer to section 9.

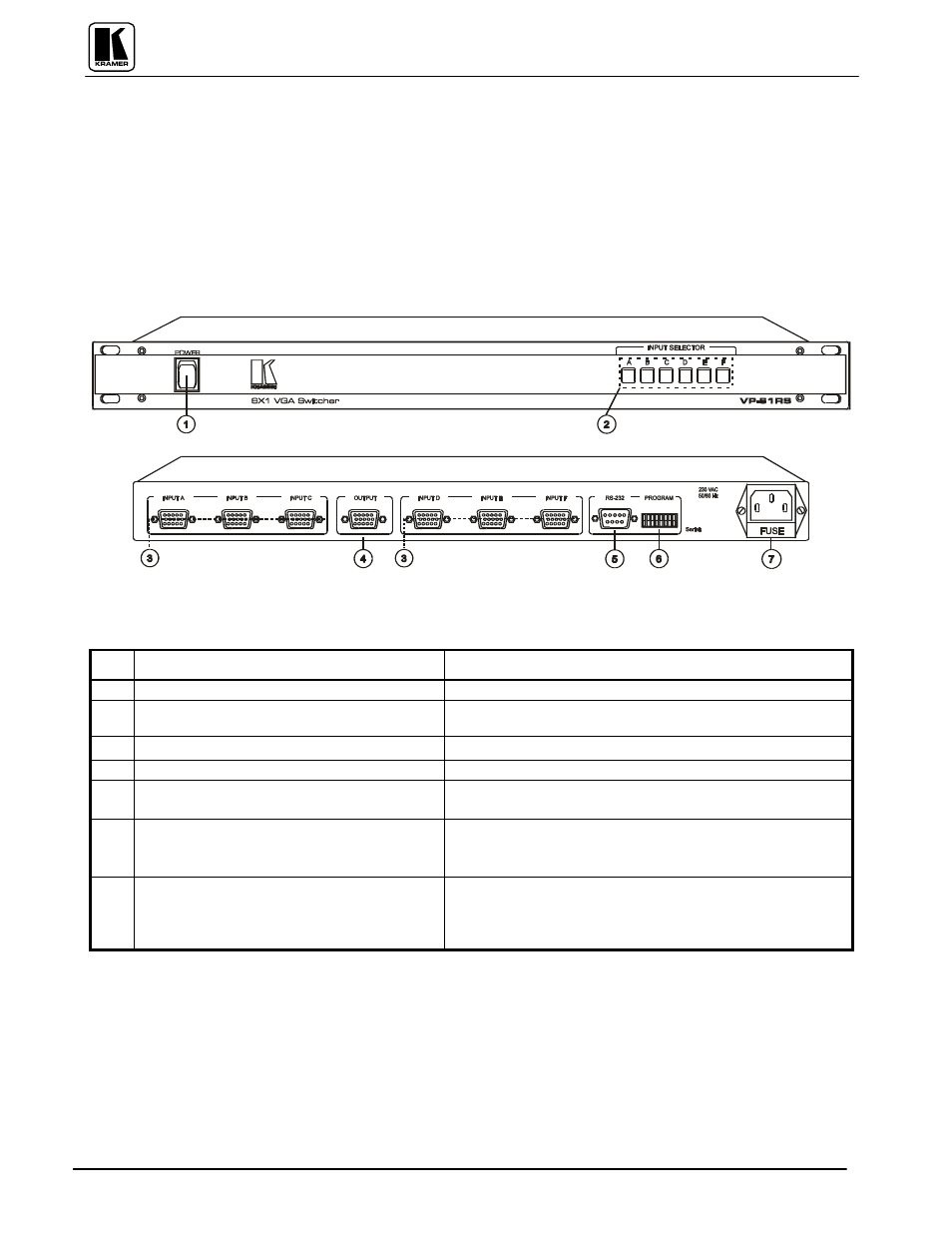

Figure 3: VP-61RS Front/Rear Panel Features
Table 3: VP-61RS Front/Rear Panel Features
No. Feature Function
1. Illuminated power switch Supplies power to the unit.
2. INPUT SELECTOR switches (A-F) Select the desired input to be switched to the output.
3. INPUT A-F HD 15F connectors 6 VGA/Super XGA inputs.
4. OUTPUT HD 15F Connector VGA/Super-XGA output.
5. RS-232 HD 15F Connector (DB-9 female
connector)
Used for control of the switcher from a PC through an
RS-232 interface.
6. PROGRAM Dip Switches Allow proper configuration of the control signals received
and transmitted through the RS-232 control port,
master/slave configurations, and device ID numbers.
7. Power connector A 3-prong AC connector allows power to be supplied to
the unit. Directly underneath this connector, a fuse holder
houses the appropriate fuse.
