HGPM-...-G..
Festo HGPM-...-G.. 0103NH English
15

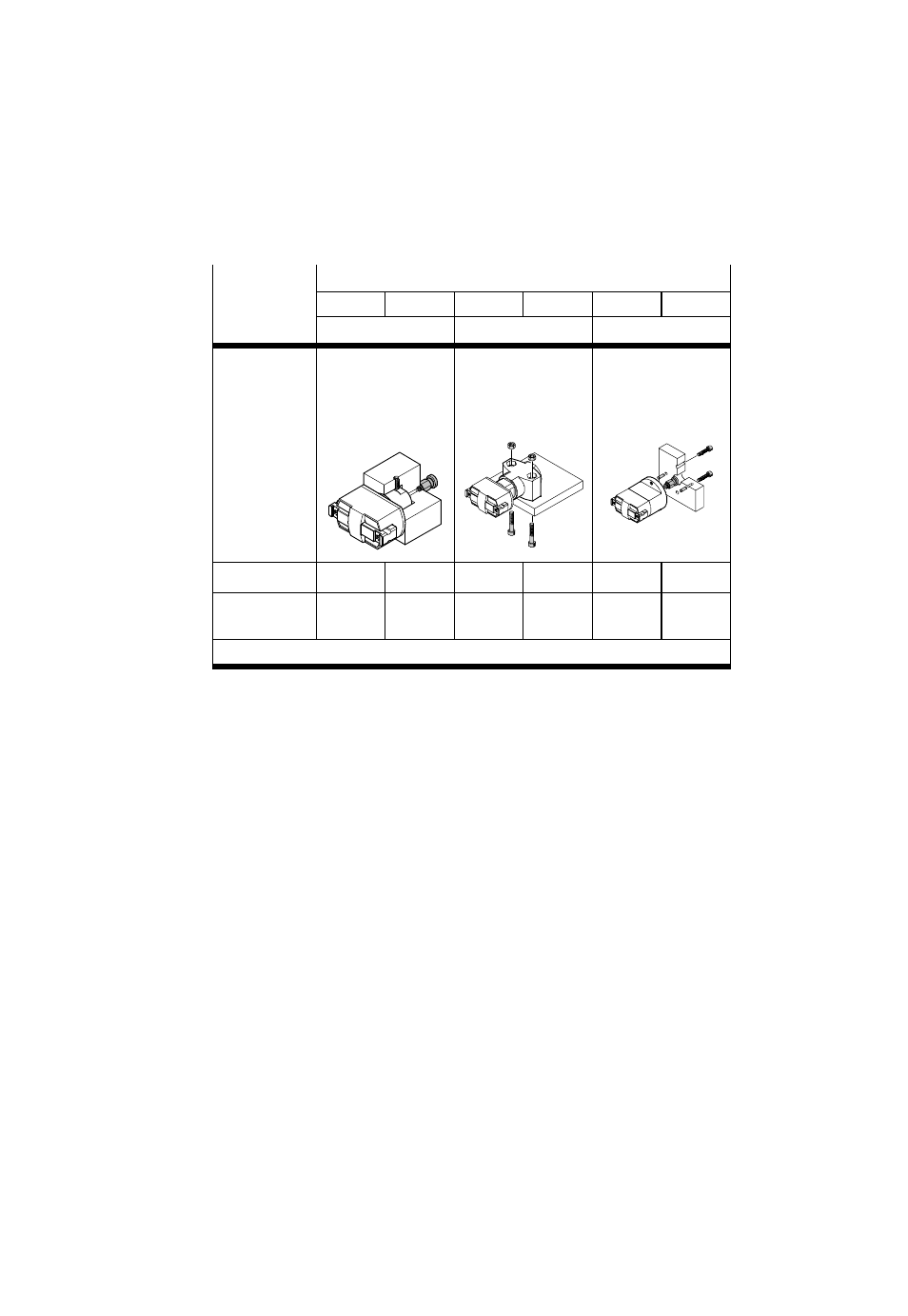

S Fasten the HGPM-... depending on the rated size according to the table below.
Type HGPM-...
08-... 12-... 08-... 12-... 08-... 12-...
G8 G6 G9
Fastening type on the clamping
surface of the
trunnion
1
by means of the
through holes in the
stroke compensa-
tion
*) 4
with the fastening
nuts supplied
3
Thread M3 M3 M3 M4 M3 M3
Max. tightening
torque 1.2 Nm 1.2 Nm 1.2 Nm 2,9 Nm 1.2 Nm 1.2 Nm
*) Fasten with adhesive
Fig. 10
