Page 9 of 23 REV.1 06/25/2012
Snorkel Installation Instructions: 2007-2011 Wrangler 2DR & 4DR Unlimited
P/N: 17756.06 - Low Mount XHD Modular Snorkel System

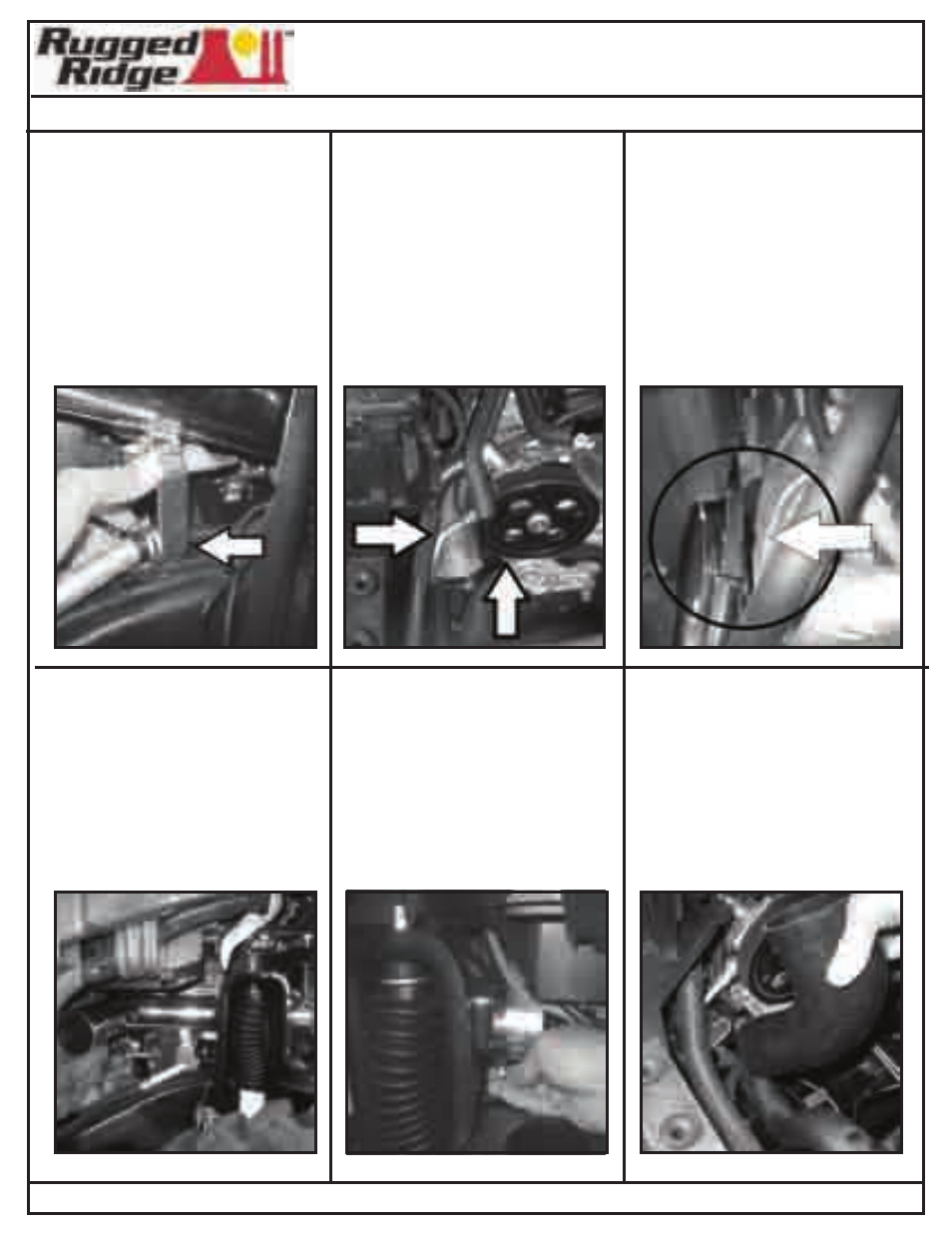

47
- Inspect front of air tube.
Tube should rest just under
the power steering pump
hard line and next to idler
pulley (arrows). The power
steering hard line can be
moved if needed. Carefully
grab the line and pull up
for additional clearance.
DO NOT OVER BEND LINE.
48
- Check clearance
between air tube heat
shield and exhaust
manifold. (circled area).
Adjust tube as needed.
Tighten bolt securing
air tube mounting
bracket to frame.
50
- Place 3” clamp over
front of air tube. Clamp
screw face should be at
the bottom of the tube
facing outward as shown.
Do Not Tighten.
49
- Tube should slope from
fire wall down toward
power steering pump.
Inspect air tube for
contact with exhaust,
shock tower and power
steering hose. If needed
carefully bend tube bracket
for clearance.
46
- Slide aluminum air tube
mounting bracket
between frame and fuel
sending unit wire
loom clamp. Thread bolt
down but do not tighten
at this time. Bracket should
be secure but able to move
for adjustment.
51
- Place 90 degree silicone
elbow onto aluminum
air tube to test fit of elbow
and new lower air box.
