Rugged Ridge XHD Low/High Mount Snorkel System, 07-11 Jeep Wrangler (JK) - Manual (Page 10)

Page 10 of 23 Revue 06/25/2012
Snorkel Installation Instructions: 2007-2011 Wrangler 2ND & 4TH Unlimited
P./N: 17756.06 - Low Mount SDK Modular Snorkel System

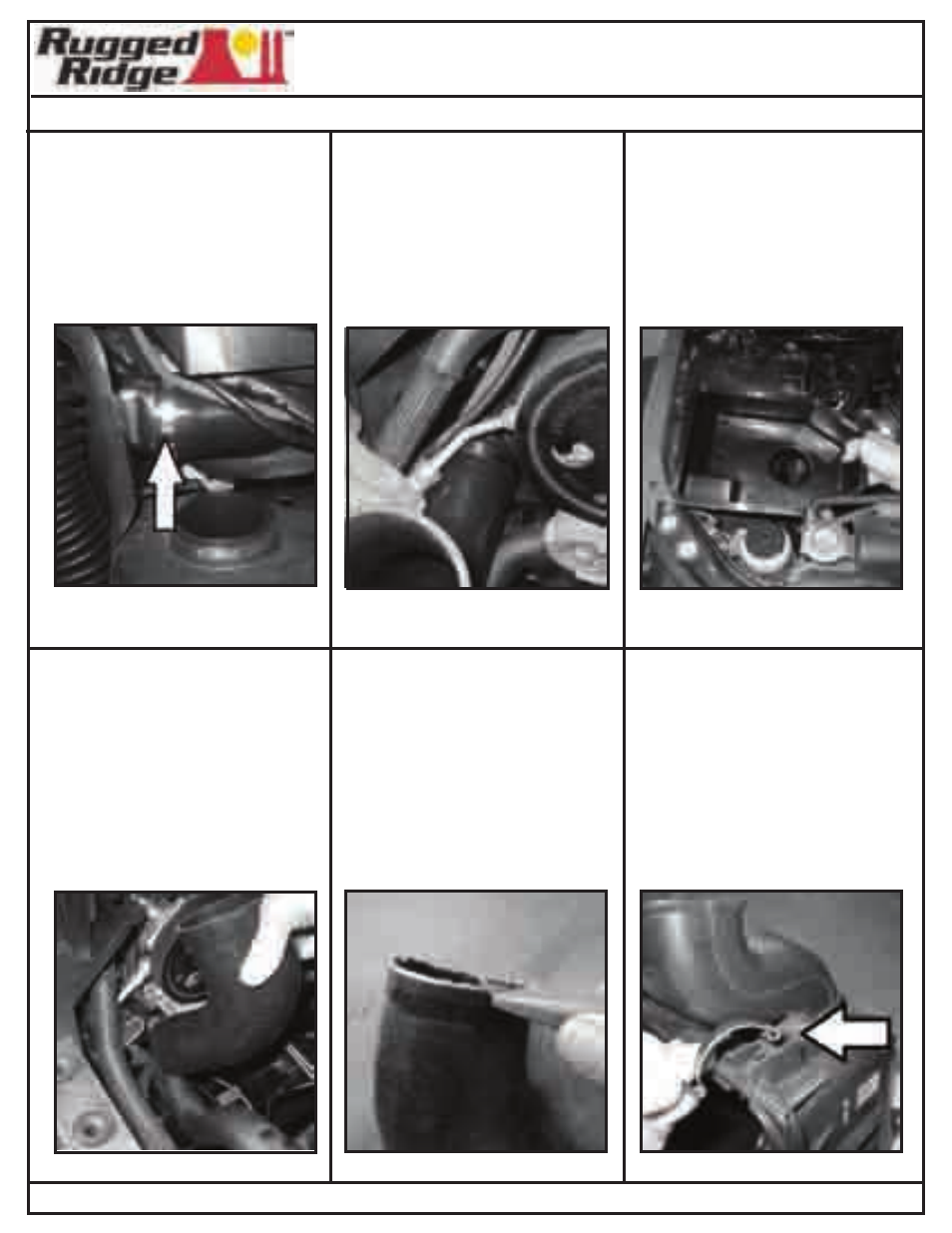

52
- Slide elbow back to notch
in air tube (arrow). Slide
clamp over boot but Do not
tighten at this time.
53
- Inspect elbow and power
steering hard-line. Hard-line
should not make contact
with elbow. Refer to step
(47) if adjustment is needed.
54
- Place new lower air box
onto elbow making sure
elbow is fully seated to
air box inlet. Air box
should rest on rubber
grommets noted in step
(43).
55
- If air box does not fit
within 1/8” of rubber
retainer grommets the
top of the silicone air
tube will need to be
trimmed. Remove air
box and elbow. If air
box fits correctly
proceed to step (57).
56
- Trim just enough of
the silicone elbow
for air box to rest
within 1/8” of rubber
grommets. Repeat
step (54) making small
adjustments to elbow
until fit is correct.
57
- Remove air box clamps
from factory lower air
box removed in step
(41). Clamps can be
removed by pushing
down and twisting
clamp to one side.
Repeat for all (4)
clamps.
