Rugged Ridge XHD Low/High Mount Snorkel System, 07-11 Jeep Wrangler (JK) User Manual
Page 20
Page 20 of 23 REV.1 06/25/2012
Snorkel Installation Instructions: 2007-2011 Wrangler 2DR & 4DR Unlimited
P/N: 17756.06 - Low Mount XHD Modular Snorkel System

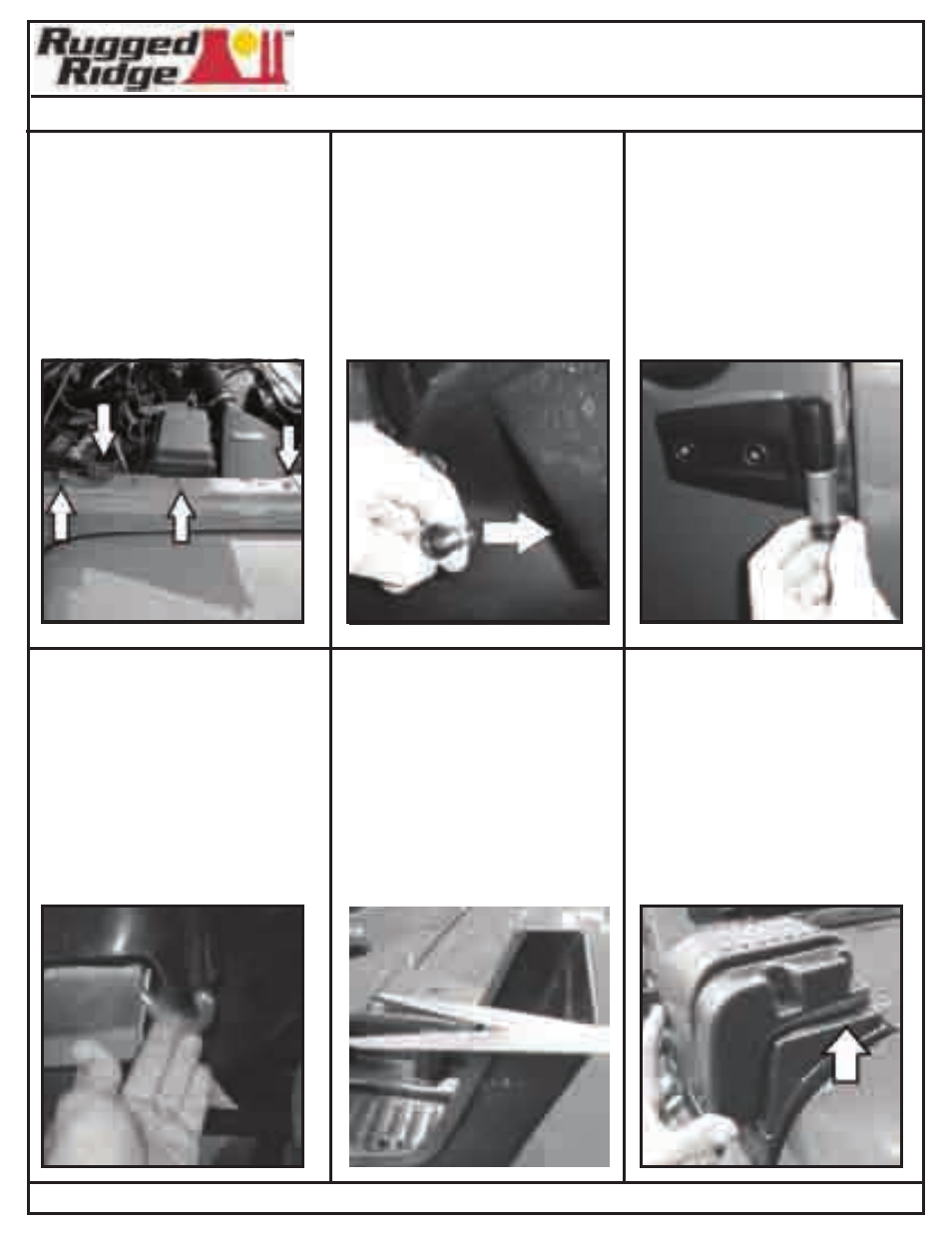

113
- Reattach side marker
bulb to inside of fender
flare. To secure bulb turn
socket clockwise.
112
- With all 13 bolts
secured double
check alignment
of fender. Tighten
all bolts.
114
- If door was removed
reinstall and secure with
factory door torx nuts.
Side steps or rock rails
should be reinstalled
at this time. The help of
a second person is
recommended.
115
- Tuck drain tube up
behind inner fender
liner and between
lower fender and
inner pinch weld.
as shown.
116
- Add “U” gasket to low
mount intake if not
already installed to
snorkel main body.
Starting from lower
intake edge work
around the intake
making sure gasket is
fitted tight to intake.
Trim gasket if needed.
117
- Rest lower intake onto
snorkel body as shown.
lower (long) M6 caps head
bolts will be started first.
