Rugged Ridge XHD Low/High Mount Snorkel System, 07-11 Jeep Wrangler (JK) User Manual
Page 13
Page 13 of 23 REV.1 06/25/2012

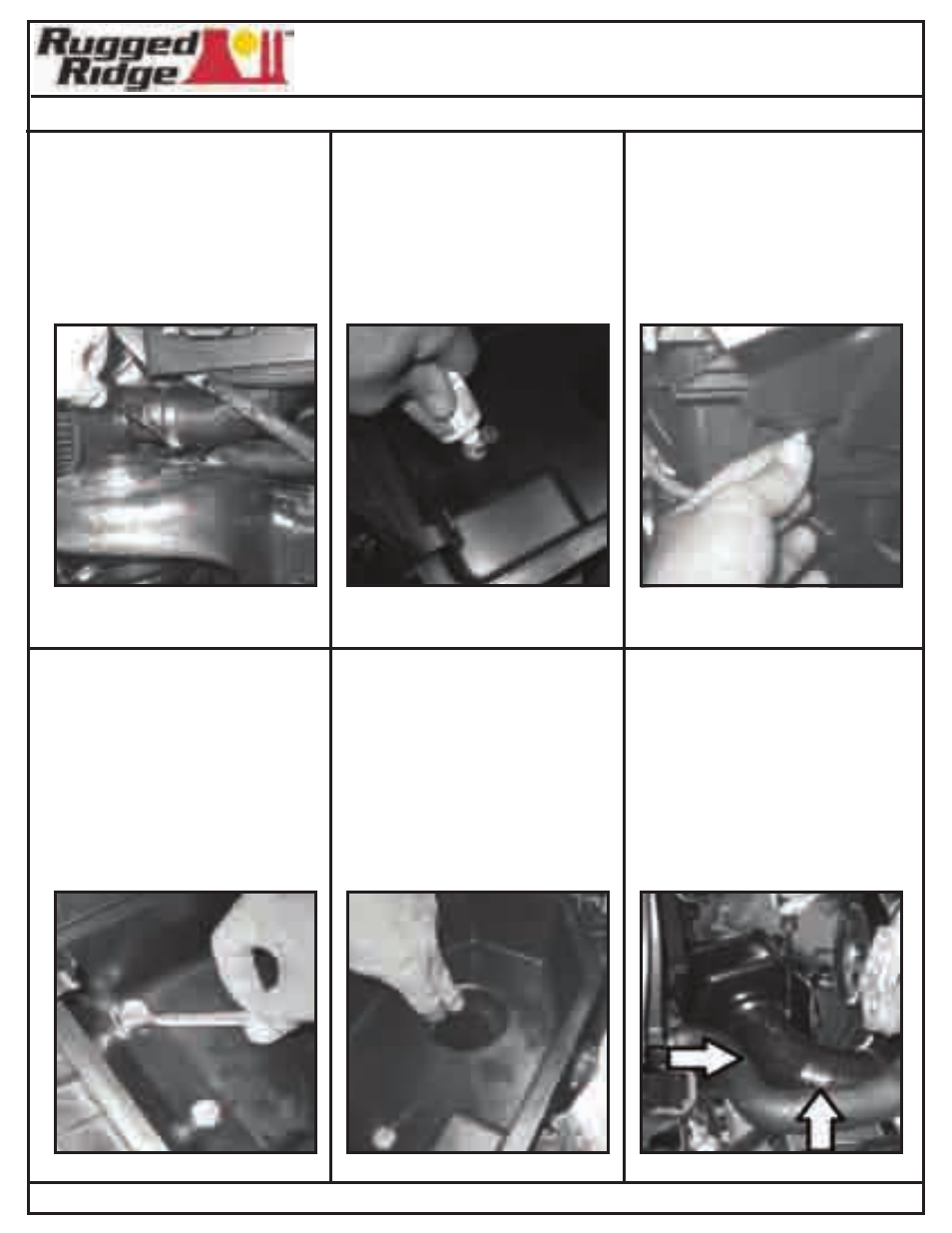

Snorkel Installation Instructions: 2007-2011 Wrangler 2DR & 4DR Unlimited
P/N: 17756.06 - Low Mount XHD Modular Snorkel System
70
- Tighten lower 3” clamp.
Clean away extra sealant.
72
- Intsall (2) M8 nuts and (2)
M8 flat washers to the
underside of inner fender
mounting plate. Add
sealant if needed to insure
a water tight seal.
73
- Tighten M8 hardware
to secure new air box
to vehicle. Inspect
sealant around bolt
heads and washers
to insure there are
no gaps. Smooth out
sealant and clean off
extra material.
75
- Inspect 90 degree elbow
around lower radiator hose.
Elbow can have minor
contact with radiator hose
but should not be deformed
or crushed. This will insure
proper air flow to lower air
box.
74
- Add sealant to inside
of air box intake. Smooth
sealant around intake
lip and silicone elbow.
70
- Insert (2) M8 x 35 bolts
with (2) M8 flat washers
through lower air box
mounting holes and
rubber grommets.
Apply a small amount
of sealant to washers.
