Goulds Pumps 3198 i-FRAME - IOM - Manual (Page 114)

Material Goulds material
code
ASTM Din ISO JIS
304SS 2228 A276 Type 304
316SS 2229 A276 Type 316
Alloy 20 2230 B473 (N08020)
317SS 2232 A276
4150 Steel 2237 A322Gr4150
4140 Steel 2238 A434Gr4140
4140 Steel 2239 A193 Gr. B7
Alloy B-2 2247 B335 (N10665)
Alloy C-276 2248 B574 (N10276)
GMP-2000 6929 N/A
PFA Lined Steel 6944 N/A
PFA Lined 316SS 6947 N/A
PFA Lined Ductile
Iron
9639 N/A
Either
side
408M
408N
122
351
444
100
101
370H
412A
131
370E 418
126 333A
469B
408A
408L
241
370F
319
228A
423B
370D
134
382
332A
400
497F
497G
136
370C
496
112
361A
372T 761B
408W 113A 168
370B 360D
497J 497H
108 370

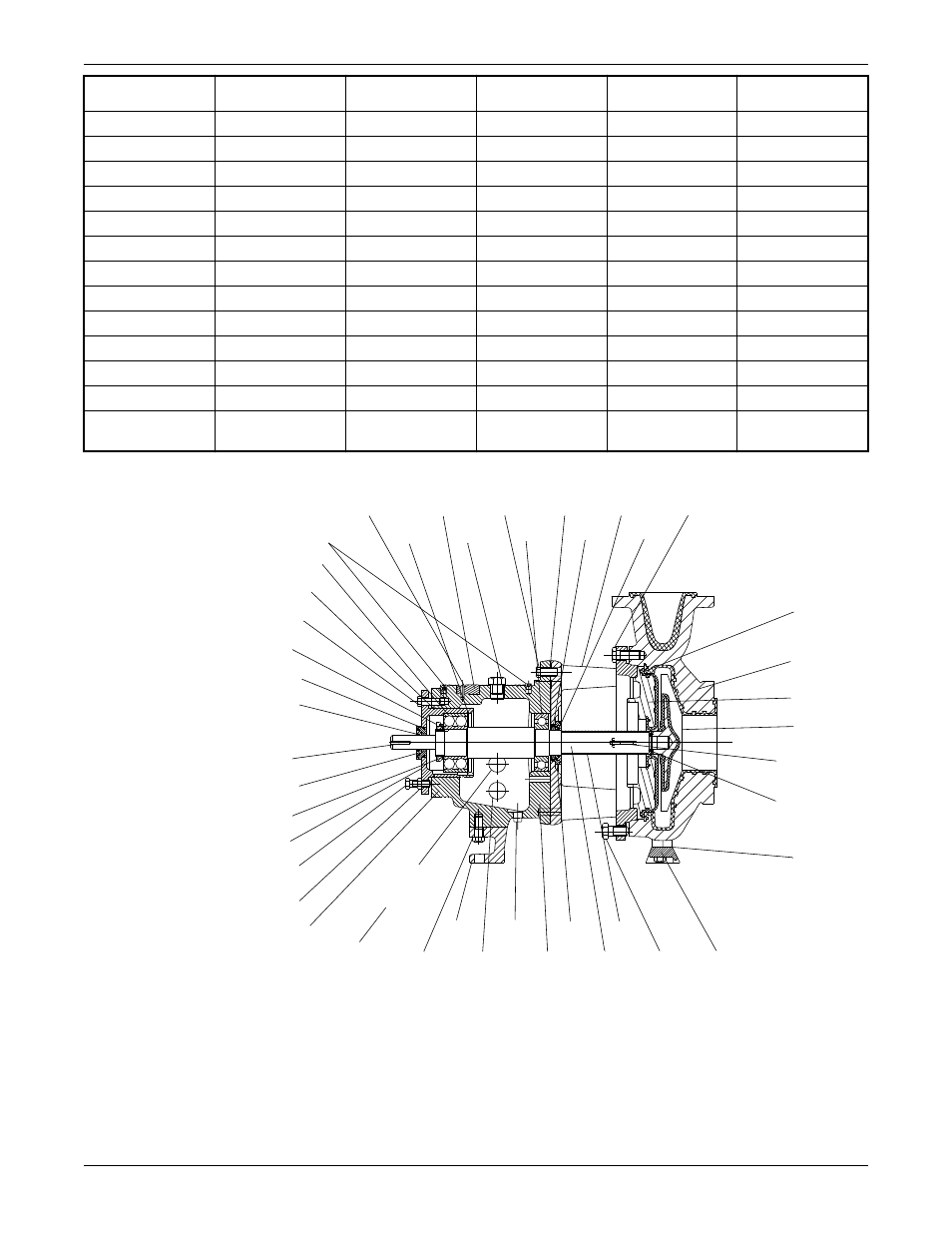

Figure 32: 3198 cross-sectional drawing
Parts Listings and Cross-Sectional Drawings
112 Model 3198 i-FRAME Installation, Operation, and Maintenance Manual
