CAUTION:
The oven and sleeve are hot. Failure to use insulated gloves could result in burns and other physical
injuries.

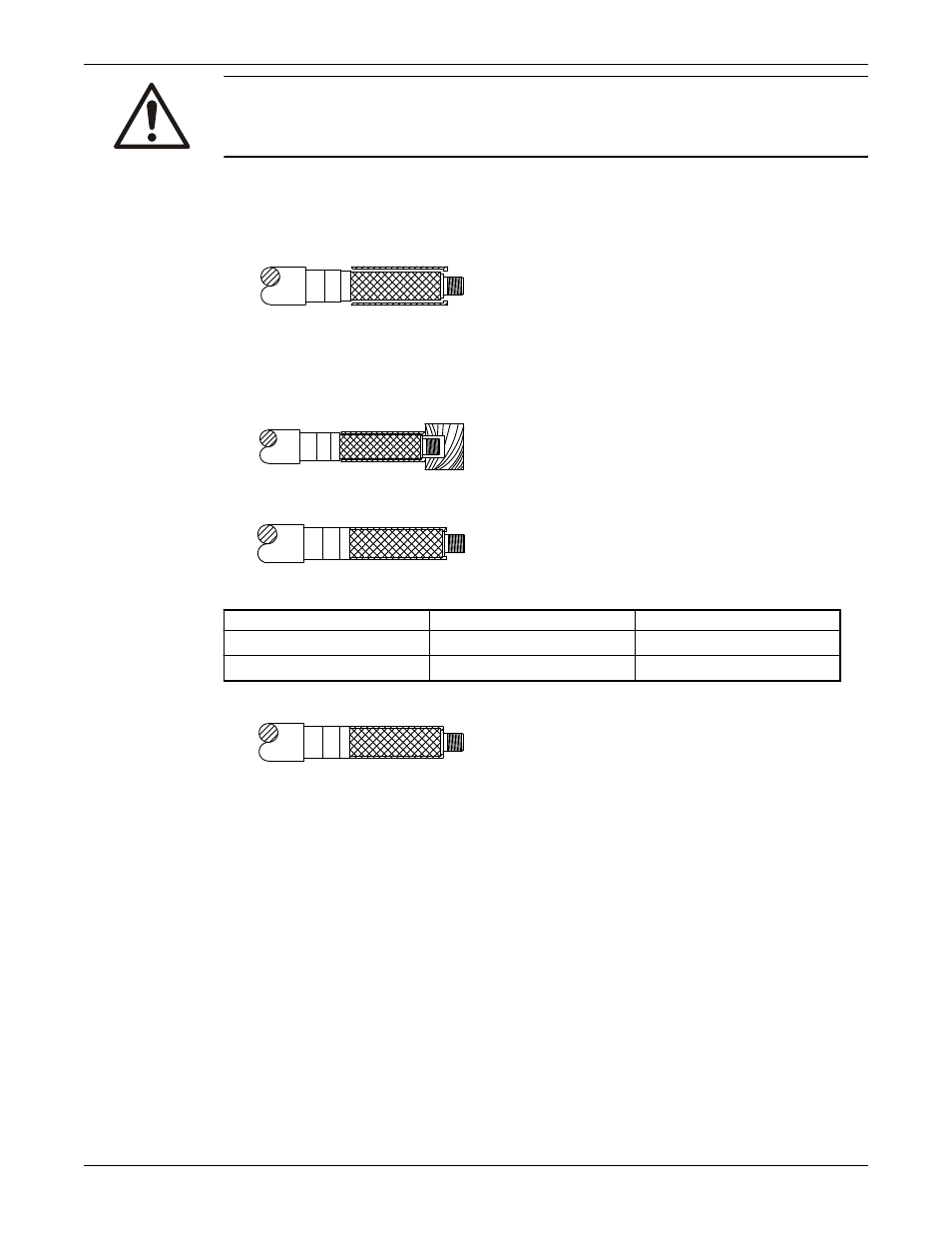

4. Remove the sleeve from the oven.
5. Slide the sleeve onto the shaft immediately after you remove it from the oven.
Push the sleeve onto the shaft until the sleeve bottoms out on the shoulder of the shaft. The hook
end of the sleeve extends beyond the knurled portion of the shaft.
6. The length of the sleeve shrinks as it cools. Apply light pressure to keep the sleeve against the shaft
shoulder.
Maintain pressure until the hook portion of the sleeve seats itself against the shoulder under the hook.
.
7. Allow the shaft and sleeve to cool completely.
8. Machine the Teflon sleeve to the dimensions and finish in this table.
Frame Sleeve OD Surface finish
STi 1.375 / 1.373 16 μ in.
MTi 1.750 / 1.748 16 μ in.
9. Face off the sleeve shoulder so that it is even with and parallel to the shaft shoulder.
Maintenance
Model 3198 i-FRAME Installation, Operation, and Maintenance Manual 105
