Chapter 6

83

27

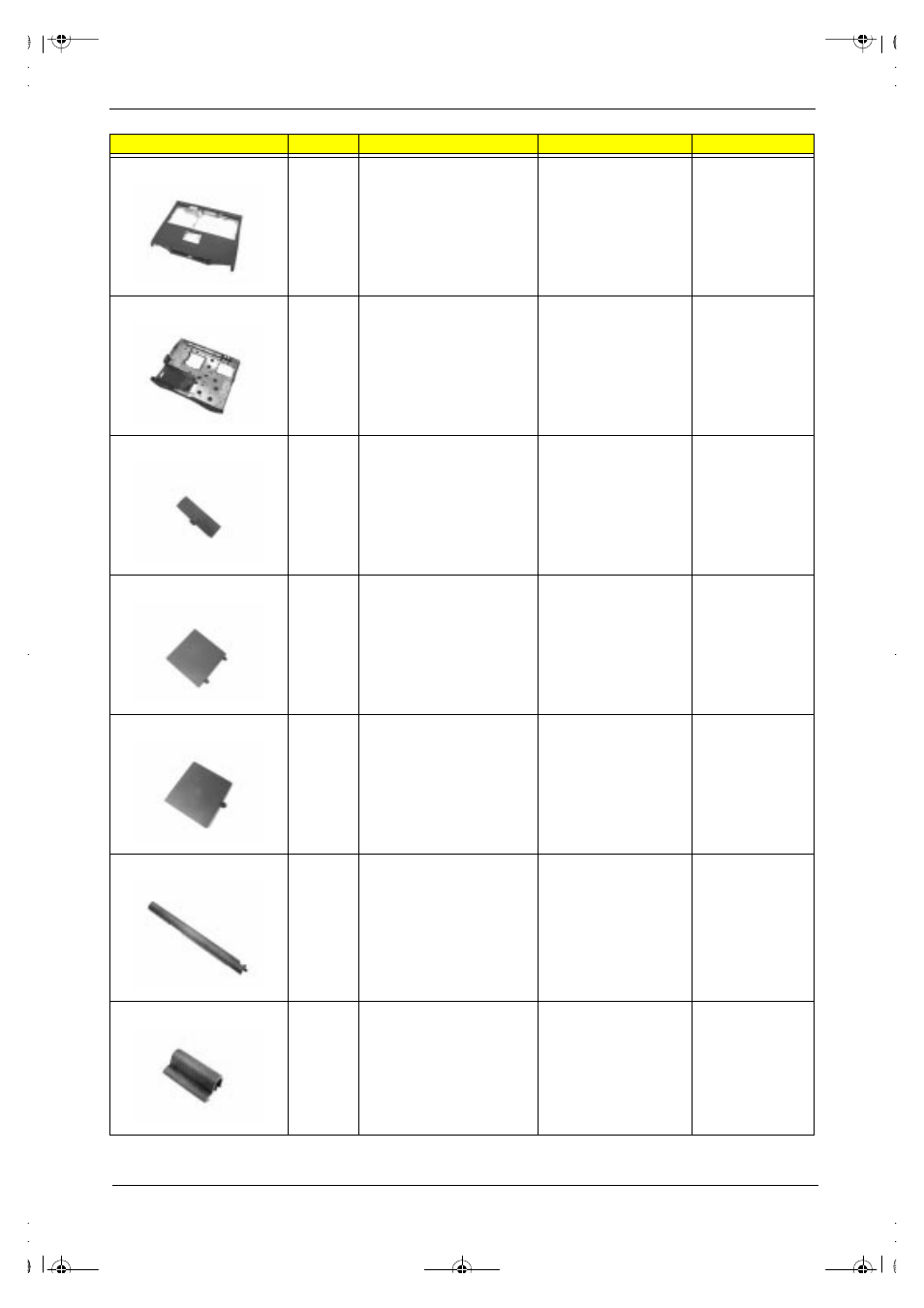

Upper case module

ASSY UP CASE
FALCON

60.43F02.001

31

Lower case module

ASSY LOW CASE
FALCON

60.43F03.001

15

Battery door

DOOR BATTERY PC
AN500

42.45B04.001

7

DIMM cover

CVR DIMM AL 050
AN500

34.45B03.002

8

Modem cover

CVR MODEM AL
AN500

34.45B04.002

13

Middle cover(Long)

CVR MIDDLE (1) PC
050 AN500

42.45B01.001

14

Middle cover(Short)

CVR MIDDLE(2)

42.45B02.002


No.

Partname

Description

Part No.
