Removing the lcd module – Acer 505 User Manual
Page 53
Chapter 3
47

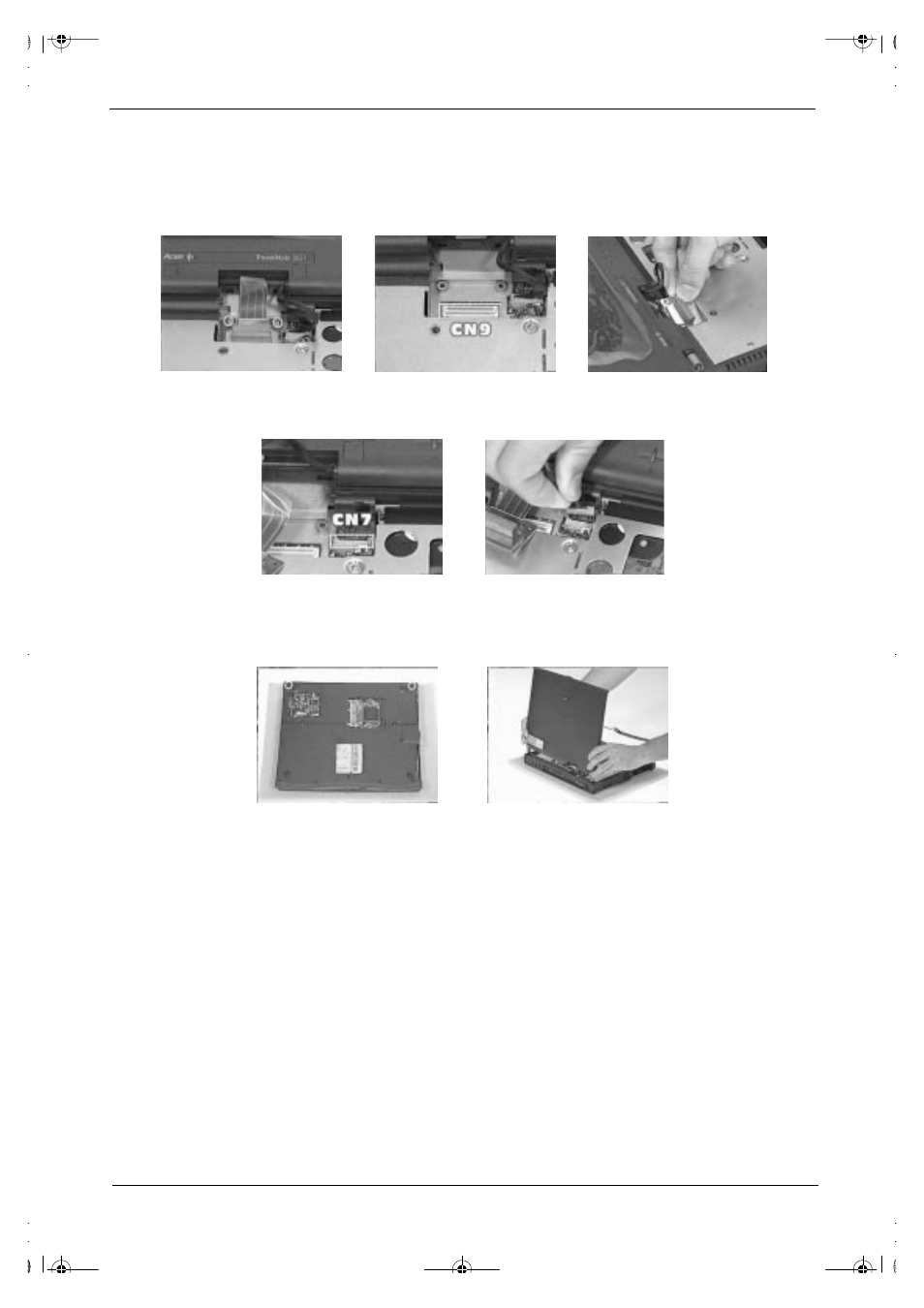

Removing the LCD Module
1.
Remove the two screws holding the LCD FPC cable
2.
At CN9, disconnect the LCD FPC cable from the mainboard.
3.
At CN7, disconnect the LED cable from the mainboard.
4.
Remove the two screws holding the LCD module as shown.
5.
Next, remove the LCD module from the main unit.
505-1.book Page 47 Thursday, November 4, 1999 4:36 PM
