Chapter 1 9

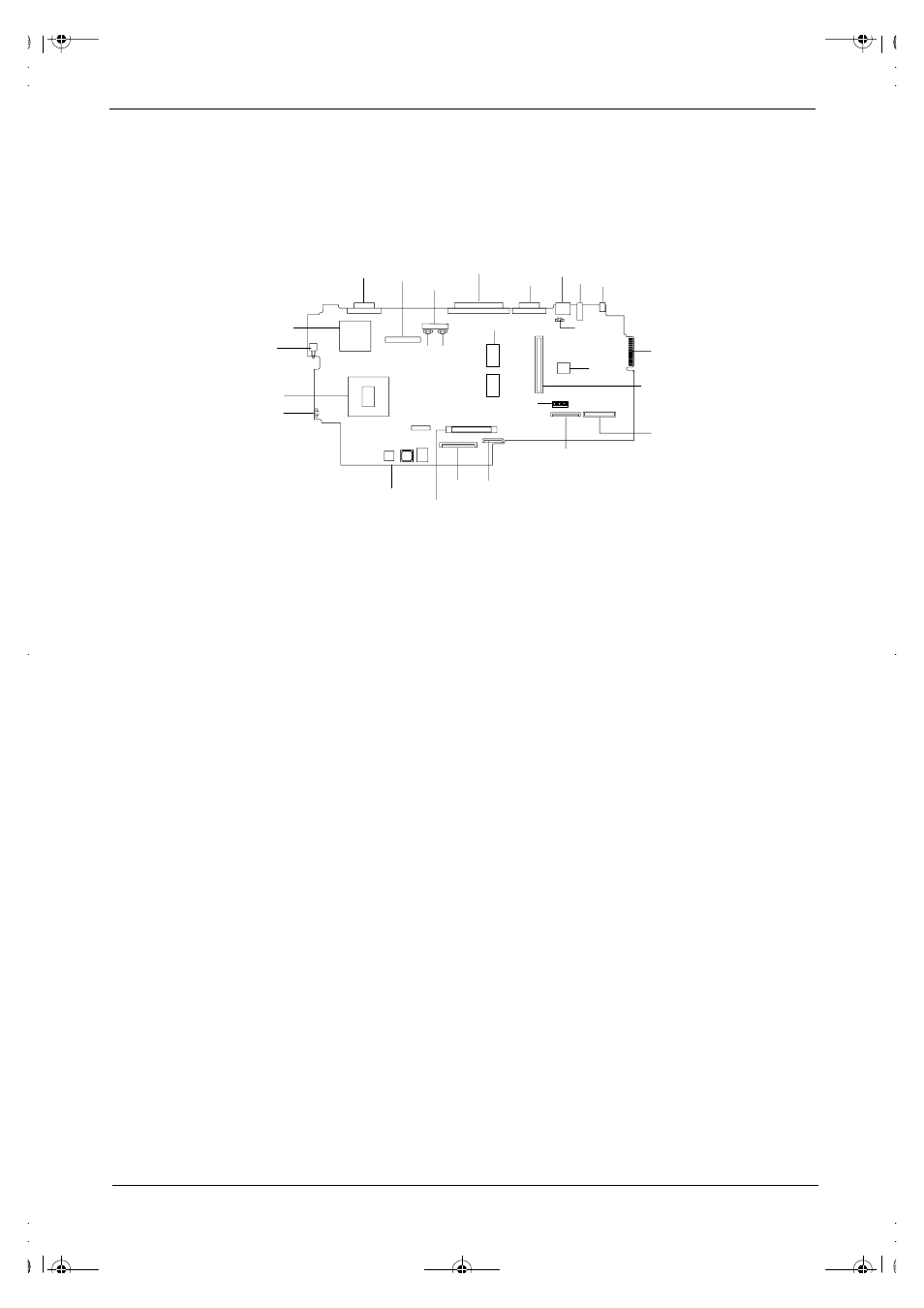

Board Layout
Top View
1 AC Adapter Connector 14 Power Push Switch
2 USB Port 15 Celeron Processor
3 LCD Corner Switch Connector 16 Fan Connector
4 PS/2 Port 17 Onboard DC/DC Charger
5 Serial Port 18 HDD Connector
6 Onboard System Memory 19 Internal Keyboard Connector
7 Parallel Port 20 Touch Pad Connector
8 LED Board Connector 21 Onboard Switch
9 RTC Battery Connector 22 Diskette Drive Connector
10 Fan Connector 23 CD-ROM Connector
11 LCD Connector 24 PCMCIA Slot
12 VGA Port 25 Keyboard Controller
13 VGA Controller 26 Golden Finger for Debug
2
12
7
26
24
3
20 19
18
14
16
21
22
23
10 9
1
4
5
6
8
11
13
17
25
15
