Acer 505 User Manual
Page 55
Chapter 3
49
7.

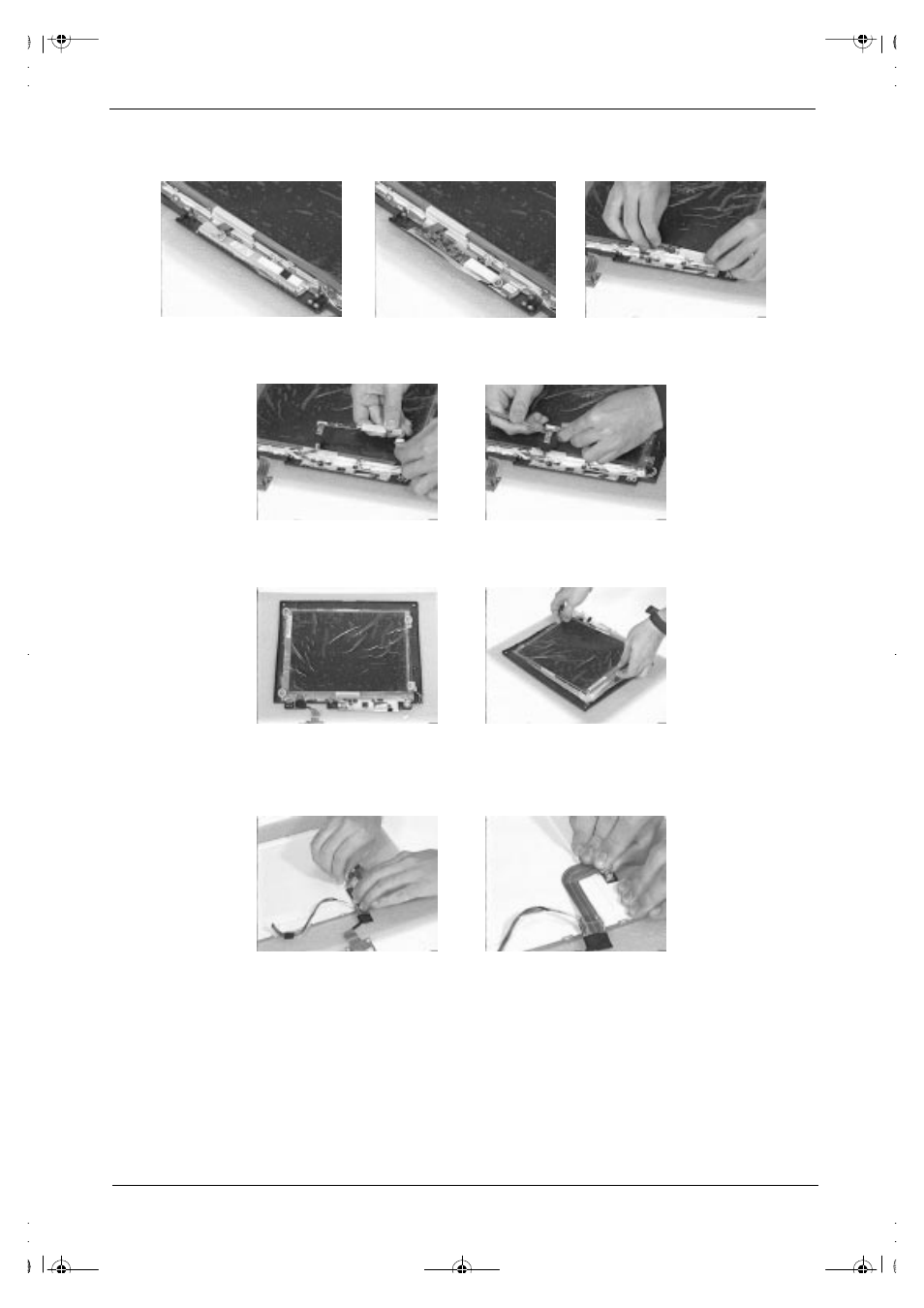

Remove the two screws holding the inverter. Now, lift off the inverter gently.
8.
Disconnect the LCD power cable and LCD FPC cable from the inverter board.
9.
Remove the four screws holding the LCD, then gently remove the LCD from the LCD panel.
10. Tear off the adhesive tape.
11. Disconnect the LCD FPC cable from the LCD.
505-1.book Page 49 Thursday, November 4, 1999 4:36 PM
