Removing the fan, Removing the mainboard – Acer 505 User Manual
Page 59
Chapter 3
53

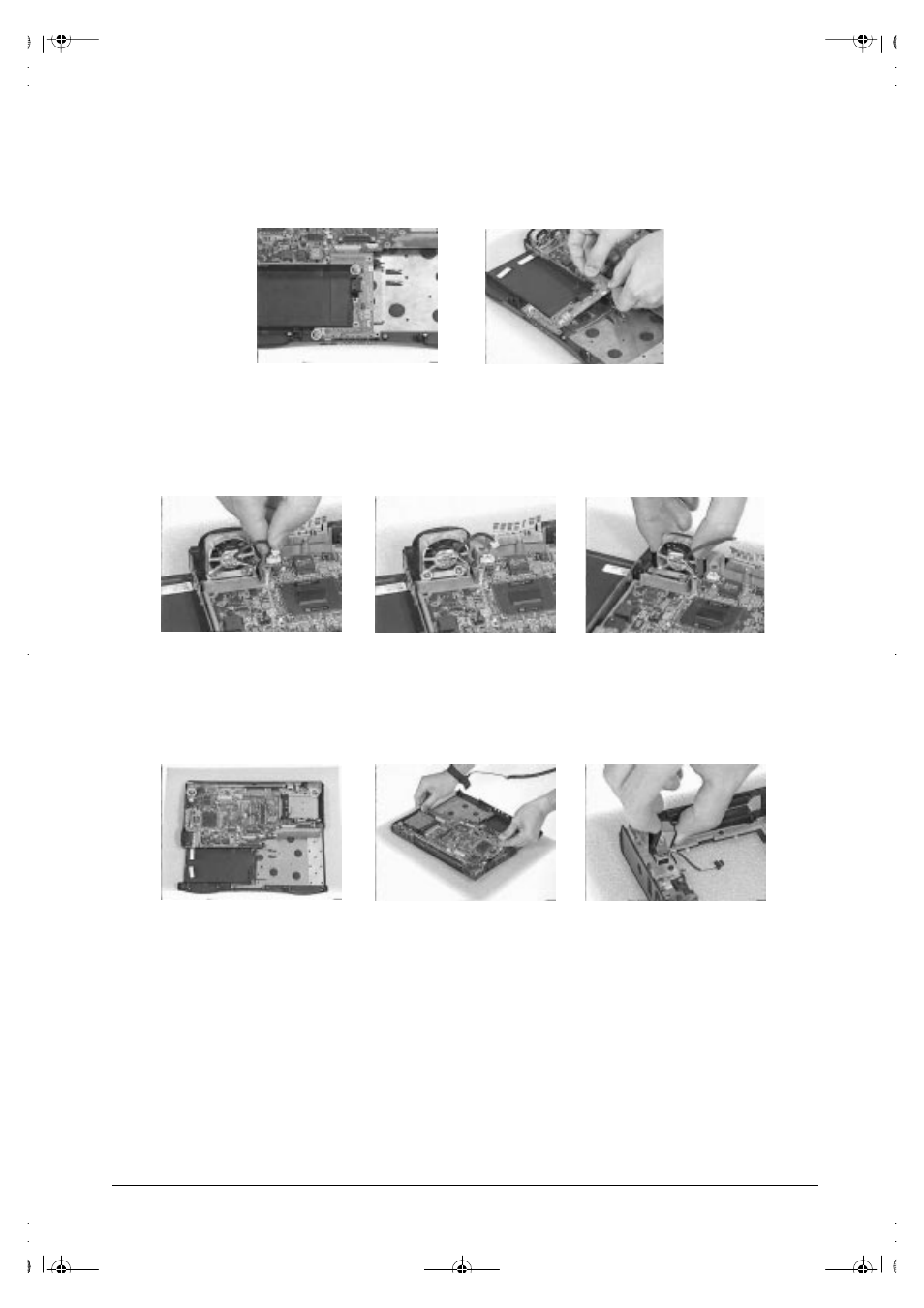

Removing the Audio I/O and Battery Connection Board
1.
Remove the two screws holding the audio I/O and battery connection board, then remove it from the
mainboard.
Removing the Fan
1.
Disconnect the fan cable from the mainboard.
2.
Remove the two screws holding the fan, then lift the fan from the lower case.
Removing the Mainboard
1.
Remove the two screws holding the mainboard, then remove the mainboard from the lower case.
2.
Remove the modem phone jack connector from the lower case.
505-1.book Page 53 Thursday, November 4, 1999 4:36 PM
