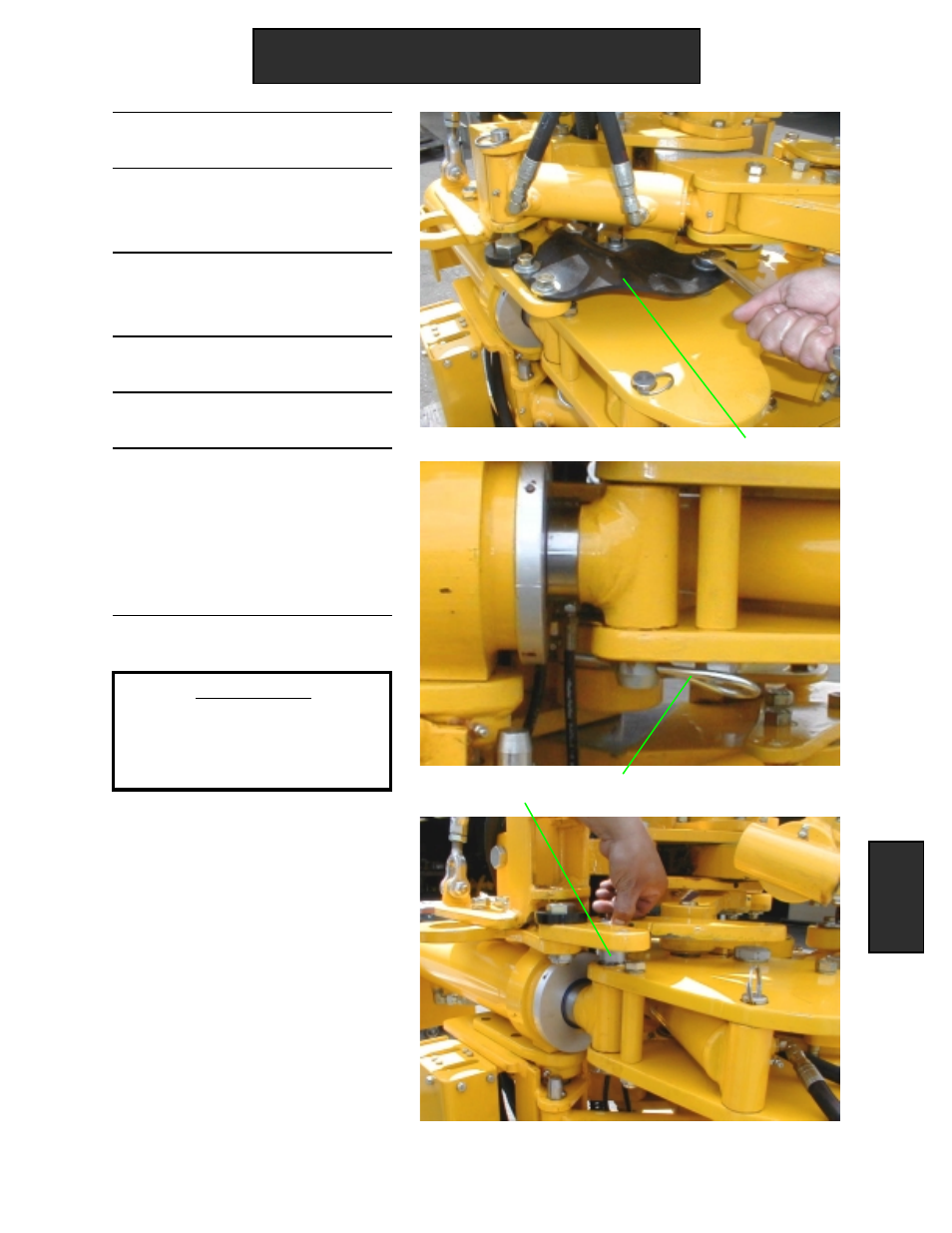

4. Pull out the Top Grip Cylinder
Rod side Pin (TGP).
5. Pivot out the Top Grip
Cylinder (TC) to expose the
Torque Cylinder Rod Pin (P).
6. Remove the Torque Cylinder Rod
Pin Rubber Safety Cover (S).
This feature on some older models.
7. Pull out the Torque Cylinder
Safety Clip (SC).
8. Pull out the Torque Cylinder Rod
Pin (P).
9. Use the 1 1/8" wrench to slowly
loosen the Rod side Hose (RH)
on the rod side of the torque
cylinder. Check for fluid flow.
Bleed any pressure. Disconnect
the Rod side Hose (RH).
Changing the Torque Cylinder
Maintenance
& Repair
Continued on next page.
S
SC
P
Maintenance & Repair 51
WARNING:
Safety Cover (S) must remain
on the unit during operation or
injury may result.
