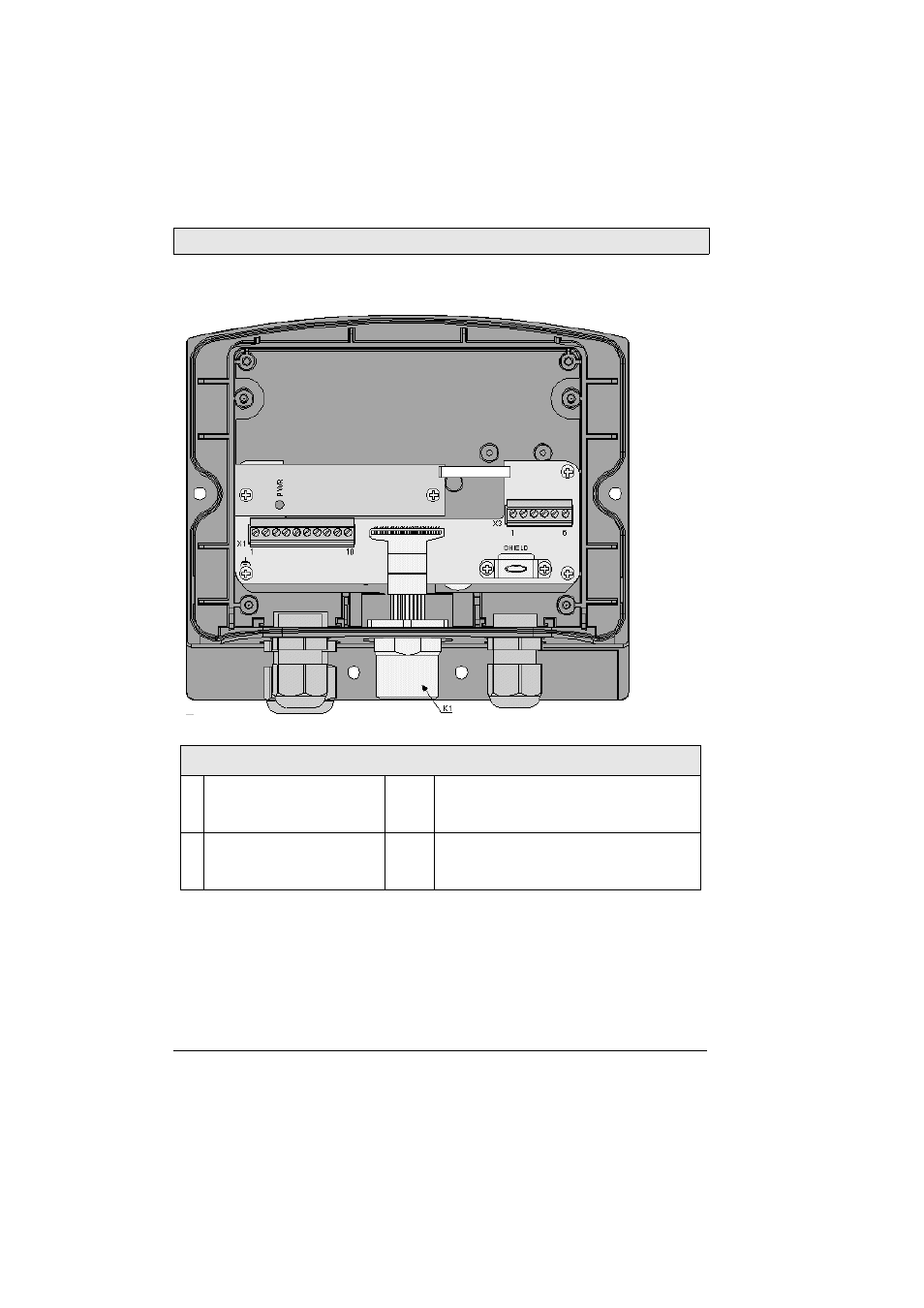

14.3 Interior View of Connection Box
Parts of connection box, marking according to drawing above
K1 17-pin female connector
(Coninvers) for CABTTxxx
connection cable
X3 Terminal block for data lines
X1 Terminal block for power
and control lines (enabling
switch and emergency stop)
SHIELD Cable shield clamp with connection
surface for cable shield of data lines (not
used for strain-relief of the cable!)
