Disassembling the display, Removing the lcd bumpers, Removing the display bezel screws – Acer 365 User Manual
Page 71: 7 disassembling the display
Disassembly and Unit Replacement
3-21
3.7
Disassembling the Display
Follow these steps to disassemble the display:
1.
Remove the two oval LCD bumpers at the top of the display; use a pointed instrument to
remove the two mylar stickers on the bottom of the display.

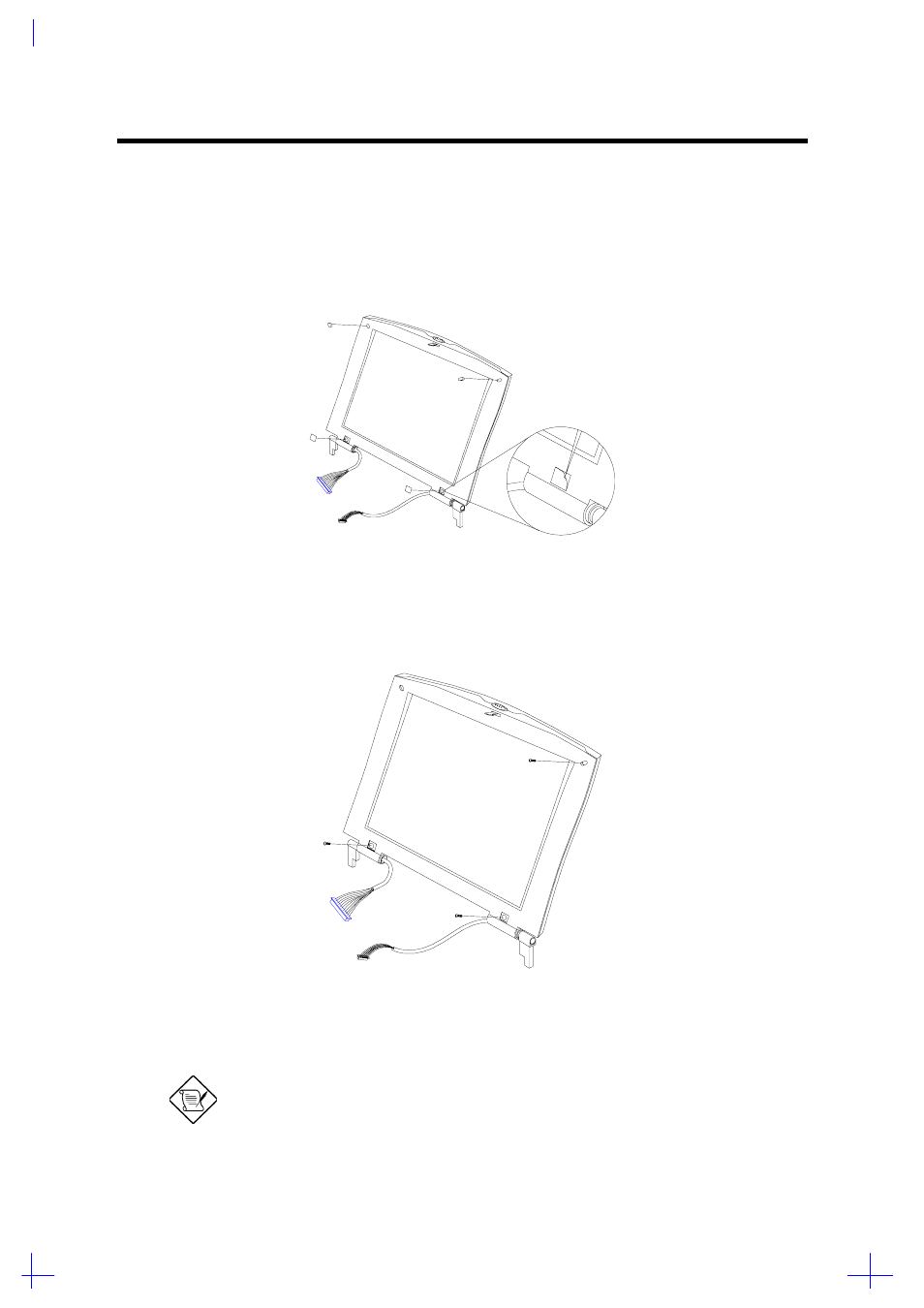

Figure 3-28
Removing the LCD Bumpers
2.
Remove four screws on the display bezel.
Figure 3-29
Removing the Display Bezel Screws
STN and TFT LCDs use the same bezel but different panels.
