Service Guide
3.6
Disassembling the Inside Frame Assembly
This section discusses how to disassemble the housing, and during its course, includes removing
and replacing of certain major components like the internal drive (CD-ROM or floppy), CPU and the
main board. Follow these steps:
3.6.1
Removing the Heat Sink Assembly
Follow these steps to remove the heat sink assembly:
1.
Pull up and remove the LED cover.

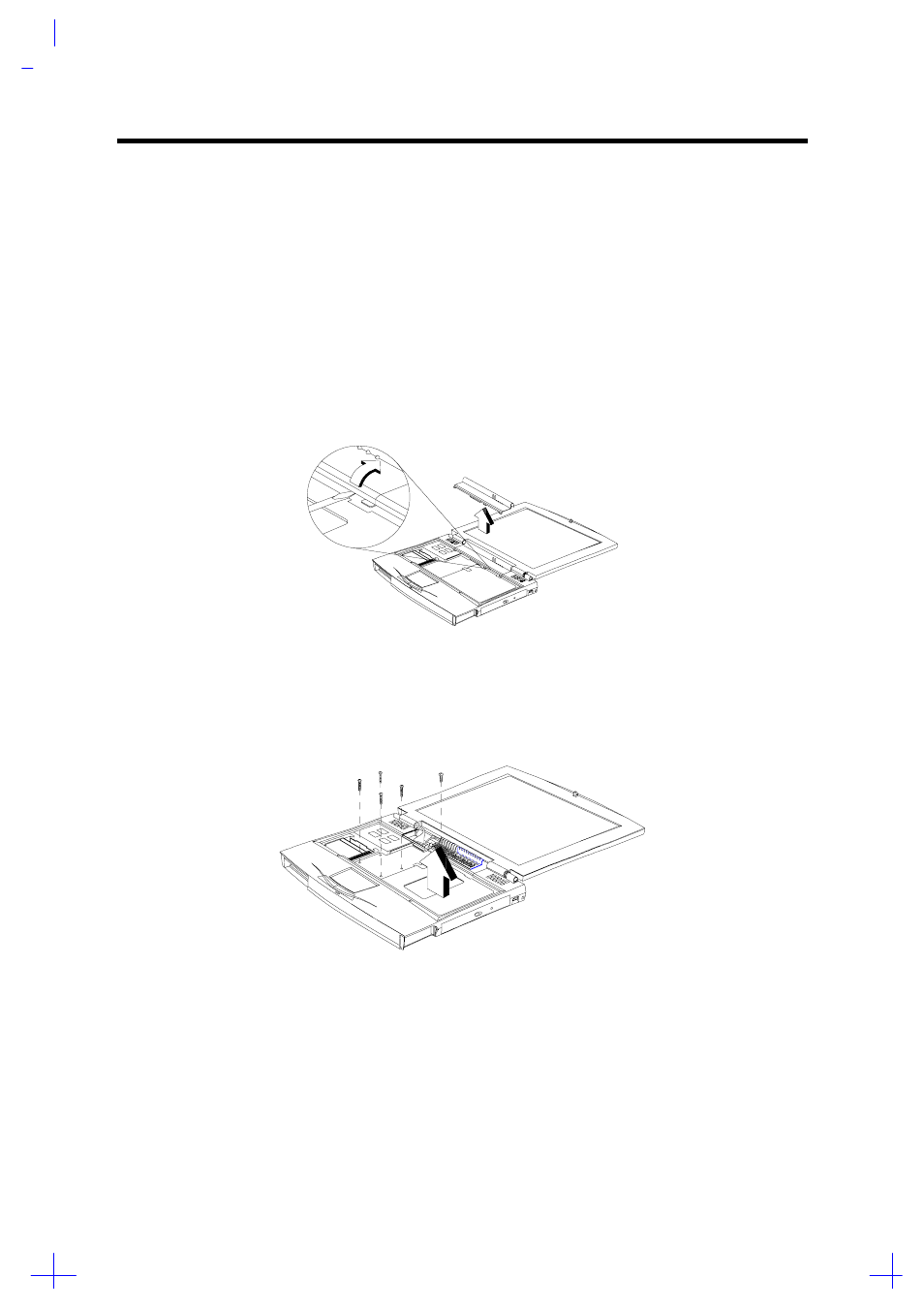

Figure 3-11
Removing the LED Cover
2.
Remove the five screws that secure the heat sink assembly to the housing.
Figure 3-12
Removing the Heat Sink Assembly
