Detaching the top cover, 18 removing, Cables – Acer 365 User Manual
Page 66: 19 removing
3-16
Service Guide
3.6.5

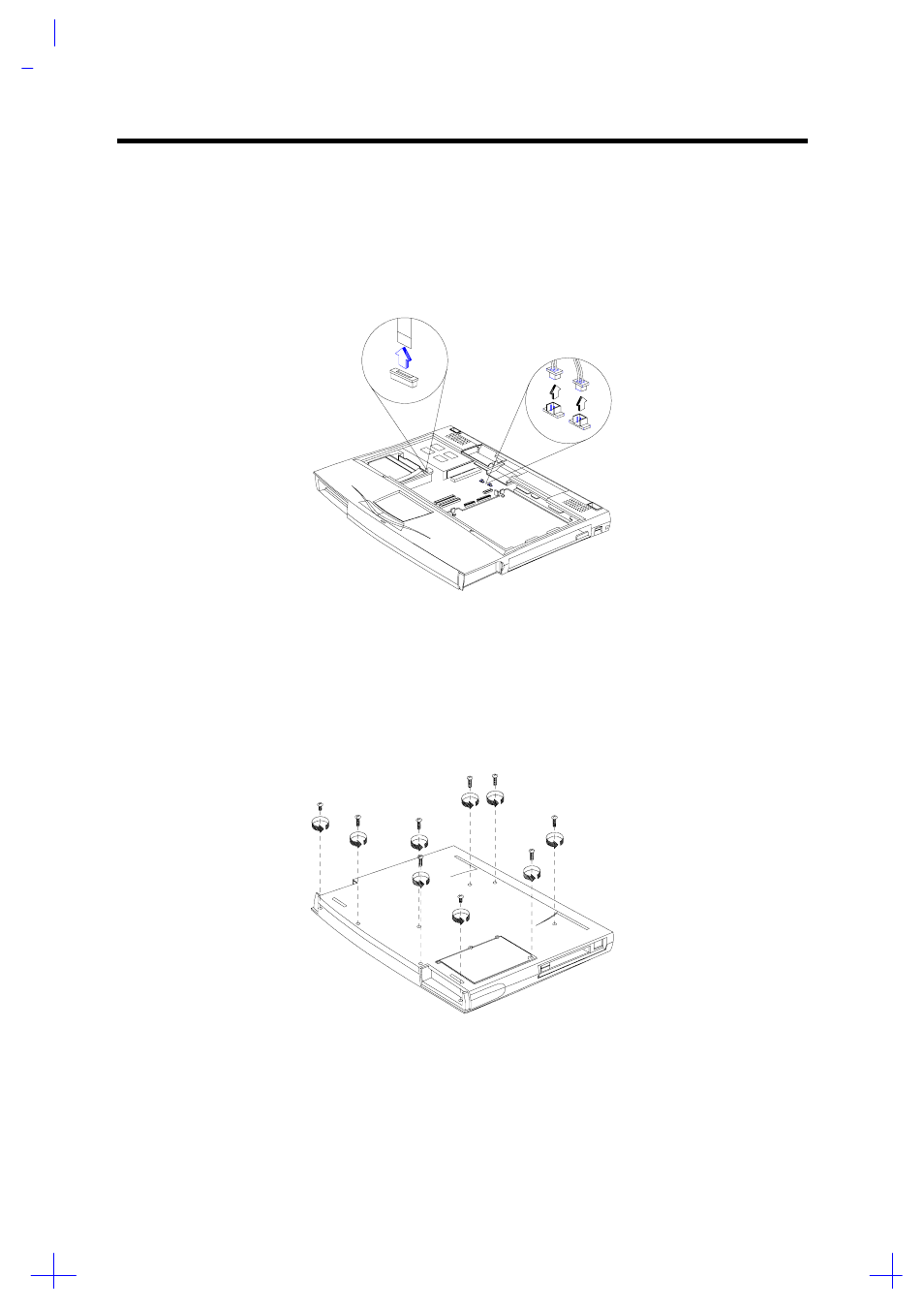

Detaching the Top Cover
Follow these steps to detach the top cover from the bottom cover:
1.
Unplug the touchpad cable (CN6) from the keyboard/touchpad board and speaker cables (CN9
and CN10).
Figure 3-18
Removing Cables
2.
Remove the screws found on the lower case (ten total screws, two screws shorter than the rest
found on the front corners of the computer).
Figure 3-19
Removing Cables
