Wiring diagrams, Final installation steps, Single speed, single phase motor – COOK Propeller Upblast User Manual

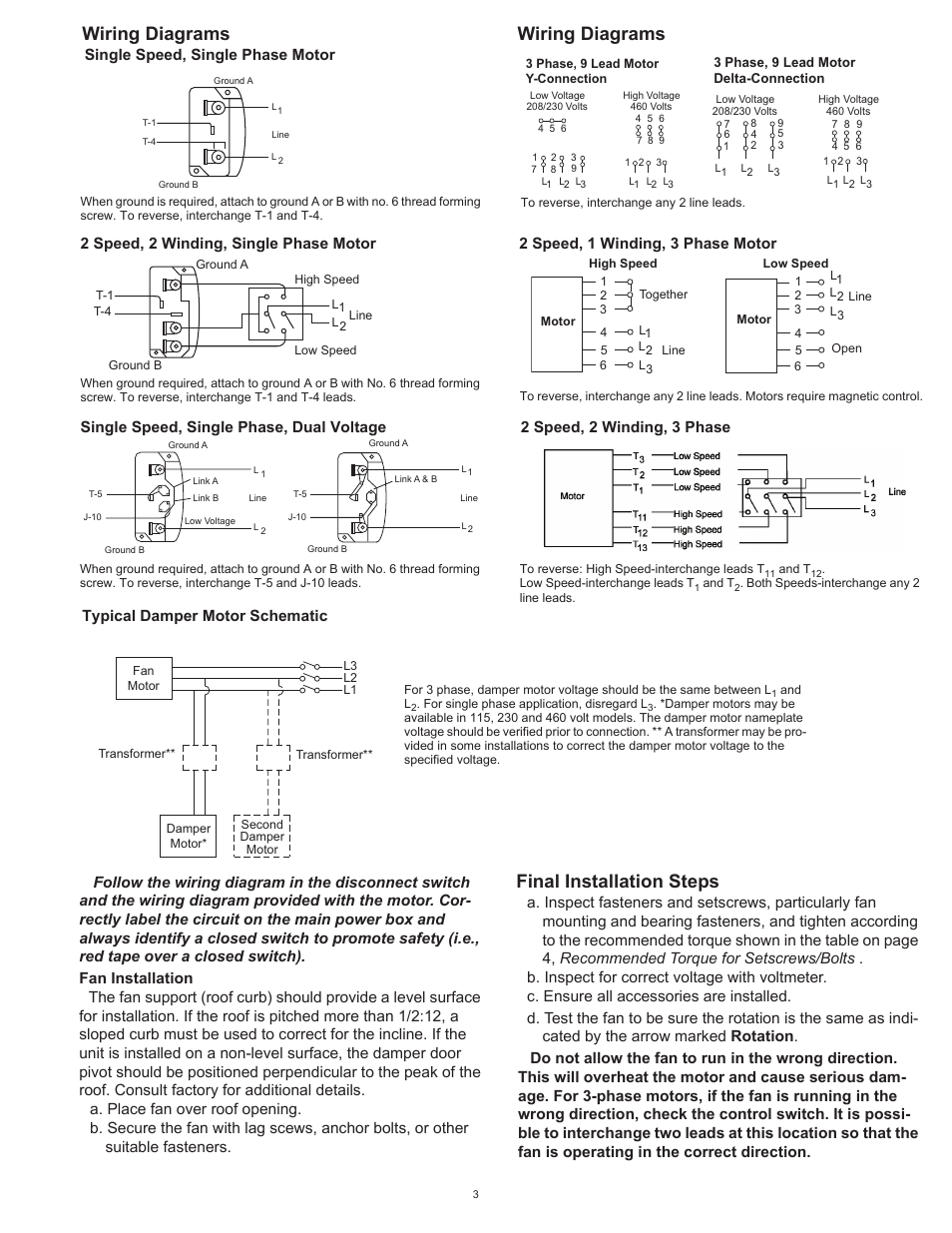

Page 3: Typical damper motor schematic
