COOK IMH - Manual (Page 8)

8
1
2
3
4
5 6
7
8
9
10
11
12
13
14
15
16

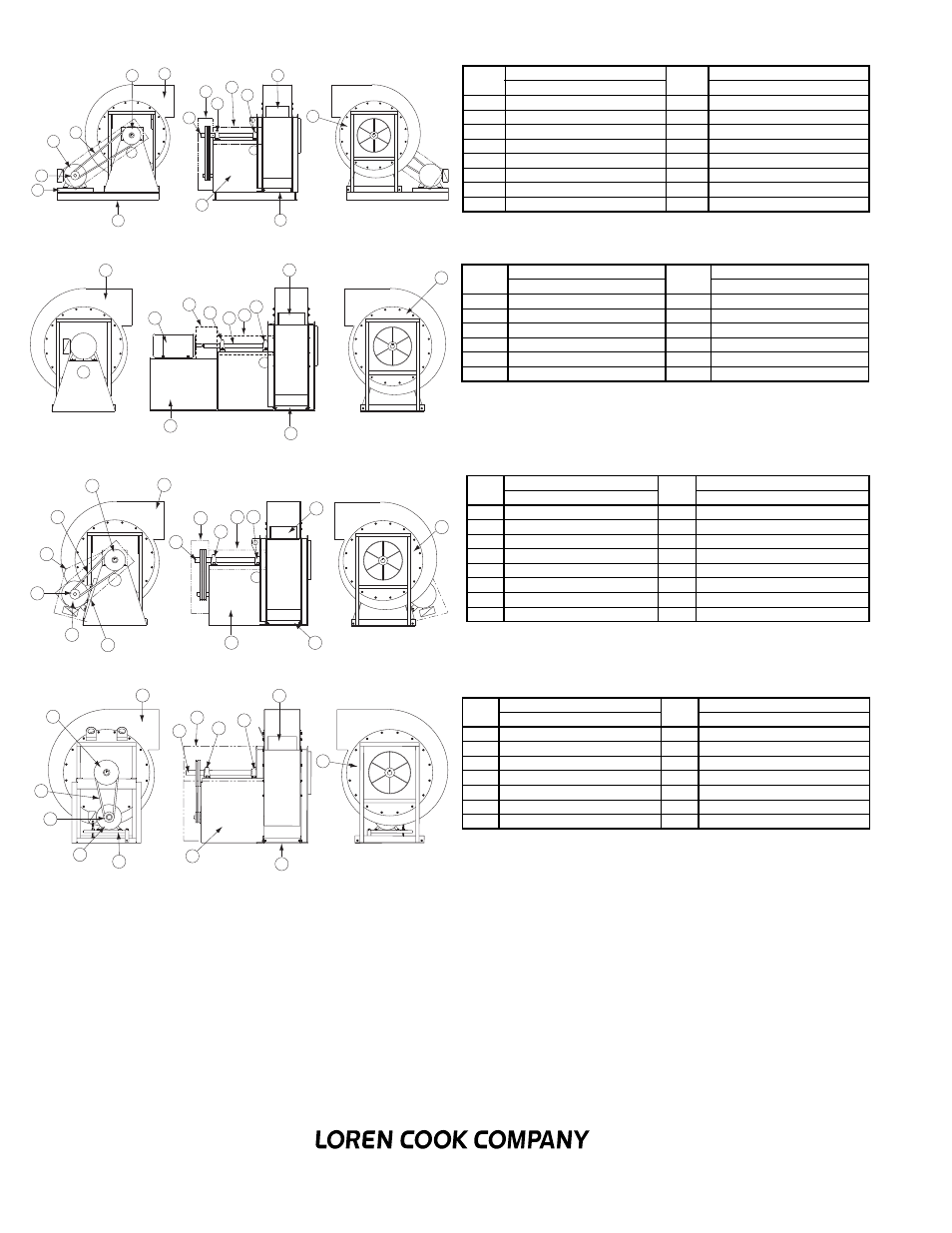

IMH Parts List - Arrangement 1
Part
No.
Arrangement 1 Part
No.
Arrangement 1
Sizes 70-290 Sizes 70-290
1 Motor Slide Base (Optional) 9 Drive Side Bearing
2 Motor Sheave 10 Shaft Guard (Optional)
3 Motor 11 Opposite Drive Side Bearing
4 Belt Set 12 Wheel
5 Fan Sheave 13 Inlet Side Panel
6 Housing 14 Spreader Bar (2)
7 Shaft 15 Bearing Pedestal
8 Belt Guard (Optional) 16 Isolation Base (Optional)
1
2
3
4
5 6
7
8
9
10
11
IMH Parts List - Arrangement 8
Part
No.
Arrangement 8 Part
No.
Arrangement 8
Sizes 70-920 Sizes 70-920
1 Housing 7 Opposite Drive Side Bearing
2 Motor 8 Wheel
3 Optional Coupling Guard 9 Inlet Side Panel
4 Drive Side Bearing 10 Spreader Bar (2)
5 Shaft 11 Motor/Bearing Pedestal
6 Shaft Guard (Optional)
1
2
3
4 5
6
7
8
9 10
11
12
13 14 15
16
IMH Parts List - Arrangement 9
Part
No.
Arrangement 9 Part
No.
Arrangement 9
Sizes 70-290 Sizes 70-290
1 Motor Sheave 9 Shaft Guard (Optional)
2 Motor Cover (optional) 10 Opposite Drive Side Bearing
3 Belt Set 11 Wheel
4 Fan Sheave 12 Inlet Side Panel
5 Housing 13 Spreader Bar (2)
6 Shaft 14 Bearing Pedestal
7 Belt Guard (Optional) 15 Motor Slide Base
8 Drive Side Bearing 16 Motor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Part
No.
Arrangement 10 Part
No.
Arrangement 10
Sizes 70 - 290 Sizes 70 - 290
1 Motor Sheave 8 Opposite Drive Side Bearing
2 Belt Set 9 Wheel
3 Fan Sheave 10 Inlet Side Panel
4 Housing 11 Spreader Bar (2)
5 Shaft 12 Bearing Pedestal
6 Weather Cover/Belt Guard 13 Motor Mount Assembly
7 Drive Side Bearing 14 Motor
