15

Part

Number

Description

Quantity

1

Supply Blower Access Door

1

2

Coil Cover Panel

1

3

Fluid Coil Cover

Varies

4

Fluid Coil Grommet - 1-7/8 I.D.

Varies

5

DX Coil Access Door

1

6

Condensate Drain Pipe

1

7

DX Coil Cover

Varies

8

DX Coil Grommet - 1-5/8 I.D.

Varies

9

Cassette Access Door

1

10

Front Panel (Not Shown)

1

11

Preheater (Optional)

1

12

Filter Access Door

1

13

Cooling Coil (DX or CW) - Optional

(1) Size 1500-3500, (2) Size 4500 & Up

14

Heating Coil (HW or Electric) - Optional

(1) Size 1500-3500, (2) Size 4500 & Up, (1) Electric

15

Secondary Block Off Panel

1

16

Drain Pan (Not Shown)

1 (Supplied with Cooling Coil)

17

Topcap (Not Shown)

2

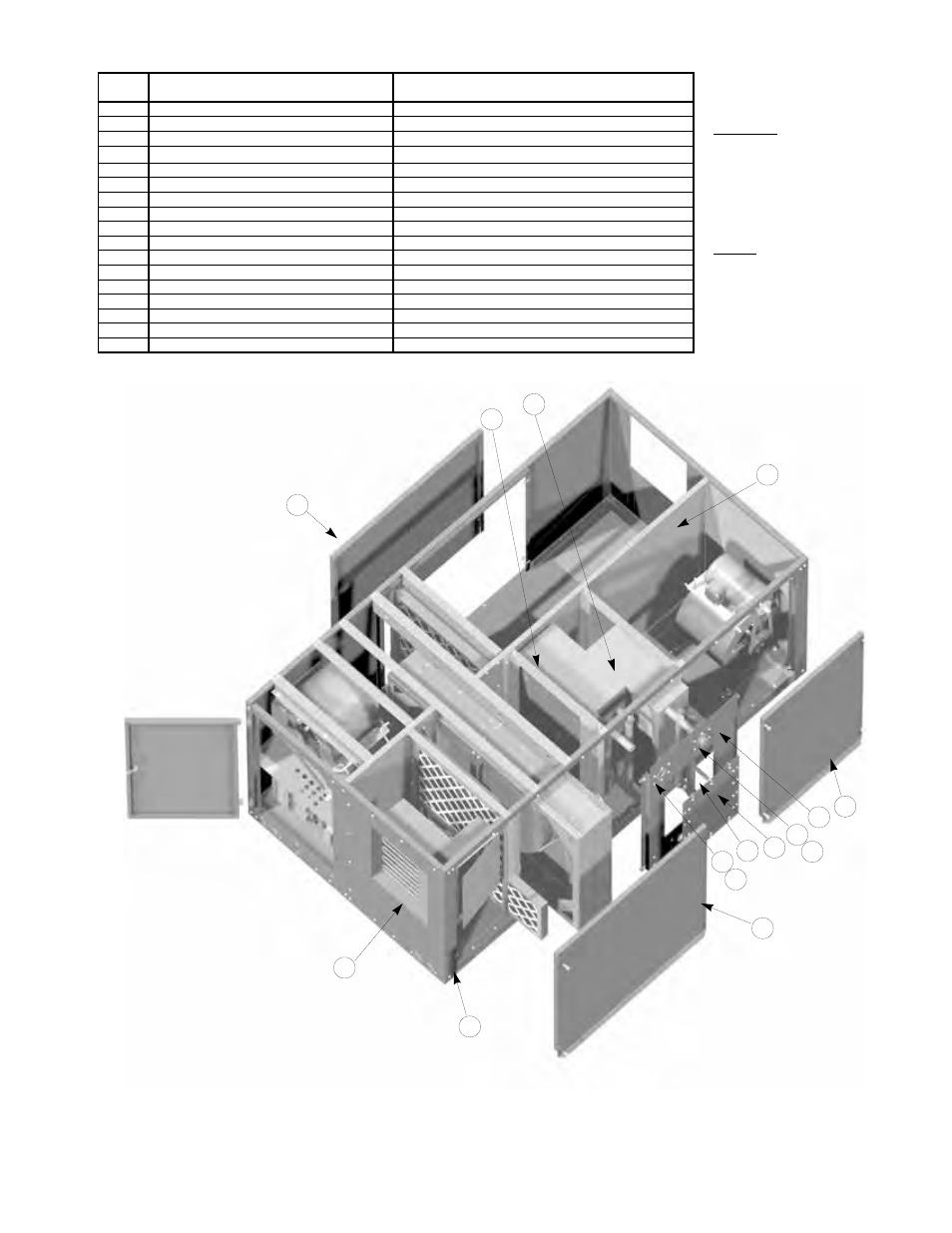

Belt Drive with Coil Option Parts List - ERV 1500 through ERV- 10000

Notes:

Parts List
The ERV and the ERV with Coils
Option share many of the same
parts. If the part is not called out
here, then refer to the Belt Drive
Parts List on the preceding page.

Filters
The ERV and the ERV with Coils
Option use the same filters. For
filter sizes refer to the filter size

table on the preceding page.

1

12

13

14

15

11

10

9

7

8

6

5

3

4

2
