Link belt information – COOK ERV User Manual

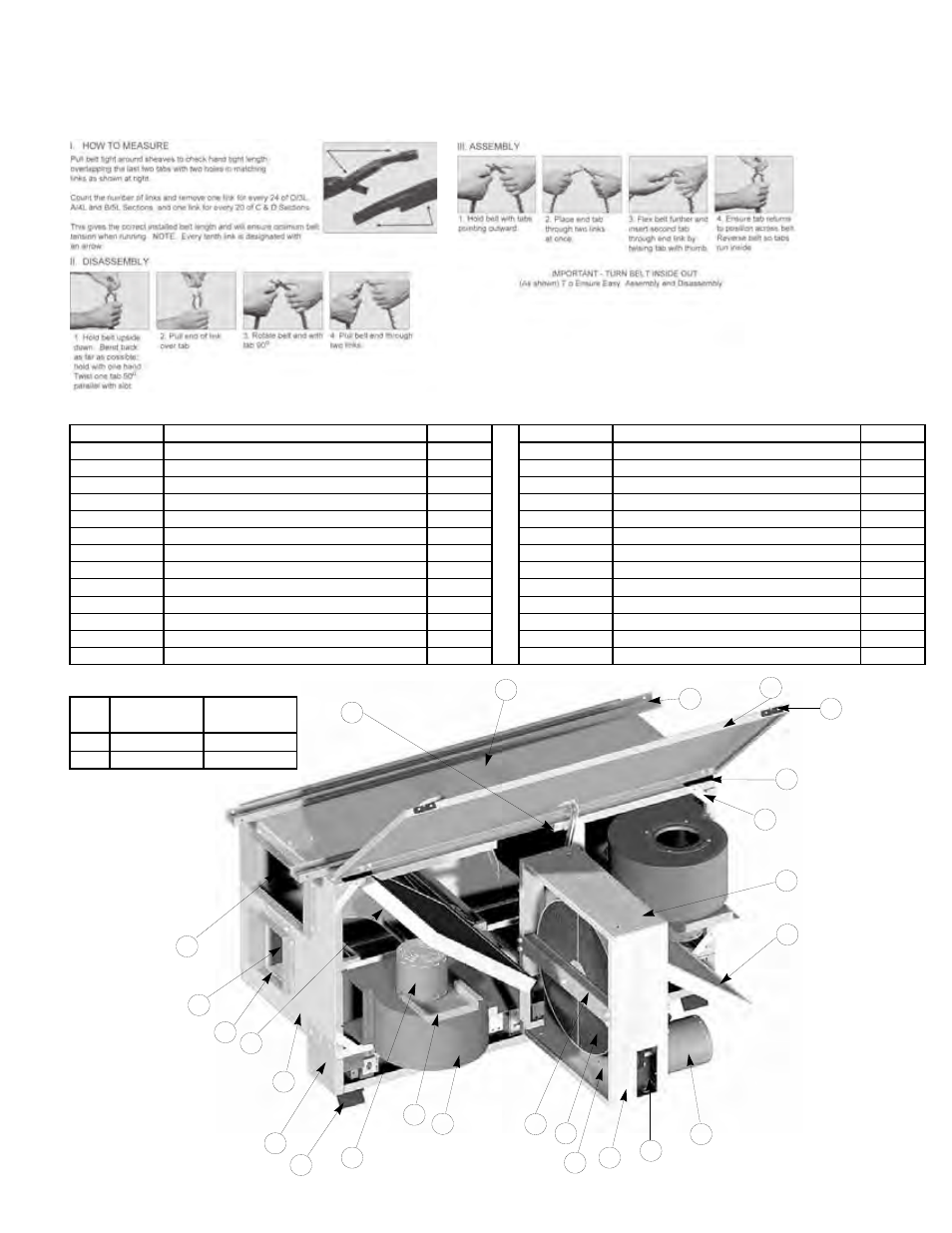

Page 13
13
Part Number
Description
Quantity
Part Number
Description
Quantity
1
Bearing Support
2
14
Outer Housing
1
2
Energy Recovery Wheel
1
15
Insulation Cover
4
3
Cassette Face
1
16
Intake Duct Flange
4
4
Cassette Assembly Top/Bottom Panel
2
17
Discharge Duct Flange
2
5
Wheel Drive Belt
1
18
Discharge Duct Flange
4
6
Energy Recovery Wheel Motor
1
19
Blockoff Panel
2
7
Filter
2
20
End Panel
2
8
Cassette Side Panel
2
21
Optional Low Voltage Control Panel
1
9
Gusset
4
22
Door Latch
2
10
Hinge
2
23
Blower Motor
2
11
Door Latch Keeper
2
24
Blower Housing Mounting Bracket
2
12
Access Door
1
25
Blower Housing
1
13
Hanging Channel
2
Filter Size
All dimensions in inches.
Size
Quantity
Filter
Size
500
2
16 x 20
1000
2
16 x 25
1
2
6
4
23
24
7
25
18
19
22
20
15
16
17
12
11
9
10
13
14
8
5
3
21
Link Belt Information
Dirty Filter Sensor Calibration
Dirty Filter Sensor - Senses fan compartment suction increase, which then actuates a dirty filter warning light. Sensor requires field calibration after initial
system start up. This is accomplished by shutting off the unit, placing a cardboard block-off in front of the filters to simulate dirty air filter condition. The filter
sensor is then adjusted until it actuates the warning light after the unit is restarted with block-off in place. The unit is then shut off and the block-off is
removed. Access panels are reinstalled and the unit is restarted. The actuator light should remain off until the filters become dirty.
Direct Drive Parts List - ERV-500, ERV-1000
